ECE 553: TESTING AND Bed-of-nails tester TESTABLE DESIGN OF - PDF document

12/9/2014 Overview: Boundary Scan Motivation ECE 553: TESTING AND Bed-of-nails tester TESTABLE DESIGN OF System view of boundary scan hardware Elementary scan cell Elementary scan cell DIGITAL SYSTEMS DIGITAL SYSTEMS Test

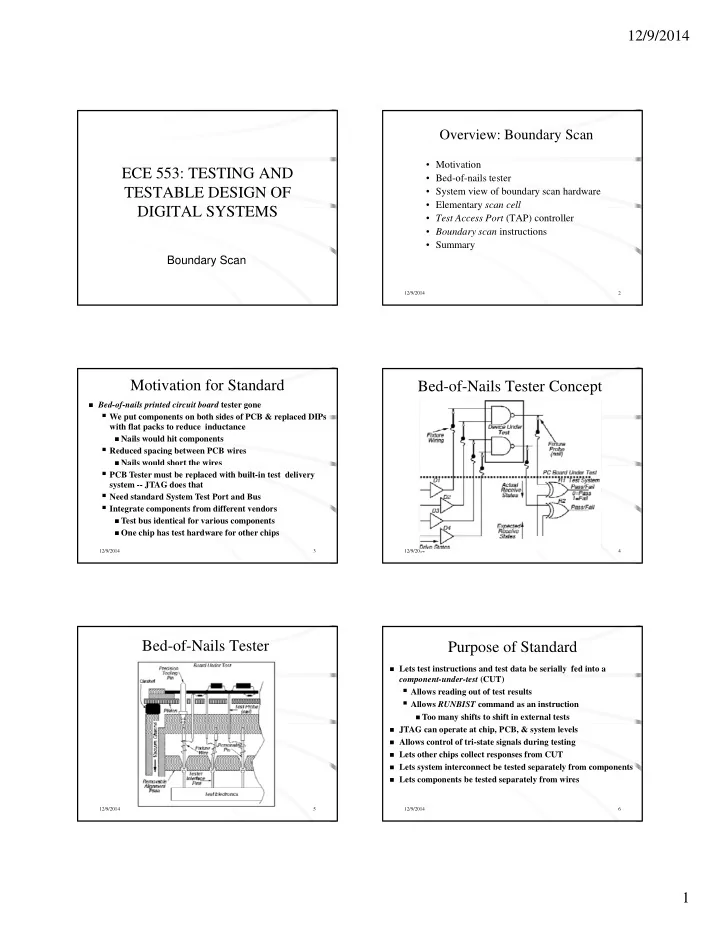

  1. 12/9/2014 Overview: Boundary Scan • Motivation ECE 553: TESTING AND • Bed-of-nails tester TESTABLE DESIGN OF • System view of boundary scan hardware • Elementary scan cell Elementary scan cell DIGITAL SYSTEMS DIGITAL SYSTEMS • Test Access Port (TAP) controller • Boundary scan instructions • Summary Boundary Scan 12/9/2014 2 Motivation for Standard Bed-of-Nails Tester Concept  Bed-of-nails printed circuit board tester gone  We put components on both sides of PCB & replaced DIPs with flat packs to reduce inductance  Nails would hit components  Reduced spacing between PCB wires  Nails would short the wires  PCB Tester must be replaced with built-in test delivery system -- JTAG does that  Need standard System Test Port and Bus  Integrate components from different vendors  Test bus identical for various components  One chip has test hardware for other chips 12/9/2014 3 12/9/2014 4 Bed-of-Nails Tester Purpose of Standard  Lets test instructions and test data be serially fed into a component-under-test (CUT)  Allows reading out of test results  Allows RUNBIST command as an instruction  Too many shifts to shift in external tests  JTAG can operate at chip, PCB, & system levels  Allows control of tri-state signals during testing  Lets other chips collect responses from CUT  Lets system interconnect be tested separately from components  Lets components be tested separately from wires 12/9/2014 5 12/9/2014 6 1

  2. 12/9/2014 System Test Logic Instruction Register Loading with JTAG 12/9/2014 7 12/9/2014 8 System View of Interconnect Boundary Scan Chain View 12/9/2014 9 12/9/2014 10 Elementary Boundary Scan Cell Serial Board / MCM Scan 12/9/2014 11 12/9/2014 12 2

  3. 12/9/2014 Independent Path Board / MCM Parallel Board / MCM Scan Scan 12/9/2014 13 12/9/2014 14 Tap Controller Signals Tap Controller State Diagram  Test Access Port (TAP) includes these signals:  Test Clock Input ( TCK ) -- Clock for test logic  Can run at different rate from system clock  Test Mode Select ( TMS ) -- Sw itches system from functional to test mode  Test Data Input ( TDI )  Test Data Input ( TDI ) -- Accepts serial test Accepts serial test data and instructions -- used to shift in vectors or one of many test instructions  Test Data Output ( TDO ) -- Serially shifts out test results captured in boundary scan chain (or device ID or other internal registers)  Test Reset ( TRST ) -- Optional asynchronous TAP controller reset 12/9/2014 15 12/9/2014 16 TAP Controller Power-Up Reset Tap Controller Timing Logic 12/9/2014 17 12/9/2014 18 3

  4. 12/9/2014 SAMPLE / PRELOAD Instruction -- SAMPLE Purpose: 1. Get snapshot of normal chip output signals 2. Put data on bound. scan chain before next instr. Boundary Scan Instructions Boundary Scan Instructions Boundary Scan Instructions Boundary Scan Instructions 12/9/2014 20 SAMPLE / PRELOAD Instruction -- EXTEST Instruction PRELOAD  Purpose: Test off-chip circuits and board- level interconnections 12/9/2014 21 12/9/2014 22 INTEST Instruction INTEST Instruction Clocks Purpose:  1. Shifts external test patterns onto component  Control of applied system clock during INTEST 2. External tester shifts component responses out  Use of TCK for on-chip system logic clock 12/9/2014 23 12/9/2014 24 4

  5. 12/9/2014 RUNBIST Instruction CLAMP Instruction  Purpose: Allow s you to issue BIST command to component through JTAG hardw are  Purpose: Forces component output signals Optional instruction to be driven by boundary-scan register   Bypasses the boundary scan chain by  Lets test logic control state of output pins using the one-bit Bypass Register 1. Can be determined by pin boundary scan cell y p y  Optional instruction 2. Can be forced into high impedance state  May have to add RESET hardw are to  BIST result (success or failure) can be left in control on-chip logic so that it does not boundary scan cell or internal cell get damaged (by shorting 0’s and 1’s onto  Shift out through boundary scan chain an internal bus, etc.) May leave chip pins in an indeterminate state  (reset required before normal operation resumes) 12/9/2014 25 12/9/2014 26 Device ID Register --JEDEC IDCODE Instruction Code  Purpose: Connects the component device identification register serially betw een TDI MSB LSB and TDO  In the Shift-DR TAP controller state  I 27 12 27 12 11 1 11 1 0 0 th Shift DR TAP t ll t t 31 28 Part Manufacturer ‘1’  Allow s board-level test controller or Version Number Identity external tester to read out component ID (4 bits) (16 bits) (11 bits) (1 bit)  Required w henever a JEDEC identification register is included in the design 12/9/2014 27 12/9/2014 28 USERCODE Instruction HIGHZ Instruction • Purpose: Intended for user-programmable components (FPGA’s, EEPROMs, etc.)  Purpose: Puts all component output pin signals into high-impedance state – Allows external tester to determine user programming of component  Control chip logic to avoid damage in this mode  May have to reset component after HIGHZ runs • Selects the device identification register as serially connected between TDI and TDO connected between TDI and TDO  Optional instruction p • User-programmable ID code loaded into device identification register – On rising TCK edge • Switches component test hardware to its system function • Required when Device ID register included on user- programmable component 12/9/2014 29 12/9/2014 30 5

  6. 12/9/2014 BYPASS Instruction Optional / Required Instructions  Purpose: Bypasses scan chain w ith 1-bit register Instruction Status BYPASS Mandatory CLAMP Optional EXTEST EXTEST Mandatory Mandatory HIGHZ Optional IDCODE Optional INTEST Optional RUNBIST Optional SAMPLE / PRELOAD Mandatory USERCODE Optional 12/9/2014 31 12/9/2014 32 Summary  Boundary Scan Standard has become absolutely essential --  No longer possible to test printed circuit boards w ith bed-of-nails tester  Not possible to test multi-chip modules at all w ithout it  Supports BIST, external testing w ith Automatic Test Equipment, and boundary scan chain reconfiguration as BIST pattern generator and response compacter  Now getting w idespread usage 12/9/2014 33 6
