Fabricated Geomembranes for EPS Geofoam Applications Steven F. - PowerPoint PPT Presentation

Fabricated Geomembranes for EPS Geofoam Applications Steven F. Bartlett, Ph.D., P.E. What is EPS Geofoam? What is EPS Geofoam? Expanded Polystyrene Light-weight cellar plastic (commonly called stryofoam) Molded in blocks used for

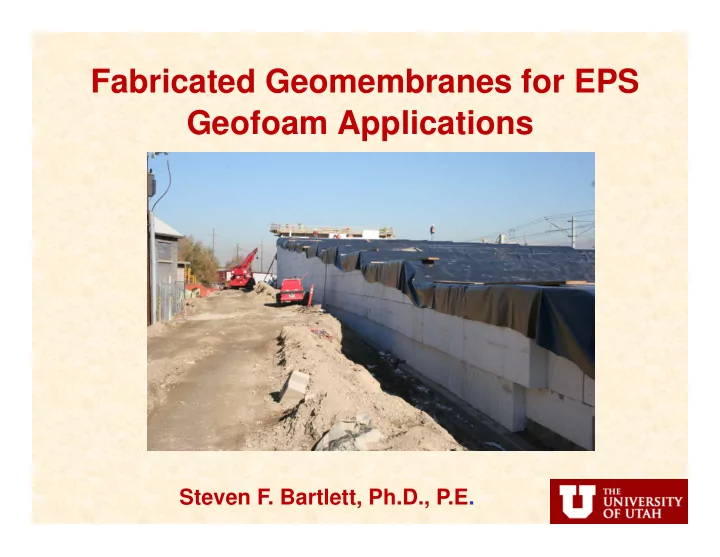

  1. Fabricated Geomembranes for EPS Geofoam Applications Steven F. Bartlett, Ph.D., P.E.

  2. What is EPS Geofoam? What is EPS Geofoam? • Expanded Polystyrene • Light-weight cellar plastic (commonly called stryofoam) • Molded in blocks used for construction purposes

  3. Geofoam Manufacturing Geofoam Manufacturing Courtesy of EPSFoamPro.com Courtesy of EPSFoamPro.com

  4. Block Molding of EPS Courtesy of Tri State Foam

  5. EPS Properties EPS Properties Courtesy EPS Alliance

  6. EPS Embankment UTA Light Rail – Salt Lake City, Utah SR 519 Project – Seattle, Washington

  7. Common Uses of EPS Geofoam Common Uses of EPS Geofoam • Reduce settlement to protect buried utilities and adjacent structures on soft ground • Improve stability and bearing capacity of embankments, embankments, • Improve stability landslides and cut slopes • Rapid construction in time critical areas

  8. Settlement Reduction and Buried Utilities Buried Utilities B Buried Pipeline i d Pi li NEW FILL NEW FILL Buried Pipeline Buried Pipeline Ruptured Pipeline

  9. Settlement Reduction and Buried Utilities Buried Utilities Utilities Geofoam Embankment from State St. to 200 W. Interstate I-80, Salt Lake City, Utah

  10. Improving Bearing Capacity and Stability

  11. Improve Bearing Capacity and Stability Reinforced Slope S il N il Soil Nails, Soil Anchors, or Other Reinforcement Reinforcement Cut slope or Cut slope or landslide

  12. Rapid Construction (Comparison of Construction Time) 35 (Weeks) Conventional 30 Geofoam 25 25 on Time 20 nstructio 15 10 Co 5 0 0 Preparation Settlement Total

  13. Design Considerations • Type Type • Moisture Absorption Moisture Absorption • Dimensions • Buoyancy • Density • Thermal Resistance • Compressive Strength C i St th • Differential Icing Diff ti l I i • Allowable Load & Creep • Chemical Attack • Interface Friction • Flammability • Stability of Internal Slope • Insect Infestation • Bedding Material & Compaction • Ultra Violet • Concentrated Loads Concentrated Loads • Degradation Degradation • Durability

  14. Design Considerations (Prevention of Chemical Attack) (Prevention of Chemical Attack) • Solvents that Dissolve Geofoam S l t th t Di l G f • Gasoline • Diesel Diesel • Other Petroleum Based Fuels • Organic Fluids • Protection Against Accidental Spills • Concrete Load Distribution Slab • Concrete Load Distribution Slab • Geomembrane • Fascia Panel Wall with Coping

  15. Prevention of Chemical Attack Prevention of Chemical Attack EPS geofoam can be damaged EPS geofoam can be damaged when exposed to hen e posed to certain hydrocarbon chemical and may need protection protection. Geomembranes compatible with EPS: • polypropylene • polyethylene • polyethylene • chlorosulphonated polythylene (CSPE) • ethylene interpolymer alloys (EIAs) y p y y ( )

  16. Prevention of Chemical Attack Rural Highway in Minnesota, Courtesy of MNDOT

  17. Prevention of Chemical Attack Protection of side slope, UTA Frontrunner, Corner Canyon

  18. Chemical Attack - Protective Barriers I 15 Design I-15 Design Concrete Pavement (35 cm ) Load Distribution Slab (15 cm - Reinforced) Geomembrane Petroleum Resistant Petroleum Resistant (3 component) for exposed side slope only only Tilt-up Panel Wall

  19. Chemical Attack - Protective Barriers I-15 Design • Tripolymer Geomembrane • Polyvinyl Chloride Polyvinyl Chloride • Ethylene Interpolymer Alloy • Polyurethane • 9 mm thickness minimum (total)

  20. Chemical Attack – Protective Barriers St Storm Drains and Utilities D i d Utiliti

  21. Geofoam Handbook

  22. Questions Questions
