Hidden Markov processes can explain complex sequencing rules of birdsong: A statistical analysis and neural network modeling Kentaro Katahira 1,2,3 , Kenta Suzuki 3,4 , Kazuo Okanoya 1,2,3 , and Masato Okada 1,2,3 1. JST ERATO, Okanoya Emotional

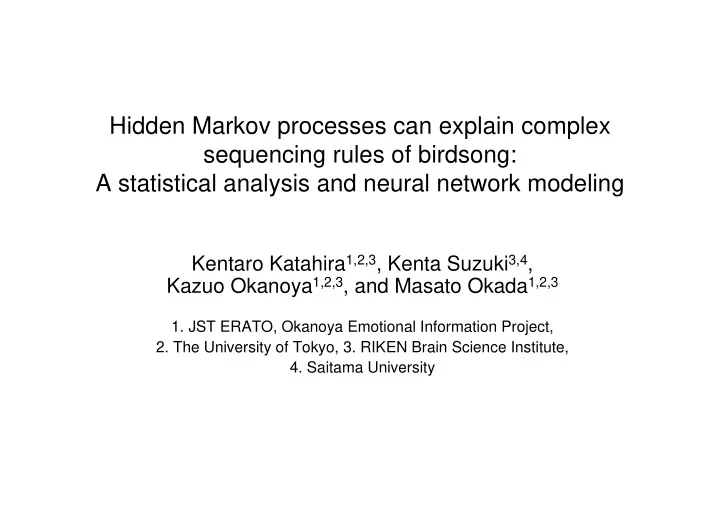

  1. Hidden Markov processes can explain complex sequencing rules of birdsong: A statistical analysis and neural network modeling Kentaro Katahira 1,2,3 , Kenta Suzuki 3,4 , Kazuo Okanoya 1,2,3 , and Masato Okada 1,2,3 1. JST ERATO, Okanoya Emotional Information Project, 2. The University of Tokyo, 3. RIKEN Brain Science Institute, 4. Saitama University

  2. Motivation - What are neural substrates for sequential behavior? Sequential behavior • Speech • Playing music • Dancing Perception Generation Learning

  3. Motivation - What are neural substrates for sequential behavior? Birdsong Syllable: a b c d Frequency Perception Generation Learning

  4. Outline 1. Introduction – Neural substrates of birdsong – Neural network models 2. Statistics of birdsong – Higher-order history dependency 3. Statistical models for birdsong 4. Discussion – Neural implementation – Future directions

  5. Neural activity pattern during singing (Zebra finch) Hahnloser, Kozhevnikov and Fee, Nature, 2002

  6. Feedforward chain hypothesis • Spikes propagate on feedforward chain network Li & Greenside, Phys. Rev. E, 2006. Jin, Ramazanoglu, & Seung, J. Comput. Neurosci. 2007. Experimental evidences: Long & Fee, Nature, 2008; Long, Jin & Fee, Nature, 2010 It is suitable for fixed sequences. But how about variable sequences?

  7. Song of Bengalese finch - Variable sequences including branching points

  8. Branching-chain hypothesis • Mutual inhibition between branching chains b c Neuron Index b inhibition a a a c Time (Jin, Phys Rev E, 2009)

  9. Limitation of branching-chain model • The transition is a simple Markov process – The present active chain depends only on the last active chain Does not affect Chain A Chain D Chain C ? Chain B Chain E Question: Syllable sequences of Bengalese finch songs are Markov processes?

  10. Outline 1. Introduction – Neural substrates of birdsong – Neural network models 2. Statistics of birdsong – Higher-order history dependency 3. Statistical models for birdsong 4. Discussion – Neural implementation – Future directions

  11. Test of (first order) Markov assumption Null hypothesis : The transition probability to next syllable does not depend on preceding syllable (Markov assumption) Prob. 0.495 c a b d 0.408 b 0.097 e χ 2 goodness-of-fit test Prob. (For the case “a” precedes “b”) 0.385 c a b d 0.422 Significant difference → Second-order history dependency b e 0.193

  12. Result We found more than one significant second-order history dependency in all 16 birds. ( p < 0.01 with Bonferroni correction) a < 0.01 a 0.13 a a b c b c < 0.01 0.55 c c d 0.99 d 0.31 χ 2 (2) = 187.49, p < 0.0001

  13. Then,… • The branching-chain model is incorrect? B inhibition A C ?

  14. Two possible mechanism for history dependency Hypothesis 1: Chain transition with higher-order dependency Chain 4 Chain 1 Chain 2 Chain 3 b c 4 a b d x 10 a b c d 2 1.5 Freq. (Hz) 1 0.5 0 1.1 1.2 1.3 1.4 1.5 1.6 Hypothesis 2: Time (sec) Many-to-one mapping from chains to syllables Chain2 Chain3 Chain4 Chain5 Chain1 c d a b (Katahira, Okanoya and Okada, Biol. Cybern. 2007)

  15. However… • The neural activity data from HVC of singing Bengalese finches are not available. 4 x 10 2 1.5 Freq. (Hz) 1 0.5 0 1.1 1.2 1.3 1.4 1.5 1.6 Time (sec) HVC HVC ? Zebra finch Bengalese finch • We examined two hypotheses based on song data by using statistical models.

  16. Outline 1. Introduction – Neural substrates of birdsong – Neural network models 2. Statistics of birdsong – Higher-order history dependency 3. Statistical models for birdsong 4. Discussion – Neural implementation – Future directions

  17. Feature extraction - Auditory features ・ ・ ・ x 1 x 2 Spectral entropy (z-score) Auditory features •Spectral entropy •Duration •Mean frequency Duration (z-score) (c.f. Tchernichovski et al. 2000)

  18. Hidden Markov Model (HMM) a 22 a 11 a 33 a 23 a 12 State 3 ・ ・ ・ State 1 State 2 a 24 State 4 ・ ・ ・ a 41 Hidden Observable

  19. State transition dynamics in HMM 1 st order HMM: 2 nd order HMM: 0 th order HMM (Gaussian mixture):

  20. Relationship between two hypotheses and statistical models Hypothesis 1: → 2 nd order-HMM Chain transition with higher-order dependency Chain 2 Chain 3 Chain 4 Chain 1 a b c d Hypothesis 2: → 1 st order-HMM Many-to-one mapping from chains to syllables Chain1 Chain2 Chain3 Chain4 Chain5 c a b d

  21. Bayesian model selection Given data (auditory features): Model structure •L : Markov order (0,1,2) •K : the number of hidden states Model posterior : Marginal likelihood: ( → difficult to compute!) ( : model parameter set) Approximation Lower bound (variational free energy) (can be computed by variational Bayes method)

  22. Result – model selection (one bird) “Best model structure” 1 st order HMM log-marginal likelihood 2 nd order HMM Lower bound on Better model 0 th order HMM Number of states, K •With small number of states → 2nd order HMM •With large number of states → 1st order HMM

  23. Results – model selection, cross validation (averages over 16 birds) Predictive likelihood Lower bound on log-marginal likelihood (cross validation) 1 st order HMM 1 st order HMM 2 nd order HMM 2 nd order HMM Bound (z-score) 0 th order HMM 0 th order HMM

  24. HMM learns many-to-one mapping Many-to-one mapping from the states to a syllable “b” (Similar results were obtained for 30 syllables of the 54 syllables where significant second- order dependency was found)

  25. Outline 1. Introduction – Neural substrates of birdsong – Neural network models 2. Statisticss of birdsong – Higher-order history dependency 3. Statistical models for birdsong 4. Discussion – Neural implementation – Future directions

  26. Summary of results •Bengalese finch songs have at least second-order history dependency. 4 x 10 c a b b d 2 1.5 Freq. (Hz) 1 0.5 0 1.1 1.2 1.3 1.4 1.5 1.6 Time (sec) State transition with higher-order Many-to-one mapping – 1 st HMM dependency - 2 nd -order HMM state1 state2 state3 state4 state1 state2 state3 state4 state5 a b c d a b c d This mechanism is sufficient for Bengalese finch song

  27. Mapping onto neuroanatomy • HVC - hidden state (branch ⇔ state ) • RA - auditory features of each syllable (Katahira, Okanoya and Okada, 2007)

  28. Future directions (ongoing research) • How the brain can learn this representation? – Analysis of development of song from a juvenile period. – Developing a network model with synaptic plasticity for learning the many-to-one mapping. (e.g., Doya & Sejnowski, NIPS, 1995; Troyer & Doupe, J Neuropysiol, 2000; Fiete, Fee & Seung, J Neuropysiol,2007) • Applying HMMs to spike data recorded from songbird (Katahira, Nishikawa, Okanoya & Okada, Neural Comput, 2010)

  29. Overbiew of our approach Behavior 4 x 10 2 1.5 Freq. (Hz) 1 0.5 0 1.1 1.2 1.3 1.4 1.5 1.6 Time (sec) Parameter fitting, Model selection Constraints Neural network Statistical model model Support, Refinement Mapping Constraints Anatomy, Physiology
