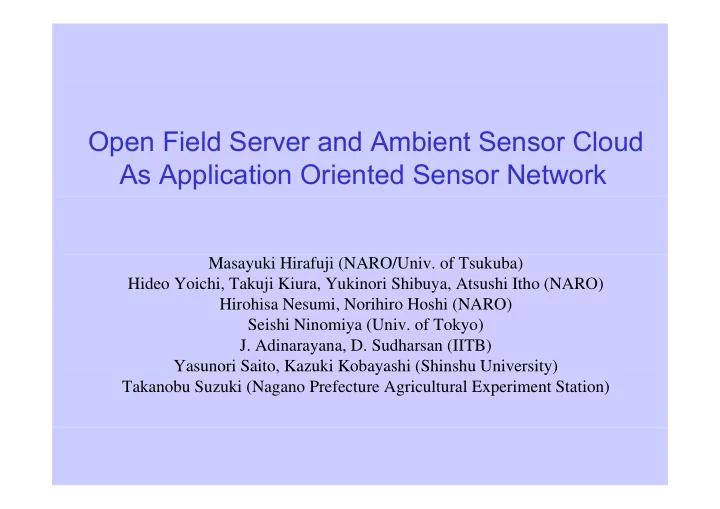

Open Field Server and Ambient Sensor Cloud Open Field Server and Ambient Sensor Cloud As Application Oriented Sensor Network Masayuki Hirafuji (NARO/Univ. of Tsukuba) Hideo Yoichi, Takuji Kiura, Yukinori Shibuya, Atsushi Itho (NARO) Hirohisa


  1. Open Field Server and Ambient Sensor Cloud Open Field Server and Ambient Sensor Cloud As Application Oriented Sensor Network Masayuki Hirafuji (NARO/Univ. of Tsukuba) Hideo Yoichi, Takuji Kiura, Yukinori Shibuya, Atsushi Itho (NARO) Hirohisa Nesumi, Norihiro Hoshi (NARO) , ( ) Seishi Ninomiya (Univ. of Tokyo) J. Adinarayana, D. Sudharsan (IITB) Yasunori Saito, Kazuki Kobayashi (Shinshu University) Yasunori Saito, Kazuki Kobayashi (Shinshu University) Takanobu Suzuki (Nagano Prefecture Agricultural Experiment Station)

  2. Architecture of Field Server Architecture of Field Server 1. All-in-one & multiple functions 2 Wi Fi based sensor net ork 2. Wi-Fi based sensor network 3. HTTP only . 4. Agent collects data from Field Servers.

  3. Wi-Fi 3G-routers in Field Servers In India In Japan

  4. Wi-Fi clients share 3G connection. Wi Fi clients share 3G connection. 3G Wi-Fi hotspot

  5. Next Stage g 1. 3G became available at almost places in the world. 2 Power should be provided by solar energy for 2. Power should be provided by solar energy for many objectives. 3. Cloud services became useful for data collection and data sharing. g 4. Methods to develop hardware & firmware are changing dramatically for IT revolution and changing dramatically for IT-revolution and open-source technology.

  6. Arduino + Ethernet Shield Arduino Ethernet Shield Arduino: Open-source CPU board Field Server Engine Ethernet Shield: Ethernet add-on board Ethernet add on board

  7. Arduino & Ethernet Shield Arduino & Ethernet Shield Ethernet Shield’s power is provided by Arduino. High-efficiency power supply power controller relays and connector for power supply, power controller, relays and connector for external devices are indispensible.

  8. Field Twitter Twitter Twitter Users Fi ld S Field Servers

  9. The First “Field Twitter” in India

  10. Open-FS (Open Field Server)

  11. Mother Board Mother Board to Control Power and External Devices On/Off Power of Ethernet Shield On/Off Arduino Power of Wi-Fi/3G router Solenoid Valve for Irrigation Open/Close

  12. Mother board Mother board to carry Arduino & Ethernet Shield

  13. A d i Arduino & Ethernet Shield on The Mother Board & Eth t Shi ld Th M th B d Arduino Ethernet Shield

  14. O Option: Geiger Counter Shield i G i C Shi ld

  15. O Option: VGA Color Camera i VGA C l C

  16. Open-FS (Open Field Server)

  17. A Ambient Sensor Cloud bi t S Cl d As Application Oriented As Application Oriented Sensor Network Sensor Network

  18. Large-Scale Sensor Network Large Scale Sensor Network • Calibration Center for Remote Sensing • Precise position sensing by sensor fusion: Wi-Fi, Camera, Sonar, Laser etc. • Robot farming • Whole ecosystem sensing ( physiome , high-throughput phenotyping )

  19. Calibration by The Weather Station Calibration by The Weather Station Air-temperature, Humidity, Soil moisture, Soil temperature, Solar radiation and so on are measured.

  20. “Free 3G”: Amazon provides free worldwide 3G p web browsing since 2010 Aug. Agreements with mobile networks in “over 100 ″ countries. The agreement allows Kindle owners to use 3G networks g for free anywhere.

  21. Ambient Sensor Cloud Cloud Services Twitter, Twilog, Twitpic, Flickr, Google app engine Fire Wall Fire Wall Fire Wall Yi ld f Yield forecast t Irrigation control Disease diagnosis Application Agents Users (Application Bots) Fi ld T itt Field Twitters

  22. Next Challenges g 1. Free Communication services: Amazon’s 1. Free Communication services: Amazon s “Free 3G” made Kindle easy to use. 2. Free monitoring services: data collected by 2 F i i i d ll d b sensor networks can be shared on cloud services. 3 Free apps services: business model to make 3. Free apps services: business model to make data collection and apps. Almost all users are not interested in techs but interested in t i t t d i t h b t i t t d i profit by using apps .

  23. Conclusions 1. Open-FS was developed by using open source hardware/software and a mother board. board. 2. Amazon’s “Free 3G” shows a future application combining sensor networks and li ti bi i t k d cloud services. 3. A concept of “Ambient Sensor Cloud” was proposed -- Apps using sensor-network data proposed. -- Apps using sensor-network data at any points should be available on cloud for free.

  24. A k Acknowledgment l d t This research has been carried out in the SCOPE (Strategic Information and Communication Promotion (S i I f i d C i i P i Programme) project (102304002) supported by MIC (Mi i (Ministry of Internal Affairs and Communications) in f I l Aff i d C i i ) i Japan.

  25. Some experiments were executed by • Strategic Japanese-Indian Cooperative Programme Strategic Japanese Indian Cooperative Programme on “Multidisciplinary Research Field, which combines Information and Communications combines Information and Communications Technology with Other Fields” (Geo-ICT and Sensor Network based Decision Support Systems in Sensor Network based Decision Support Systems in Agriculture and Environment Assessment) • NARO’s research project for citrus fruits • NARO s research project for citrus fruits • RECCA (Research Program on Climate Change Ad Adaptation) t ti )
