LINK-PP LI PP is a professional and experienced manufacturer of telecom and networking components and Modules LINK-PP Established in 1997,is worldwide leader in magnetic telecom and networking components design and manufacturing. With an extensive

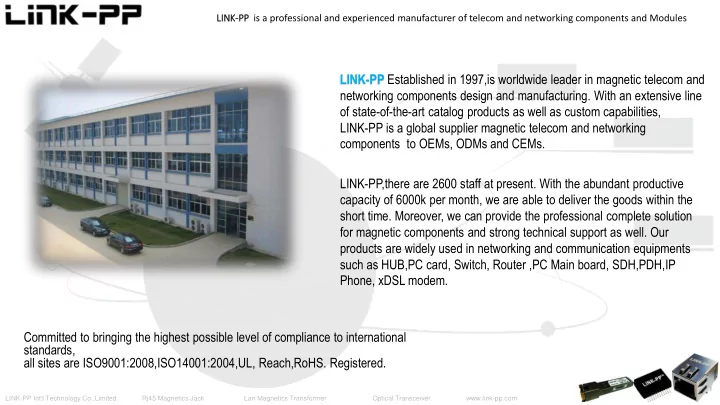

  1. LINK-PP LI PP is a professional and experienced manufacturer of telecom and networking components and Modules LINK-PP Established in 1997,is worldwide leader in magnetic telecom and networking components design and manufacturing. With an extensive line of state-of-the-art catalog products as well as custom capabilities, LINK-PP is a global supplier magnetic telecom and networking components to OEMs, ODMs and CEMs. LINK-PP,there are 2600 staff at present. With the abundant productive capacity of 6000k per month, we are able to deliver the goods within the short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card, Switch, Router ,PC Main board, SDH,PDH,IP Phone, xDSL modem. Committed to bringing the highest possible level of compliance to international standards, all sites are ISO9001:2008,ISO14001:2004,UL, Reach,RoHS. Registered. LINK-PP Int'l Technology Co.,Limited. Rj45 Magnetics Jack Lan Magnetics Transformer Optical Transceiver www.link-pp.com

  2. • 1994 LINK-PP INT'L TECHNOLOGY CO., LIMITED was Pre-founded in Shenzhen, Guangdong ,China. Start Developing the discrete Lan Transformers,T1/E1 and x DSL Line Transformer. • 1997 Established production base in Shenzhen, start producing the discrete Lan Transformers,T1/E1 and x DSL Line Transformer. • 1998 Develop RJ45 connector with Lan transformers. • 2002 Develop SMT and Vertical RJ45 connector with magnetic. • 2003 Established production base in XiangTan ,Hunan Province. • 2004 Established production base in Huangshi ,Hubei Province. • 2011 Established production base in Mianyang ,Sichuan Province • 2012 LINK-PP HQ Moved from Shenzhen to Huizhou City • 2015 Start developing Optical Transceivers • 2016 Prepare to built The Fifth Production Line For Optical Transceivers in Hunan Province LINK-PP Int'l Technology Co.,Limited. Rj45 Magnetics Jack Lan Magnetics Transformer Optical Transceiver www.link-pp.com

  3. Main Products ① 10/100/1000/10G Lan Magnetics Transformer Module ② RJ45 Connector with 10/100/1000/10G Magnetic ③ T1/E1,T3/DS3/E3/STS-1 Interface Line Transformer ④ Transceivers and Transponders for Datacom and Telecom Applications Main Products ① .45% ③ .10% ④ .5% ① ② ③ ④ ② .40% LINK-PP Int'l Technology Co.,Limited. Rj45 Magnetics Jack Lan Magnetics Transformer Optical Transceiver www.link-pp.com

  4. Others South America Market Structure(2015) 2% 8% North America Latin America Europe 7% China North America Asia 21% Latin America South America Others Asia 18% Europe 24% China 20% LINK-PP Int'l Technology Co.,Limited. Rj45 Magnetics Jack Lan Magnetics Transformer Optical Transceiver www.link-pp.com

  5. Company Status We have built three mass production Lines bases in Hubei,Hunan,Sichuan of China. ----With more than 2400 people at present in our Facilities Hubei Sichuan Hunan HuiZhou ★ Shenzhen

  6. ROHS and Social Responsibility • All of our products are ROHS compliants ; • All of our products have been certificated by UL ; • We adopt and promote energy saving and efficient production technology ; • We have passed the ISO14001: 2004 Environmental Management System Certification; • Actively participate in public welfare .

  7. Quality and Innovation In Ethernet Connectivity Optional Modules Key Words 90 Degree / 180 Degree 1-1 > Single Port Rj45 Jacks : 1x1 Right Angle /Vertical 1-2 > Harmonica Ganged Rj45 Jacks: 1xN(2,4,5,6,8) 8P8C / 10P10C.... 1-3 > Stacked Rj Jacks: 2xN(1,2,3,4,6,8) IEEE802.3af / IEEE802.3at (With or without Magnetics) Low Profile Rj45 (With or Without POE/POE+) USB Conn Rj45 / Stacked Rj45 (With or Without LEDs Indicator) (With or Without EMI-Tabs) SMT/ THT (Right angle or Vertical) Through-hole Reflow,THR/pin in paste,PIP (THT or SMD) Rj45 with Surge/TVS/Rectifier ...... .... 2-1> Single Port Transformer Module POE Magnetics 2-2> Multi Port Transformer Module: Dual/Quad Isolation Magnetics / Discrete Transformer /XFMR (With or Without POE/POE+) .... (THT or SMD) Optical Transceiver Module ...... Service 3-1> SFP/SFP+ 3-2> QSFP+/QSFP28/SFP28 ODM & OEM to customers' new projects 3-3> CFP/CXP/XFP/SFF Compatible to Other Brands=> Pulse/TE/Befuse/Wurth-Midcom/Halo... 3-4> 1X9 Free Samples ...... 100% Tested...

  8. Typical Models

  9. Application CONSUMER SECURITY MEDICAL NETWORKING TELECOM/DATACOM Digital Cameras Control Panels Diagnostic Data Center Switching Set-Top Boxes Video Recorders Fire Alarm Zones Surgical Equipment Routers Home Hub GPS-Navigation Hand Held Devices Patient Monitoring Servers & Server I/O Cell Phones Portable Media Players Hand Held Devices Server Blades Satellites Game Controllers Surgical Generators 100G Core Switches Bay Stations Projectors In-Home Dialysis NIC Cards PBX LCD Televisions 3U Top Rack & End of Rack Optical Networking Hand Held Devices 40G Firewall Hand Held Devices Patch Panels & Wiring Closet

  10. Main Customers We are providing businesses to the below customer now. 

  11. LPJ0011BBNL Famous Projects Supported By LINK-PP Customer :Texas Instruments Project Name : BeagleBone Black Board www.ti.com/tool/beaglebk#0 Feature I. Ethernet Specification : 10/100mbps II. Standard :IEEE 802.3u III. LED Indicators : Green-Yellow IV. Dimensions (L x W x H) : 21.25mmx15.90mmx13.40mm V. Latch-Down LINK-PP Int'l Technology Co.,Limited. Rj45 Magnetics Jack Lan Magnetics Transformer Optical Transceiver www.link-pp.com

  12. Famous Projects Supported By LINK-PP LPJ16183A107NL Customer :Texas Instruments Project Name : TMDSICE3359 board www.ti.com/tool/TIDEP0002 Feature I. Ethernet Port : 2x 10/100mbps II. Standard : IEEE 802.3u III. LED Indicators : Green-Orange IV. Dimensions (L x W x H): 21.25mmx15.90mmx13.50mm V. Latch Up LINK-PP Int'l Technology Co.,Limited. Rj45 Magnetics Jack Lan Magnetics Transformer Optical Transceiver www.link-pp.com

  13. Famous Projects Supported By LINK-PP LPJG16314A4NL & LPJ16183A28NL Customer :Texas Instruments Project Name : TIDEP0039 board www.ti.com/tool/tidep0039# Feature I. Ethernet Port : 2x 10/100mbps II. Standard : IEEE 802.3u III. LED Indicators : Green-Yellow <Resistors> IV. Dimensions (L x W x H): 21.25mmx15.90mmx13.50mm V. Latch Up I. Ethernet Port : 1x 10/100/1000mbps II. Standard : IEEE 802.3ab III. LED Indicators : Yellow&Green-Yellow&Green IV. Dimensions (L x W x H): 21.25mmx15.90mmx13.50mm V. Latch Up LINK-PP Int'l Technology Co.,Limited. Rj45 Magnetics Jack Lan Magnetics Transformer Optical Transceiver www.link-pp.com

  14. Famous Projects Supported By LINK-PP LPJG16314A4NL Customer : Intel Corporation Project Name : MinnowBoardMAX www.intel.com/content/www/us/en/embedded/products/bay-trail/atom-e3800-minnowboard-max-platform-guide.html Feature I. Ethernet Specification :10/100/1000Mbps II. Standard : IEEE 802.3ab III. LED Indicators : Green-Yellow&Green-Yellow IV. Dimensions (L x W x H): 21.25mmx15.90mmx13.50mm V. Latch Up LINK-PP Int'l Technology Co.,Limited. Rj45 Magnetics Jack Lan Magnetics Transformer Optical Transceiver www.link-pp.com

  15. The End , Thanks ! LINK-PP Int'l Technology Co.,Limited. Rj45 Magnetics Jack Lan Magnetics Transformer Optical Transceiver www.link-pp.com
