ECE 390 Independent Study Formula Electric Vehicle John Gehrig - PowerPoint PPT Presentation

ECE 390 Independent Study Formula Electric Vehicle John Gehrig Fall 2015 Project Overview Fomula Hybrid Vehicle Competition Full Electric Vehicle Cooperation Mechanical Engineering Department Deliver Tractive System High

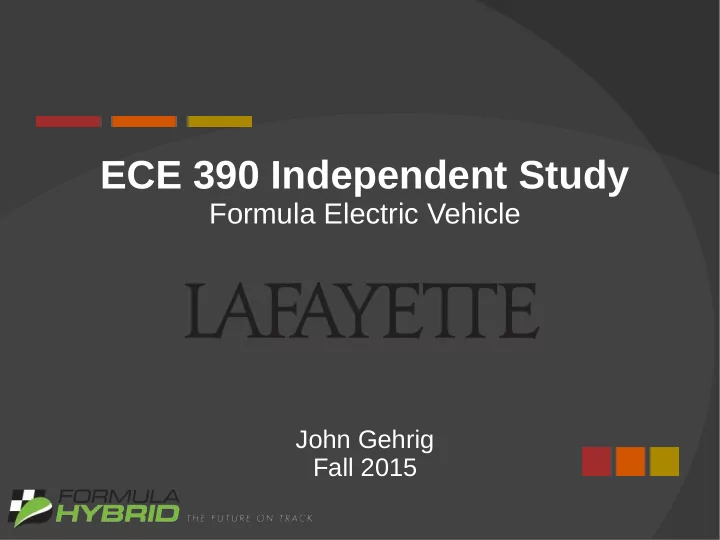

  1. ECE 390 Independent Study Formula Electric Vehicle John Gehrig Fall 2015

  2. Project Overview ● Fomula Hybrid Vehicle Competition – Full Electric Vehicle – Cooperation Mechanical Engineering Department ● Deliver Tractive System – High Voltage Battery – Low Voltage Battery – System Wiring – Electric Motor

  3. Objectives ● Provide Framework for CAN Communication – PACMAN Computer – Embedded Software/Hardware ● Improve on 2015 Design Efforts ● System Documentation – AMS Boards – PACMAN – Pack Wiring – CAN Bus

  4. Design Requirements ● Formula SAE Hybrid Rules 2016 http://www.formula-hybrid.org/wp-content/uploads/2016-Formula-Hybrid-Rules-Rev-0.pdf – ● Lafayette 2015 Statement of Work http://sites.lafayette.edu/ece492-sp15/files/2015/02/LFEV-Y3-2015-01-20.pdf –

  5. System Overivew MAGNA POWER SUPPLY HUFF DYNOMOMETER REST RACK MOUNTED COMPUTER REMOTE COMPUTER API SCPI USB SCPI RS232 TCP / IP CAN BUS JGB CAN CAN ISOLATO ISOLATOR R BATTERY PACK MOTOR CONTROLLER SYSTEM PACMAN AMS 1 AMS 7

  6. CAN Communication

  7. CAN Communication

  8. PACMAN Hardware ● Pack Mangement Computer System ● Isolated Power ● Control Software – Charge Control – AMS Communication – CAN Communication ● Hardware Watchdog

  9. Past PACMAN Hardware ● No CAN Bus ● Linux Kernel 2.6.36 – SocketCAN (2.6.25) – Complicated ● Power Consumption ● High Cost – $238 Board – $50+ BOB

  10. PACMAN Software ● Atmel AVR Microcontroller – Low Power – Integrated CAN Communication – Open Source Toolchain – Atmel Software Framework ● Real Time Operating System (AtomThreads) ● Focus on Hardware Abstraction Layer

  11. PACMAN Software ● GNU Make ● GCC (Atmel AVR Port) – Arduino Toolchain – Distribution Repositories – Build From Scratch ● Documented with Doxygen ● VirtualBox Build Environment

  12. Software Organization ● Atmel ASF ● Exhuberent Ctags ● AVRDude ● Library Support ● Mercurial Repository – Atlassian BitBucket – Facebook

  13. RTOS Task Control /** * @brief Task Description Structure */ typedef struct { ATOM_TCB *tcb_ptr; uint8_t priority; void (*entry_point)( uint32_t ); void (*init_func)( uint32_t ); uint32_t entry_param; void *stack_top; uint32_t stack_size; } ATOM_TASK; // GUI and user input task {&task_gui_tcb, 16 , task_gui, task_gui_init, 0 , &task_gui_stack[TASK_GUI_SIZE- 1 ], TASK_GUI_SIZE},

  14. GPIO Control /** * @brief GPIO Pin Data Structure */ typedef struct { volatile uint8_t * port; volatile uint8_t * ddr; volatile uint8_t * pin; uint8_t pin_num; } GPIO_PIN; /** * @brief GPIO Pin Digital Output */ static inline void pinWrite (GPIO_PIN pin, uint8_t value) { *pin.port = (*pin.port & ~_BV(pin.pin_num)) | (value << pin.pin_num); }

  15. AMS API // Clear AMS Bypass Mode void ams_reset_bypass ( uint8_t addr) { unsigned char msg[ 2 ] = { (addr << 1 ), // device address (write mode) RESET_BY, // device command }; // take mutex, wait until available atomMutexGet(&i2c_mutex, 0 ); // send data on i2c bus TWI_Start_Transceiver_With_Data(&msg[ 0 ], sizeof (msg)); // release mutex atomMutexPut(&i2c_mutex); }

  16. State of Charge Algorithm ● How can battery SOC be measured? ● Coulomb Counter – Initial Condition must be ACCURATE – Unstable system (measurement error) ● Voltage Model – Noisy, requires low pass filter – Susceptible to transient current spikes

  17. State of Charge Algorithm ● Mixed Mode Charge Estimation Algorithm – Stable System – Requires NO initial condition – Fast transient response – Low Noise ● IEEE Paper (2009) – Control Theory Codeca, F.; Savaresi, S.M.; Manzoni, V., "The mix estimation algorithm for battery State-of-Charge estimator- Analysis of the sensitivity to measurement errors.," in Decision and Control, 2009 held jointly with the 2009 28th Chinese Control Conference. CDC/CCC 2009. Proceedings of the 48th IEEE Conference on , vol., no., pp.8083-8088, 15-18 Dec. 2009

  18. State of Charge Algorithm

  19. State of Charge Algorithm

  20. State of Charge Algorithm Simulink Model (Lookup Table) Simulink Results Sample Model Response LifePO4 Datasheet

  21. AMS ● No, the AMS Firmware wasnt fixed… – Incorrect Bypass Timeout – One Monolithic File ~1000 lines – Power Consumption ● Modularization of Code Base ● Watchdog Sleep – Reduces Power Consumption (< 50 %) – Watchdog Timer Ticks Every ¼ Second

  22. AMS Software ● Changed TIMER1 to WDT – TIMER1 does not run in sleep mode ● All I2C calls are function based ● VirtualBox Build Environment – Repeatable, Consistent – PicKit3 Doesn't work in latest MPLAB Version ● Optimizer Issues?

  23. AMS Software int main ( void ){ // initialize the slave PIC, enable interrupts setup(); // enable global and peripheral interrupts INTCONbits.PEIE = 1 ; INTCONbits.GIE = 1 ; // save power while waiting for interrupts while ( 1 ) { // place PIC in sleep mode SLEEP(); // WDT wakeup occured, handle event_wdt(); } return 0 ; }

  24. AMS Verification ● Automate AMS Testing – 28+ AMS Boards – Time Saving – Machine Shop ● Thorough Verification ● Validate Software ● Arduino Controlled – Easy to Build – Simple, Low Cost

  25. AMS Test Port EV 3.7.10 AMS Test Port A break-out test connector must be provided inside the accumulator enclosure for AMS voltage testing. This port allows testing of the AMS by substituting a test box voltage for a measured cell voltage. Currently Design is Incompliant

  26. Pack Wiring & Cabling ● Reduce Wiring Complexity ● Replace Screw Terminals ● Specify Connector Pinouts ● Buy Proper Wires, Cables ● Simply Wiring Diagram

  27. Deutsch DT Connectors ● Huff Dynomometer ● Waterproof ● Strain Relief ● Ease of Assembly ● Professional ● Industry Standard

  28. LFEV Pack Connectors GLV CONNECTOR 1 – CANH (YELLOW) 6 – CANL (GREEN) 2 - GND(BLACK) 5 - +12V (RED) 3 - RSVD (BROWN) 4 – RSVD (WHITE) SAFETY LOOP CONNECTOR 1 – GND (BLACK) 4 – +24V (RED) 2 – SLOOP_A (WHITE) 3 – SLOOP_B (BROWN) AMS/I2C CONNECTOR 1 – RST_NEG (PACK-) 6 – RST_POS 2 – SDA_HV 5 – SCL_HV 3 – SVDD (+5V) 4 – SVSS (PACK-)

  29. LFEV Pack Connectors 20 Gage Wire

  30. Demonstration System ● 3D CAD Model – Creo Parametric – AutoCAD ● Laser Cut Acrylic – New Laser Cutter ● Battery Pack Model ● Bench Power Supply

  31. Demonstration System

  32. Q UESTIONS & C OMMENTS
