Spectral and colorimetric measures in cultural Heritage Universidad Complutense de Madrid Daniel Vzquez Molin UNIVERSIDAD COMPLUTENSE DE MADRID OPTICS AND OPTOMETRY FACULTY Light & Color Group Main research lines : 1.- Spectral data

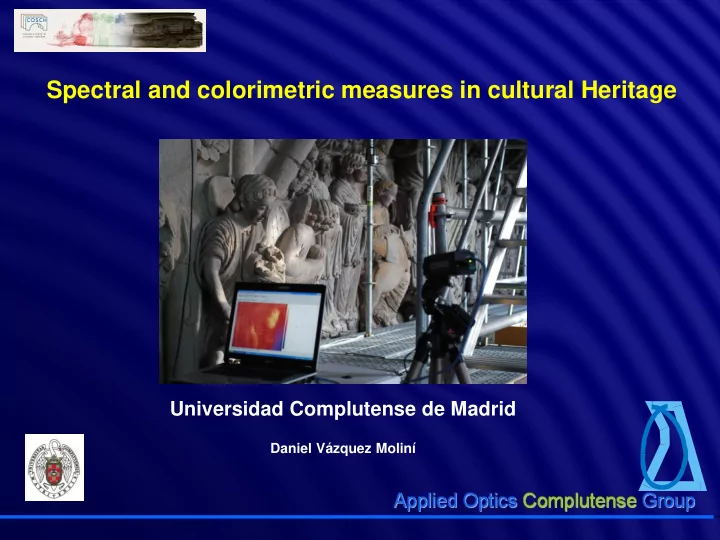

  1. Spectral and colorimetric measures in cultural Heritage Universidad Complutense de Madrid Daniel Vázquez Moliní

  2. UNIVERSIDAD COMPLUTENSE DE MADRID OPTICS AND OPTOMETRY FACULTY Light & Color Group

  3. Main research lines : 1.- Spectral data adquisition 2.- Analysis and processing 3.- Applications

  4. Nature is a continue change under light

  5. Now Future Perception Lighting Preservation

  6. Cave of the baths (Córdoba - Spain) 2006

  7. 400-750nm; Dl = 5nm a) Paint b) Rock

  8. Variation of color with temperature of black body from T=100 K to T=7000 K in steps D T=100 K

  9. Dangerous area unefficient light Not Dangerous area Efficient light Reflectance Illuminant l   l S ( ) ( ) opt p

  10. Paint Rock

  11. El Castillo cave ( Cantabria, Spain) UNESCO world heritage (2009)

  12. Methodology 1.- spectral 2.- Design 3.- Parameters reflectance criteria definition meassures Color paint (Lab) Color rock (Lab) Contrast ( D lab) Damage( w.h/m 2 ) 5.- matematich 4.- priority and function weight between Functional parameters Optimized spectral distribution of light source

  13. 5 zones (z=1, 2, …, 5) 10 meassures each one (m=1, 2, …, 10)  l ( ) z , m 1 / 2     10 10 1  1    2   l   l   l  l    l ( ) ( ) ( ) ( )  ( ) ( )  ( ) ( ) z z , m z z z , m   10 10   m 1 m 1 Estándar deviation Average reflectance in each zone

  14. Panel 1 5 1   l   z l ( ) ( ) 5  z 1 Iluminant A warm   M  A   l l l D l ˆ X K ( ) S ( ) x ( ) z A z j A j i j i  j 1 Tristimulus each zone M    l l l D l ˆ A X K ( ) S ( ) x ( ) i A j A j i j  j 1 Average tirstimulus each zone

  15. Functional 1      2 2 F ( D , d , d ) D d d 1   2 c p a c p a High priority to D and d c-p low to d a Functional 2    F ( D , d , d ) 2 D d d 2   1 c p a c p a Same priority for all parameters Light spectral distribution K 1 = 31 K 2 = 4 K 3 = 0 5 4 W m 2 D (Damage) = 4.0 W/m 2 3 a i Paint-rock distance) = 11.5 c n 2 a i 2 d a d a (torch distance) = 3.3 r r 1 I 0 380. 430. 480. 530. 580. 630. 680. 730. 780. de Longitud nm onda

  16. Pórtico de la gloria – Santiago chatedral

  17. Colorimetric Analysis of different cleaning technologies (Laser, Chimical and Mechanical)

  18. Daylight study: thermal and color analysis Thermal increasing over the day 24-7-2012

  19. Woman in blue ( Picasso) Objective : developing an objective and simple methodology in order to evaluate color and for integration in restoration department Requeriments: - Easy application - Simple data interpretation - Control of location - Control meassured area

  20. Woman in blue ( Picasso) Before After

  21. Previous characterization • Electronic microscopy with spectrometry in X ray (SEM-EDXS) • IR spectrometry by fourier transform (FTIR) • Gas cromatografy and mass spectrometry (GC-MS) • Pyrolysis-cromatografy (Py-GC-MS)

  22. Principal Components Analysis The first principal component has a very similar shape before and after the restoration. It shows a peak around 530 nm. However, its contribution to the total variance of the data goes from 82.38% to 89.21%. Second principal component: most of the contribution comes from specific location on the painting

  23. Guernica Requeriment of the system: 1.No contact. 2.Position refereced. 3.Orientation referenced. 4.Normalized lighting system. 5.3D texture adapted. 6.No Time consumiption. 7.Minimal energy consumption. 8.Not expensive. .

  24. Motion accuracy system with high dimension paints : magnetic rail 25 m m accuracy

  25. PC#1 => 99,41 %

  26. Spectraroboscan: IP Portable spectrometer motion system

  27. In situ callibration

  28. Point Image proccesing

  29. Muchas gracias ! http://portal.ucm.es/web/iluminacionycolor/inicio
