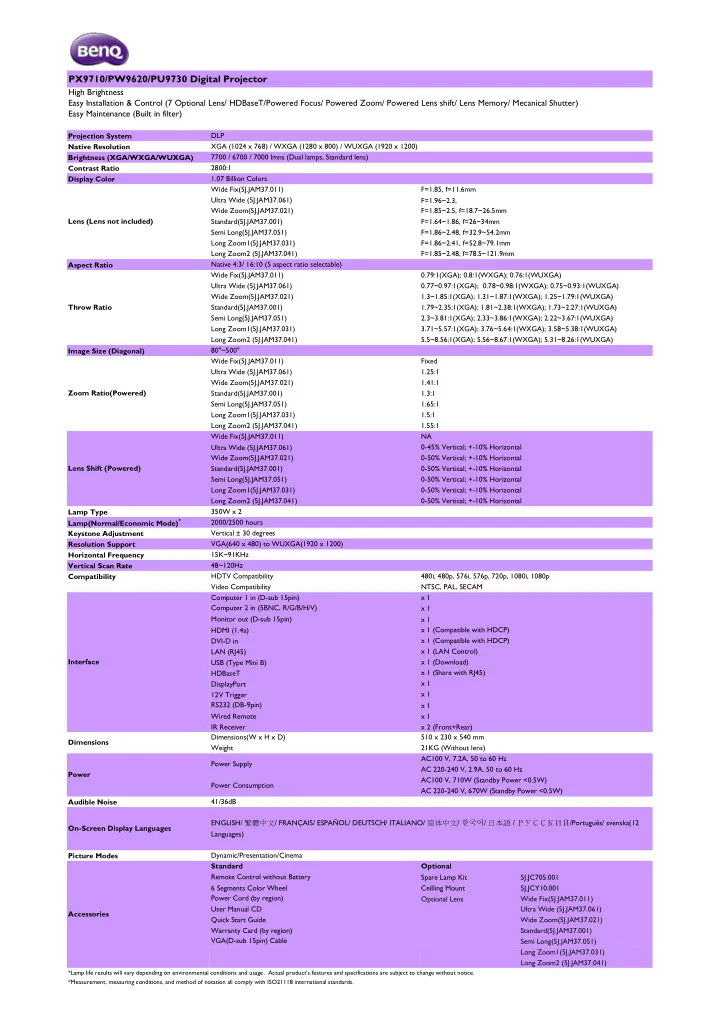

PX9710/PW9620/PU9730 Digital Projector High Brightness Easy Installation & Control (7 Optional Lens/ HDBaseT/Powered Focus/ Powered Zoom/ Powered Lens shift/ Lens Memory/ Mecanical Shutter) Easy Maintenance (Built in filter) Projection System DLP Native Resolution XGA (1024 x 768) / WXGA (1280 x 800) / WUXGA (1920 x 1200) Brightness (XGA/WXGA/WUXGA) 7700 / 6700 / 7000 lmns (Dual lamps, Standard lens) 2800:1 Contrast Ratio 1.07 Billion Colors Display Color Wide Fix(5J.JAM37.011) F=1.85, f=11.6mm Ultra Wide (5J.JAM37.061) F=1.96~2.3, Wide Zoom(5J.JAM37.021) F=1.85~2.5, f=18.7~26.5mm Lens (Lens not included) Standard(5J.JAM37.001) F=1.64~1.86, f=26~34mm Semi Long(5J.JAM37.051) F=1.86~2.48, f=32.9~54.2mm Long Zoom1(5J.JAM37.031) F=1.86~2.41, f=52.8~79.1mm Long Zoom2 (5J.JAM37.041) F=1.85~2.48, f=78.5~121.9mm Native 4:3/ 16:10 (5 aspect ratio selectable) Aspect Ratio Wide Fix(5J.JAM37.011) 0.79:1(XGA); 0.8:1(WXGA); 0.76:1(WUXGA) Ultra Wide (5J.JAM37.061) 0.77~0.97:1(XGA); 0.78~0.98:1(WXGA); 0.75~0.93:1(WUXGA) Wide Zoom(5J.JAM37.021) 1.3~1.85:1(XGA); 1.31~1.87:1(WXGA); 1.25~1.79:1(WUXGA) Th row Ratio Standard(5J.JAM37.001) 1.79~2.35:1(XGA); 1.81~2.38:1(WXGA); 1.73~2.27:1(WUXGA) Semi Long(5J.JAM37.051) 2.3~3.81:1(XGA); 2.33~3.86:1(WXGA); 2.22~3.67:1(WUXGA) Long Zoom1(5J.JAM37.031) 3.71~5.57:1(XGA); 3.76~5.64:1(WXGA); 3.58~5.38:1(WUXGA) Long Zoom2 (5J.JAM37.041) 5.5~8.56:1(XGA); 5.56~8.67:1(WXGA); 5.31~8.26:1(WUXGA) 80"~500" Image Size (Diagonal) Wide Fix(5J.JAM37.011) Fixed Ultra Wide (5J.JAM37.061) 1.25:1 Wide Zoom(5J.JAM37.021) 1.41:1 Zoom Ratio(Powered) Standard(5J.JAM37.001) 1.3:1 Semi Long(5J.JAM37.051) 1.65:1 Long Zoom1(5J.JAM37.031) 1.5:1 Long Zoom2 (5J.JAM37.041) 1.55:1 Wide Fix(5J.JAM37.011) NA 0-45% Vertical; +-10% Horizontal Ultra Wide (5J.JAM37.061) Wide Zoom(5J.JAM37.021) 0-50% Vertical; +-10% Horizontal Lens Shift (Powered) Standard(5J.JAM37.001) 0-50% Vertical; +-10% Horizontal Semi Long(5J.JAM37.051) 0-50% Vertical; +-10% Horizontal Long Zoom1(5J.JAM37.031) 0-50% Vertical; +-10% Horizontal Long Zoom2 (5J.JAM37.041) 0-50% Vertical; +-10% Horizontal Lamp Type 350W x 2 Lamp(Normal/Economic Mode) * 2000/2500 hours Vertical ± 30 degrees Keystone Adjustment VGA(640 x 480) to WUXGA(1920 x 1200) Resolution Support 15K~91KHz Horizontal Frequency 48~120Hz Vertical Scan Rate Compatibility HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Video Compatibility NTSC, PAL, SECAM Computer 1 in (D-sub 15pin) x 1 Computer 2 in (5BNC, R/G/B/H/V) x 1 Monitor out (D-sub 15pin) x 1 x 1 (Compatible with HDCP) HDMI (1.4a) x 1 (Compatible with HDCP) DVI-D in x 1 (LAN Control) LAN (RJ45) Interface x 1 (Download) USB (Type Mini B) HDBaseT x 1 (Share with RJ45) DisplayPort x 1 12V Trigger x 1 RS232 (DB-9pin) x 1 Wired Remote x 1 IR Receiver x 2 (Front+Rear) Dimensions(W x H x D) 510 x 230 x 540 mm Dimensions Weight 21KG (Without lens) AC100 V, 7.2A, 50 to 60 Hz Power Supply AC 220-240 V, 2.9A, 50 to 60 Hz Power AC100 V, 710W (Standby Power <0.5W) Power Consumption AC 220-240 V, 670W (Standby Power <0.5W) 41/36dB Audible Noise ENGLISH/ 繁體中文 / FRANÇAIS/ ESPAÑOL/ DEUTSCH/ ITALIANO/ 简体中文 / 한국어 / 日本語 / РУССКИЙ /Português/ svenska(12 On-Screen Display Languages Languages) Picture Modes Dynamic/Presentation/Cinema Standard Optional Remote Control without Battery Spare Lamp Kit 5J.JC705.001 6 Segments Color Wheel Ceilling Mount 5J.JCY10.001 Power Cord (by region) Optional Lens Wide Fix(5J.JAM37.011) User Manual CD Ultra Wide (5J.JAM37.061) Accessories Quick Start Guide Wide Zoom(5J.JAM37.021) Warranty Card (by region) Standard(5J.JAM37.001) VGA(D-sub 15pin) Cable Semi Long(5J.JAM37.051) Long Zoom1(5J.JAM37.031) Long Zoom2 (5J.JAM37.041) *Lamp life results will vary depending on environmental conditions and usage. Actual product's features and specifications are subject to change without notice. *Measurement, measuring conditions, and method of notation all comply with ISO21118 international standards.
Distance Chart PU9730 Screen Size Wide Fix Ultra Wide Wide Zoom Standard Semi Long Long Zoom1 Long Zoom2 5J.JAM37.011 5J.JAM37.061 5J.JAM37.021 5J.JAM37.001 5J.JAM37.051 5J.JAM37.031 5J.JAM37.041 Diagonal Width Height NA Wide Tele Wide Tele Wide Tele Wide Tele Wide Tele Wide Tele (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) 80 2.03 68 1.72 42 1.08 52 1.32 50.8 1.29 63.8 1.62 84.9 2.16 122 3.09 117 2.97 154 3.92 151 3.82 251 6.39 243 6.16 367 9.33 359 9.13 567 14.4 100 2.54 85 2.15 53 1.35 65.5 1.66 63.9 1.62 80.2 2.04 107 2.71 153 3.88 147 3.73 194 4.92 189 4.8 315 8 304 7.73 460 11.7 452 11.5 712 18.1 120 3.05 102 2.58 64 1.62 78.9 2.01 77.1 1.96 96.6 2.45 128 3.26 184 4.66 177 4.49 233 5.91 228 5.78 379 9.62 367 9.31 554 14.1 567 13.8 856 21.8 150 3.81 127 3.23 79 2.02 99.1 2.52 96.8 2.46 121 3.08 161 4.09 230 5.84 222 5.63 292 7.41 285 7.24 474 12 459 11.7 693 17.6 684 17.4 1073 27.3 200 5.08 153 3.88 95 2.42 132.8 3.37 130 3.29 162 4.12 215 5.47 307 7.81 297 7.53 390 9.9 381 9.68 633 16.1 615 15.6 926 23.5 916 23.3 1435 36.4 300 7.62 254 6.46 159 4.04 200.1 5.08 195 4.96 244 6.2 324 8.23 462 11.7 446 11.3 586 14.9 573 14.6 951 24.2 924 23.5 1392 35.4 1380 35 2158 54.8 400 10.2 339 8.62 212 5.38 267.4 6.79 261 6.63 326 8.28 433 11 617 15.7 596 15.1 782 19.9 765 19.4 1270 32.3 1234 31.3 1858 47.2 1843 46.8 2881 73.2 500 12.7 424 10.8 265 6.73 334.8 8.5 327 8.3 408 10.4 542 13.8 771 19.6 746 18.9 978 24.9 957 24.3 1588 40.3 1544 39.2 2324 59 2307 58.6 3604 91.5 PW9620 Screen Size Wide Fix Ultra Wide Wide Zoom Standard Semi Long Long Zoom1 Long Zoom2 Diagonal Width Height 5J.JAM37.011 5J.JAM37.061 5J.JAM37.021 5J.JAM37.001 5J.JAM37.051 5J.JAM37.031 5J.JAM37.041 NA Wide Tele Wide Tele Wide Tele Wide Tele Wide Tele Wide Tele (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) 80 2.03 68 1.72 42 1.08 54.7 1.39 53.3 1.35 67.3 1.71 89.3 2.27 128 3.25 123 3.13 162 4.12 158 4.02 264 6.71 255 6.48 386 9.8 378 9.6 596 15.1 100 2.54 85 2.15 53 1.35 68.8 1.75 67.1 1.7 84.5 2.15 112 2.85 161 4.08 155 3.93 204 5.17 199 5.05 331 8.41 320 8.14 484 12.3 476 12.1 748 19 120 3.05 102 2.58 64 1.62 82.9 2.11 80.9 2.05 102 2.59 135 3.43 193 4.9 186 4.72 245 6.22 239 6.07 398 10.1 386 9.79 582 14.8 573 14.6 900 22.9 150 3.81 127 3.23 79 2.02 104.1 2.64 102 2.58 128 3.24 169 4.3 242 6.14 233 5.92 307 7.79 300 7.61 498 12.7 483 12.3 728 18.5 719 18.3 1127 28.6 200 5.08 153 3.88 95 2.42 139.4 3.54 136 3.45 171 4.34 226 5.75 323 8.2 312 7.92 410 10.4 401 10.2 665 16.9 646 16.4 973 24.7 963 24.5 1507 38.3 300 7.62 254 6.46 159 4.04 210 5.33 205 5.2 257 6.53 341 8.65 485 12.3 469 11.9 616 15.6 602 15.3 999 25.4 972 24.7 1462 37.1 1450 36.8 2266 57.6 400 10.2 339 8.62 212 5.38 280.6 7.13 274 6.95 343 8.72 455 11.6 648 16.5 626 15.9 822 20.9 804 20.4 1333 33.9 1297 33 1951 49.6 1937 49.2 3025 76.9 500 12.7 424 10.8 265 6.73 351.2 8.92 343 8.7 429 10.9 569 14.5 810 20.6 783 19.9 1028 26.1 1006 25.6 1667 42.4 1623 41.2 2440 62 2424 61.6 3785 96.1 PX9710 Screen Size Wide Fix Ultra Wide Wide Zoom Standard Semi Long Long Zoom1 Long Zoom2 Diagonal Width Height 5J.JAM37.011 5J.JAM37.061 5J.JAM37.021 5J.JAM37.001 5J.JAM37.051 5J.JAM37.031 5J.JAM37.041 NA Wide Tele Wide Tele Wide Tele Wide Tele Wide Tele Wide Tele (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) (Inch) (m) 80 2.03 64 1.63 48 1.22 50.8 1.29 49.5 1.26 62.5 1.59 82.9 2.11 119 3.02 114 2.9 151 3.83 147 3.73 246 6.24 237 6.02 359 9.12 351 8.91 554 14.1 100 2.54 80 2.03 60 1.52 63.9 1.62 62.4 1.58 78.6 2 104 2.65 149 2.79 144 3.65 189 4.8 185 4.69 308 7.82 298 7.56 450 11.4 442 11.2 695 17.7 120 3.05 96 2.44 72 1.83 77.1 1.96 75.2 1.91 94.7 2.4 125 3.28 179 4.56 173 4.39 227 5.78 222 5.64 370 9.4 358 9.1 541 13.7 532 13.5 837 21.3 150 3.81 120 3.05 90 2.29 96.8 2.46 94.4 2.4 119 3.02 157 3.99 225 5.71 217 5.5 285 7.24 278 7.07 463 11.1 449 11.4 678 17.2 668 17 1049 26.6 200 5.08 160 4.06 120 3.05 129.7 3.3 127 3.21 159 4.04 210 5.34 300 7.63 290 7.36 381 9.67 372 9.46 619 15.7 601 15.3 905 23 895 22.7 1402 35.6 300 7.62 240 6.1 180 4.57 195.5 4.97 191 4.84 239 6.08 317 8.04 452 11.5 436 11.1 573 14.5 560 14.2 930 23.6 904 23 1361 34.6 1348 34.2 2109 53.6 400 10.2 320 8.13 240 6.1 261.3 6.64 255 6.47 320 8.12 423 10.7 603 15.3 582 14.8 764 19.4 748 19 1241 31.5 1207 30.7 1816 46.1 1801 45.8 2816 71.5 500 12.7 400 10.2 300 7.62 327.1 8.31 319 8.1 400 10.2 529 13.4 754 19.1 729 18.5 956 24.3 936 23.8 1552 39.4 1510 38.3 2271 57.7 2254 57.3 3523 89.5
