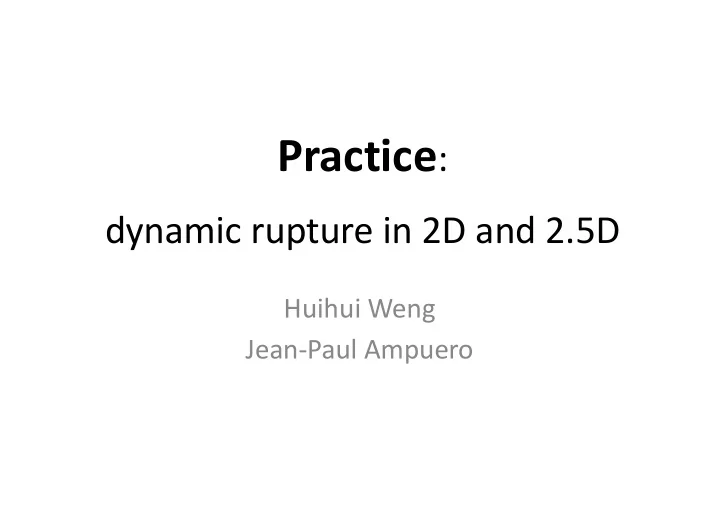

Practice : dynamic rupture in 2D and 2.5D Huihui Weng Jean-Paul Ampuero

Goals • Learn to simulate dynamic rupture model • Explore the effects of fault heterogeneities on dynamic ruptures • Discussion: seismology problems

2D and 2.5D numerical codes Download from GitHub

MATLAB code semlab ----- run it directly Fortran code sem2dpack ----- installation is simple ----- simulation is fast

Model parameters LX or LX/2 Discretized size S wave speed Density LY Stations Static friction coe ffj cient τ Dynamic friction coe ffj cient Frictional fault Normal stress τ s Shear stress Slip-weakening distance τ 0 Dc τ d Slip

Seismogenic width W (3 equations) x 1 Reduce to 1 equation x 2 x 3 Aseismic region Aseismic region Sin(k 3 x 3 ) Slip profile Slip approximation Aseismic region Aseismic region Seismogenic width W

Tutorial of semlab Tutorial of sem2dpack

How to run semlab? cd ${work_dir}/semlab-master/SEMLAB matlab & open this file from matlab: sem2d_eq_dyn_tutorial.m

Parameter setup in semlab

Result presentation (figure1)

Result presentation (figure3) Cohesive tail Stopping phase Tip Stopping phase

Result presentation (figure3) Cohesive tail Stopping phase Tip Stopping phase Definition of tip: Slip Slip rate > threshold Slip rate Definition of cohesive tail: Stress Slip = Dc Tip Tail of cohesive zone

STF and its spectrum (final)

STF and spectra

Add a heterogeneity

STF comparison

Models to test Model 1 Uniform fault Barrier Ø Heterogeneity can be initial stress or Dc abrupt stop Ø Question: what are the Model 2 differences of STF and spectrum? Barrier Uniform fault Ø Discussion: what are the gradually stop differences between 2D and 2.5D models? Model 3 Rough fault Barrier abrupt stop

Discussion Apple to apple Model 1 Uniform fault Barrier Ø model 1 vs. model 2 abrupt stop Ø model 1 vs. model 3 Model 2 Barrier Uniform fault Ø 2D vs. 2.5D gradually stop Model 3 Rough fault Barrier abrupt stop

Discussion Ø model 1 vs. model 2

Discussion Ø 2D vs. 2.5D

Models to test Model 4 Ø Heterogeneity is initial stress Uniform fault Ø Question: do these heterogeneities increase Initial stress Previous ruptured region high-frequency radiation? Model 5 Ø Discussion: what parameters may control the high- Uniform fault frequency radiation? Dc Steps

Discussion Apple to apple Model 4 Ø model 1 vs. model 4 Uniform fault Initial stress Previous ruptured region Ø model 1 vs. model 5 Model 5 Ø 2D vs. 2.5D Uniform fault Dc Steps

Tutorial of SEMLAB Tutorial of sem2dpack

Installation of sem2dpack

How to run sem2dpack? cd ${work_dir}/sem2dpack- 25D/EXAMPLES/2.5D_inplane open this file by vim or other method: vi Par.inp

Parameter setup in sem2dpack

How to present results? cd ${work_dir}/sem2dpack-25D/POST open the script by MATLAB: create_movie.m run it by MATLAB

Discussion Ø Find seismic phases, such as P wave front, S wave, Rayleigh wave, etc. Ø What parameters may control the formation of supershear rupture?
