Finding Visual Landmarks with E-Puck robots Loc SEGAPELLI Introduction Webots A group of e-puck robots Each one has a camera They are looking for a blue light They must use their camera only! Collaboration Example

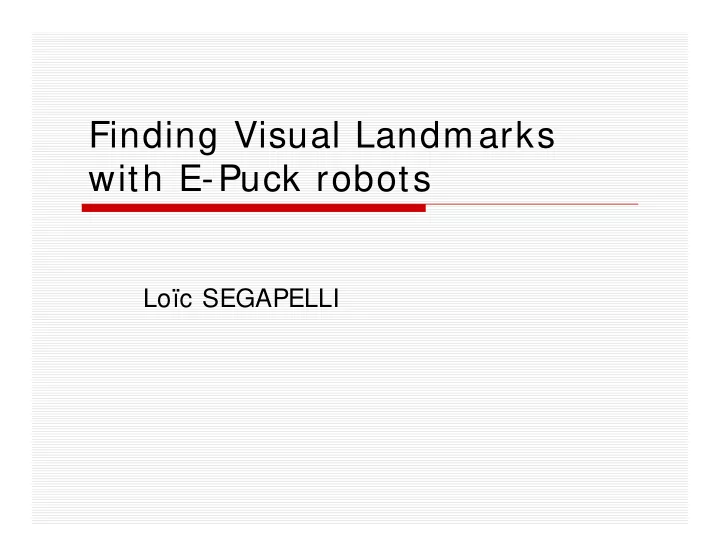

  1. Finding Visual Landmarks with E-Puck robots Loïc SEGAPELLI

  2. Introduction � Webots � A group of e-puck robots � Each one has a camera � They are looking for a blue light � They must use their camera only! � Collaboration

  3. Example

  4. Algorithm � Robot turn 360º , takes 6 photos � One robot sees the blue light: � Turns on its red leds � Waits � Goes to the light source

  5. Algorithm � Another robot sees red leds: � Turns on its red leds -> chain reaction � Waits � Goes to the red light source

  6. Blue light detection 1

  7. Blue light detection 2

  8. Blue light detection 3

  9. Blue light detection 4

  10. Blue light detection 5

  11. Blue light detection 6

  12. Blue light detection 7

  13. Image segmentation � One picture = 1 min! � Get the most from one photo � Vertical image segmentation

  14. Image segmentation � Position correction: robots turn where there is the most blue / red pixels

  15. Image segmentation 1

  16. Image segmentation 2

  17. Image segmentation 3

  18. Image segmentation 4

  19. Detection The whole state machine… Exploration

  20. Real camera pictures � 30x30 pixels, should not be a handicap

  21. Conclusion - No real-robot experimentation + Interesting image segmentation strategy + Simple state machine
