____________________________________________________________________________________________ DTPs PRESENTATION The water treatment system named DTPs uses the same principles of physic-dynamic separation used for the DTP plants. We are talking

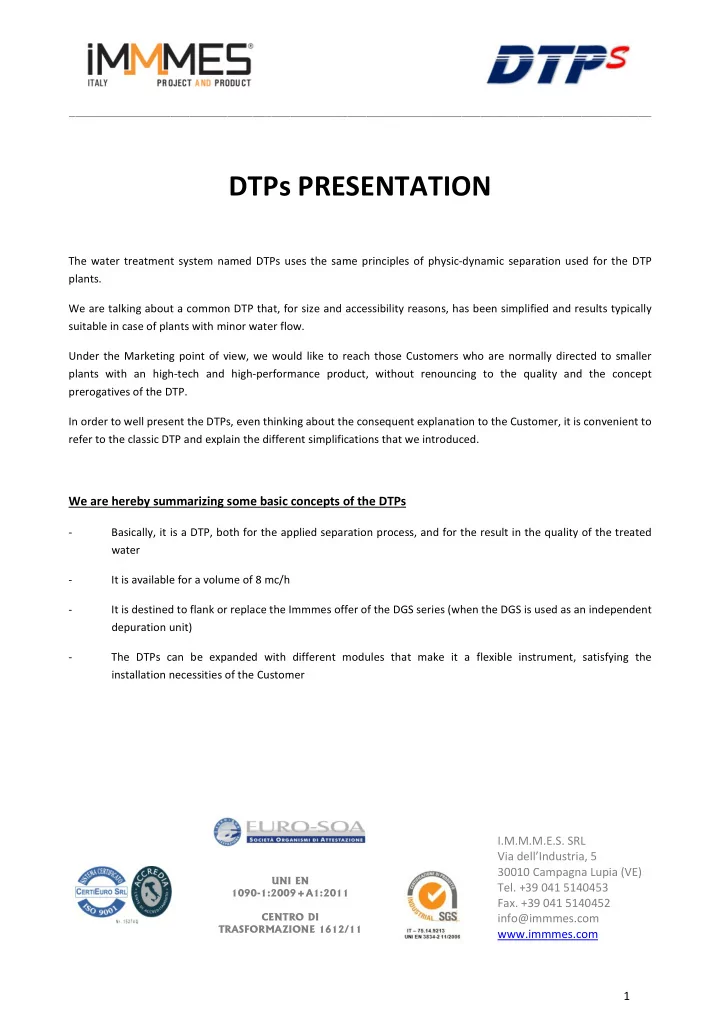

  1. ____________________________________________________________________________________________ DTPs PRESENTATION The water treatment system named DTPs uses the same principles of physic-dynamic separation used for the DTP plants. We are talking about a common DTP that, for size and accessibility reasons, has been simplified and results typically suitable in case of plants with minor water flow. Under the Marketing point of view, we would like to reach those Customers who are normally directed to smaller plants with an high-tech and high-performance product, without renouncing to the quality and the concept prerogatives of the DTP. In order to well present the DTPs, even thinking about the consequent explanation to the Customer, it is convenient to refer to the classic DTP and explain the different simplifications that we introduced. We are hereby summarizing some basic concepts of the DTPs - Basically, it is a DTP, both for the applied separation process, and for the result in the quality of the treated water - It is available for a volume of 8 mc/h - It is destined to flank or replace the Immmes offer of the DGS series (when the DGS is used as an independent depuration unit) - The DTPs can be expanded with different modules that make it a flexible instrument, satisfying the installation necessities of the Customer I.M.M.M.E.S. SRL Via dell’Industria, 5 30010 Campagna Lupia (VE) U�I E� Tel. +39 041 5140453 1090�1�2009�A1�2011 Fax. +39 041 5140452 CE�TR� DI info@immmes.com TRASF�R�A�I��E 1612�11 www.immmes.com 1

  2. ____________________________________________________________________________________________ Characteristics of the DTPs 1) Pressurization with a single pump 3,2 kw (one optional spare pump + € 450) 2) No inverter necessary 3) Fluidization included in the water collecting tank 4) No automatic water replacement in case of decrease of the level 5) Levels detection by ultrasound inside the tank 6) Discharge of exceeded water with manual valve 7) Return of the treated water (limpid) directly inside the original tank 8) Predisposition for an output for a direct connection to the CNC line 9) Pressure gauge for the automatic management of the plant (Start/Stop) 10) No pH control station 11) No remote control station 12) Display for the visualization of the status, the plant functions and PLC control 13) Big-Bag station with 1 sack included 14) Dosing pump included 15) Maximum distance installation of the DTPs from the collecting tank = 5 meters 16) Filter back-washings with automatic programming 17) Sizes of the main elements: Deconcentrator diameter mm 1200 x height mm 4900 Filter diameter mm 1000 x height mm 2700 Big-Bag station sides mm 1200 x height mm 1400 Total price Euro 38.800 installation included. Transport and travel expenses excluded 18) I.M.M.M.E.S. SRL Via dell’Industria, 5 30010 Campagna Lupia (VE) U�I E� Tel. +39 041 5140453 1090�1�2009�A1�2011 Fax. +39 041 5140452 CE�TR� DI info@immmes.com TRASF�R�A�I��E 1612�11 www.immmes.com 2

  3. ____________________________________________________________________________________________ Optional modules available o Load and pressurization station with double pump and alternate work o Filtration grill for the water pit (before the collecting pool) o pH reader with dosing pump o Automatic discharge of exceeded water o Automatic opening of the water replacement (water line supplied by the Customer) o Starting/switching off mode with weekly time programming and general pneumatic valve for opening and closure Big-Bag station with double sack o I.M.M.M.E.S. SRL Via dell’Industria, 5 30010 Campagna Lupia (VE) U�I E� Tel. +39 041 5140453 1090�1�2009�A1�2011 Fax. +39 041 5140452 CE�TR� DI info@immmes.com TRASF�R�A�I��E 1612�11 www.immmes.com 3

  4. ____________________________________________________________________________________________ I.M.M.M.E.S. SRL Via dell’Industria, 5 30010 Campagna Lupia (VE) U�I E� Tel. +39 041 5140453 1090�1�2009�A1�2011 Fax. +39 041 5140452 CE�TR� DI info@immmes.com TRASF�R�A�I��E 1612�11 www.immmes.com 4
