Brewing Filter Coffee: Mathematical Model of Coffee Extraction - PowerPoint PPT Presentation

Brewing Filter Coffee: Mathematical Model of Coffee Extraction Modelling Camp, ICMS March 24, 2016 Modelling Camp, 2016 The Problem Modelling Camp, 2016 Outline Examining the concentration of granules vs coffee in solution. Model the

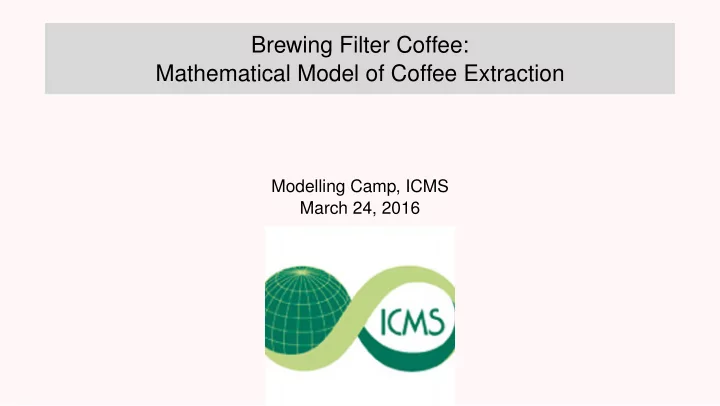

  1. Brewing Filter Coffee: Mathematical Model of Coffee Extraction Modelling Camp, ICMS March 24, 2016

  2. Modelling Camp, 2016

  3. The Problem Modelling Camp, 2016

  4. Outline ◮ Examining the concentration of granules vs coffee in solution. ◮ Model the flow through the coffee-bed. ◮ Simplify model of extraction with advection in the filter. ◮ Exciting Results! Modelling Camp, 2016

  5. Outline ◮ Examining the concentration of granules vs coffee in solution. ◮ Model the flow through the coffee-bed. ◮ Simplify model of extraction with advection in the filter. ◮ Exciting Results! Modelling Camp, 2016

  6. Outline ◮ Examining the concentration of granules vs coffee in solution. ◮ Model the flow through the coffee-bed. ◮ Simplify model of extraction with advection in the filter. ◮ Exciting Results! Modelling Camp, 2016

  7. Outline ◮ Examining the concentration of granules vs coffee in solution. ◮ Model the flow through the coffee-bed. ◮ Simplify model of extraction with advection in the filter. ◮ Exciting Results! Modelling Camp, 2016

  8. Outline ◮ Examining the concentration of granules vs coffee in solution. ◮ Model the flow through the coffee-bed. ◮ Simplify model of extraction with advection in the filter. ◮ Exciting Results! Modelling Camp, 2016

  9. Variables Basic Variables: m g C c := m c V θ, C g := V ( 1 − θ ) , where: C c represents the concentration of the coffee in water C g the concentration of the coffee granules θ is the porosity of the coffee Modelling Camp, 2016

  10. Basic Equations Equation of transport of coffee for constant density of water at a certain temperature: dC c = α ( 1 − θ )( C g − G λ )( S − C c ) − ( v w · ∇ C c ) dt Conservation of coffee granules � � d θ C c + ( 1 − θ ) C g = 0 dt = ⇒ θ C c + ( 1 − θ ) C g = ( 1 − θ ) G G is the starting concentration of granules, and S is the maximum concentration of dissolved coffee, α is the extraction rate. Modelling Camp, 2016

  11. Basic Equations Equation of transport of coffee for constant density of water at a certain temperature: dC c = α ( 1 − θ )( C g − G λ )( S − C c ) − ( v w · ∇ C c ) dt Conservation of coffee granules � � d θ C c + ( 1 − θ ) C g = 0 dt = ⇒ θ C c + ( 1 − θ ) C g = ( 1 − θ ) G G is the starting concentration of granules, and S is the maximum concentration of dissolved coffee, α is the extraction rate. Modelling Camp, 2016

  12. Basic Equations Equation describing the coffee concentration within the granules: dC g = − θα ( C g − G λ )( S − C c ) dt Modelling Camp, 2016

  13. Basic Equations Equation describing the coffee concentration within the granules: dC g = − θα ( C g − G λ )( S − C c ) dt Modelling Camp, 2016

  14. Dimensionless System Dimensionless system without advection: d � C c = B ( 1 − θ ) G ( � C g − λ )( 1 − � C c ) dt d � C g = − θ ( � C g − λ )( 1 − � C c ) , dt C c := C c C g := C g where � , � G , � t = t / T and B = G / S S Modelling Camp, 2016

  15. Dimensionless System Dimensionless system without advection: d � C c = B ( 1 − θ ) G ( � C g − λ )( 1 − � C c ) dt d � C g = − θ ( � C g − λ )( 1 − � C c ) , dt C c := C c C g := C g where � , � G , � t = t / T and B = G / S S Modelling Camp, 2016

  16. Results for the concentrations C c = B ( 1 − θ ) � ( 1 − � C g ) θ C g = λθ + ( 1 − λ )( θ − B ( 1 − θ )) e − j � t � , θ + ( 1 − λ )( 1 − θ ) Be − j � t where � j = θ − ( 1 − λ ) B ( 1 − θ ) Modelling Camp, 2016

  17. Flow Through the Coffee-Bed Darcy’s law describes the flow of water through the coffee (porous medium) q = − k µ ∇ P Figure: x = Lu , y = h ( u ) v . Modelling Camp, 2016

  18. Pressure-Velocity � H � Pressure: P = ρ w gy h ( x ) − 1 + P 0 � H � Velocity: v y = − κ θµ ρ w g h ( x ) − 1 Modelling Camp, 2016 Figure: Pressure Distribution.

  19. Rotating the Problem Pressure: P = ρ w gh − 1 y ′ ( H − x ′ sin ( φ ) − h ( x ′ ) cos ( φ )) Modelling Camp, 2016

  20. Rotating the Problem Figure: Pressure distribution at inclination angle 45, 30, 60 respectively Modelling Camp, 2016

  21. Mean-field Approximation Average over coffee bed height: � h C c = 1 � C c dz h 0 � h C g = 1 � C g dz h 0 � h 1 ( ∇ · v w C c ) dz = v w ( C c ( h ) − C c ( 0 )) h 0 = − v w � C c Mean-field approximation: � h 1 dz ≈ f ( � C c , � f ( C c , C g ) C v ) h 0 Modelling Camp, 2016

  22. Average � C c and � C g Average over volume using mean-field argument: � h � ∂ C c � � h + ∇ · ( C c v w ) dz = α ( 1 − θ )( C g − G λ )( S − C c ) dz ∂ t 0 0 ∂ ˆ C c − v w ˆ C c = α ( 1 − θ )(ˆ C g − G λ )( S − ˆ C c ) ∂ t � h � h ∂ C g ∂ t dz = − αθ ( C g − G λ )( S − C c ) dz 0 0 ∂ ˆ C g = − αθ (ˆ C g − G λ )( S − ˆ C c ) ∂ t Modelling Camp, 2016

  23. Illustration of the solution with advection C c -blue curve, C g red curve Modelling Camp, 2016

  24. Brewing Contral Chart Comparison Modelling Camp, 2016

  25. Modelling Camp, 2016

  26. Conclusions and future research ◮ We developed a basic model, which for a given geometry of the coffee bed predicts quality of the coffee ◮ More coffee is extracted at the top of the filter rather than at the bottom due to the lower pressure and lower velocity ◮ An decrease in the angle of inclination of the filter leads to an increase in the concentration of coffee in the solution ◮ Our model predicts the height of the coffee bed along the filter should be in the range 0 . 8 < h < 1 cm ◮ Straightforward extensions: 3D axisymmetric model, variable h ◮ Further improvements: consider the process of a coffee bed deformation and chemical impact Modelling Camp, 2016

  27. Conclusions and future research ◮ We developed a basic model, which for a given geometry of the coffee bed predicts quality of the coffee ◮ More coffee is extracted at the top of the filter rather than at the bottom due to the lower pressure and lower velocity ◮ An decrease in the angle of inclination of the filter leads to an increase in the concentration of coffee in the solution ◮ Our model predicts the height of the coffee bed along the filter should be in the range 0 . 8 < h < 1 cm ◮ Straightforward extensions: 3D axisymmetric model, variable h ◮ Further improvements: consider the process of a coffee bed deformation and chemical impact Modelling Camp, 2016

  28. Conclusions and future research ◮ We developed a basic model, which for a given geometry of the coffee bed predicts quality of the coffee ◮ More coffee is extracted at the top of the filter rather than at the bottom due to the lower pressure and lower velocity ◮ An decrease in the angle of inclination of the filter leads to an increase in the concentration of coffee in the solution ◮ Our model predicts the height of the coffee bed along the filter should be in the range 0 . 8 < h < 1 cm ◮ Straightforward extensions: 3D axisymmetric model, variable h ◮ Further improvements: consider the process of a coffee bed deformation and chemical impact Modelling Camp, 2016

  29. Conclusions and future research ◮ We developed a basic model, which for a given geometry of the coffee bed predicts quality of the coffee ◮ More coffee is extracted at the top of the filter rather than at the bottom due to the lower pressure and lower velocity ◮ An decrease in the angle of inclination of the filter leads to an increase in the concentration of coffee in the solution ◮ Our model predicts the height of the coffee bed along the filter should be in the range 0 . 8 < h < 1 cm ◮ Straightforward extensions: 3D axisymmetric model, variable h ◮ Further improvements: consider the process of a coffee bed deformation and chemical impact Modelling Camp, 2016

  30. Conclusions and future research ◮ We developed a basic model, which for a given geometry of the coffee bed predicts quality of the coffee ◮ More coffee is extracted at the top of the filter rather than at the bottom due to the lower pressure and lower velocity ◮ An decrease in the angle of inclination of the filter leads to an increase in the concentration of coffee in the solution ◮ Our model predicts the height of the coffee bed along the filter should be in the range 0 . 8 < h < 1 cm ◮ Straightforward extensions: 3D axisymmetric model, variable h ◮ Further improvements: consider the process of a coffee bed deformation and chemical impact Modelling Camp, 2016

  31. Conclusions and future research ◮ We developed a basic model, which for a given geometry of the coffee bed predicts quality of the coffee ◮ More coffee is extracted at the top of the filter rather than at the bottom due to the lower pressure and lower velocity ◮ An decrease in the angle of inclination of the filter leads to an increase in the concentration of coffee in the solution ◮ Our model predicts the height of the coffee bed along the filter should be in the range 0 . 8 < h < 1 cm ◮ Straightforward extensions: 3D axisymmetric model, variable h ◮ Further improvements: consider the process of a coffee bed deformation and chemical impact Modelling Camp, 2016
