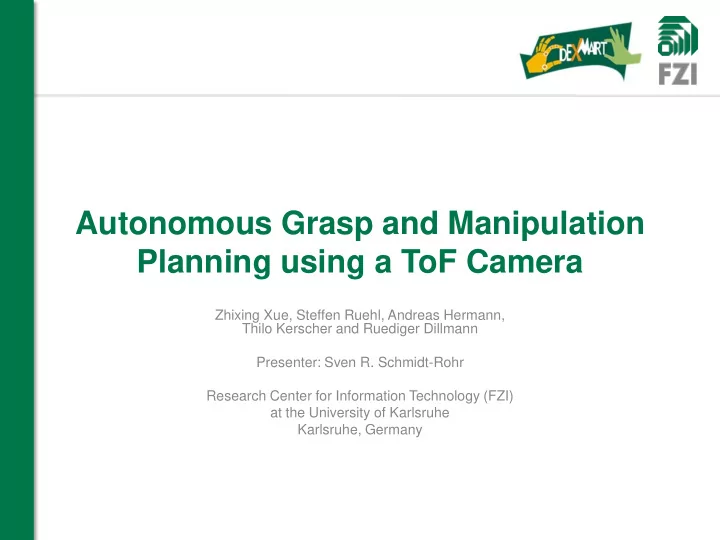

Autonomous Grasp and Manipulation Planning using a ToF Camera Zhixing Xue, Steffen Ruehl, Andreas Hermann, Thilo Kerscher and Ruediger Dillmann Presenter: Sven R. Schmidt-Rohr Research Center for Information Technology (FZI) at the University of Karlsruhe Karlsruhe, Germany

Content  Motivation  Time-of-Flight Camera • Calibration • Segmentation  Applications • Motion Planning Mesa • Grasping SwissRanger SR4000 • Sensorbased Motion Planning Manipulation  Conclusion Manipulation of Cream-like Mass Grasping of Unknown Objects 2

Motivation  To sense and understand its 3D environment is an important ability for a service robot to grasp and manipulate objects in a dynamic and cluttered environment.  The Time-of-Flight (ToF) cameras can capture range information at video frame rates.  Use the sensed depth information for grasping and manipulation tasks: • Motion Planning: to avoid collision with the detected obstacles • Grasping: to grasp objects using the captured models • Manipulation: to plan manipulation actions adapted to object surface  Use of impedance control to compensate the uncertainties due to sensor error. 3

Time-of-Flight Principle  Sensor emits amplitude modulated near-infrared light which is reflected by objects in the scene and projected onto the chip Mesa  In each pixel, the phase shift of SwissRanger reference and received signal is SR4000 determined (correlation) and the distance is computed  2.5D depth map and intensity/amplitude image as near-infrared image of ambient illuminance and reflectance 4

Measurement Characteristics Advantages: Disadvantages: + 3D information without scanning - Limited Resolution (176x144 pixels) Video frame rate (20 – 50 fps) + - Various factors affect measurement Viewing frustum ~ 45 ° + accuracy (~ 10 cm): - + Solid state sensor internal: noise (thermal, electronic, photon shot), propagation delay in + Varying ambient light conditions the chip’s circuits, the exact form of yield same data due to illumination the diode’s signal, lens distortion, … unit - external: temperature, ambient light, + Eye safety reflective properties of viewed scene, …  Calibration of the sensed depth data is necessary  Segmentation of a priori known objects from the sensed depth data 5

Experiment Setup  A Swissranger SR4000 • For 3D modeling of the workspace • Mounted direct above the manipulation region to reduce occlusion  Two Pike Cameras • For object recognition and localization  Two KUKA Light Weighted Robotic Arms • 7 DoFs, with Impedance Control  Two DLR/HIT Five Finger Hands • 15 DoFs, with Impedance Control  A touch screen for Human-Machine- Interaction 6

Calibration of SwissRanger 4k  Stage 1: Estimation of intrinsic/extrinsic camera parameters using state-of-the-art tools • lens distortion, misalignment of the chip  Stage 2: Multi-plane calibration for per- pixel depth correction (offline generated) • accuracy 5 cm (on average)  Stage 3: Usage of “landmarks” in environment (e.g. wall, table) for per- Errors in depth map of pixel depth correction (online by means planar checkerboard of best-fitting) • accuracy 1 cm (on average) 7

Segmentation of Known Objects Z-Buffer Rendering of Known Objects Object Localization Depth Comparison Camera Pictures Segmented Objects Depth Point Clouds Information 8

Sensor-based Motion Planning  Environment is represented by three kinds of data in the environment model:  Doors, walls, tables, … are static  Triangle meshes corresponding to the recognized and localized objects  Segmented triangle meshes of the Time-of- Flight camera approximate obstacles  During the transport phase, the grasped object is treated as a part of the kinematic chain  A probabilistic collision-free path planer is used to find a trajectory to the desired arm position  The arm is operated in impedance mode to comply with environment deviations 9 9

Sensor-based Motion Planning 10

Grasp Planning for Unknown Objects  The object is modeled using the ToF camera and segmented from the scene  Generate the approach directions from approximations of the object’s geometry  Hand within a predefined hand preshape moves along an approach direction and closes the fingers in the simulation  Use Force-Closure checking to find feasible grasps  Use joint based finger impedance control to apply grasping forces and to comply with model deviations 11

Grasp Planning with CATCH  CATCH [Zhang2007] (Continuous Collision Detection for Articulated Models using Taylor Models and Temporal Culling) has been used for grasp planning  Continuous Collision Detection takes the motion of the objects into Using Newton-Raphson in GraspIt! account and computes the first time of contact  CATCH is 4 ~ 10 times faster than the extended PQP version in GraspIt!  At least 10 grasp candidates can be tested within one second Using CATCH 12

Grasping of Unknown Objects 13

Manipulation of Cream-Like Mass  Manipulation of cream-like mass is a further manipulation action beyond the pick-and-place operations  We have implemented an ice cream serving scenario, that the robot serves equally sized ice cream scoops  Use the ToF camera to detect the surface Real ice cream surface of the mass and plan the manipulation trajectories for the tool  Segmentation and calibration of the detected ice cream surfaces Segmented and calibrated 14 ice cream surface

Manipulation of Cream-Like Mass  The scoop trajectories are generated from the ice cream surface  The highest trajectory is selected to be performed  Compute the intrusion depth of the scoop into the ice cream surface using the volume of the scoop  Use Cartesian impedance control of the arm to scoop the ice cream  Compute the reference trajectory using the stiffness factor of impedance control 15

Manipulation of Cream-Like Mass 16

Conclusion  The Time-of-Flight camera can provide useful depth information for service robots • Sensor-based Motion Planning • Grasping of Unknown Objects • Manipulation of Cream-Like Mass  The measurement accuracy can be improved by calibration and compensated using arm impedance control  Future work • Combination of multiple ToF cameras for complete 3D environment • Combination of color cameras and ToF cameras for better object recognition and localization • Observation of both robot itself and its environment 17
