Xen on ARM A success story Stefano Stabellini - Citrix Xen Project - PowerPoint PPT Presentation

Apr 24, 2023 •316 likes •606 views

Xen on ARM A success story Stefano Stabellini - Citrix Xen Project Team Achievements of one year Xen support for ARM Xen 64-bit Xen support for ARM64 upstream in Linux 3.7 on ARM64 upstream in Linux 3.11 You are here 11/11 08/12 09/12

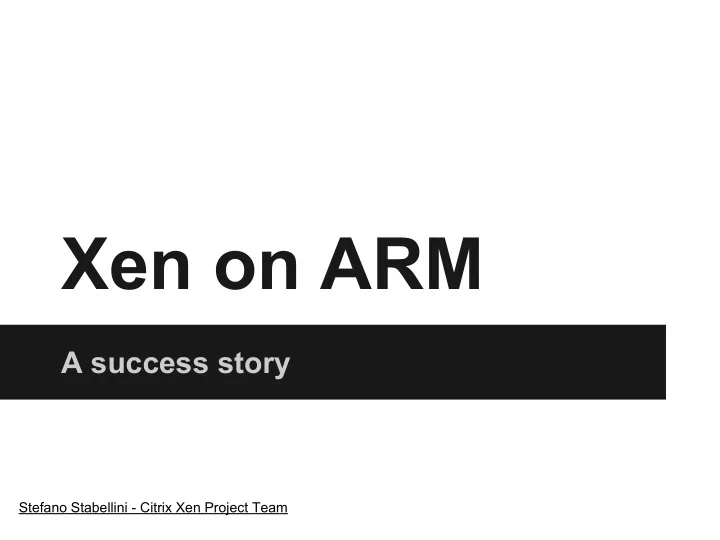

  1. Xen on ARM A success story Stefano Stabellini - Citrix Xen Project Team

  2. Achievements of one year Xen support for ARM Xen 64-bit Xen support for ARM64 upstream in Linux 3.7 on ARM64 upstream in Linux 3.11 You are here 11/11 08/12 09/12 11/12 01/13 03/13 06/13 07/13 Part-time Xen ARM Xen running on real Citrix announces Xen 4.3 released with ARM hardware hacking starts that will be joining ARM and ARM64 Linaro support First Xen on ARM talk at Xen Summit 2012

  3. A growing community Xen-devel ARM traffic from August 2012: ● 4685 emails: 360 emails per month! ● 39% of which are not from Citrix

  4. Hardware support Upstream: ● Versatile Express Cortex A15 ● Arndale board ● ARMv8 FVP In progress: ● Calxeda “Midway” ● Applied Micro “Mustang” ● Cubieboard2 ● Broadcom Brahma-B15 ● OMAP5

  5. Upstream features Xen v4.3: ● basic lifecycle operations ● memory ballooning ● scheduler configurations and vcpu pinning Linux v3.11: ● dom0 and domU support ● 32-bit and 64-bit support ● SMP support ● PV disk, network and console

  6. Coming in Xen 4.4 ● 64-bit guest support ● live-migration ● SWIOTLB

  7. Coming in Xen 4.4 ● 64-bit guest support ● live-migration ● SWIOTLB

  9. The problem virtual address 1 Stage Linux physical address 2 stage Xen machine address hardware

  10. The problem: dom0 DMA virtual address 1 Stage Linux physical address 2 stage Xen machine address Device DMA

  11. The best solution: IOMMU virtual address Linux MMU physical address 2 stage machine address IOMMU Xen Device DMA

  12. The workaround: Dom0 1:1 mapping virtual address Linux physical address = machine address Xen Device DMA

  13. The workaround: Dom0 1:1 mapping ● rigid solution ● no ballooning in dom0 ● no page sharing in dom0 ● does not work with foreign grant table mappings

  14. UNHAPPY

  15. The alternative: SWIOTLB virtual address MMU physical address DMA ops Linux machine address Device DMA

  16. The alternative: SWIOTLB ● use memory_exchange_and_pin hypercall ○ create a contiguous buffer in machine memory ○ retrieve the machine address of the buffer ● introduce an additional memcpy ● remove the need for the 1:1 workaround

  17. STILL UNHAPPY

  18. SWIOTLB: the improved version pin and unpin hypercalls: ● dynamically retrieve P2M mappings ● pin a mapping for DMA ● remove additional memcpy pfn map_page pfn XENMEM_pin mfn pin mfn

  19. SWIOTLB: the “improved” version ● Linux rbtree maintenance is expensive ● too many uncached address translations in Xen ○ guest virtual to machine ○ guest physical to machine cpu utilization increase

  20. NOT AN IMPROVEMENT

  21. SWIOTLB: the compromise ● keep the dom0 1:1 workaround ○ dom0 without ballooning and page sharing is the default configuration in XenServer x86 today ● use the swiotlb only to handle DMA involving foreign grants ○ we already know the p2m mappings of grants ■ no need for pin and unpin hypercalls ○ can take shortcuts: avoid many tree lookups ○ tree lookups are much faster ○ avoidable with IOMMU support

  22. SWIOTLB: the compromise Testing platform: ● 1.5Ghz quad-core Cortex A15 ● 1 Gbit link Benchmark results: ● same network throughput as native (line rate) ● < 2% cpu usage increase

  23. THAT’S BETTER

  24. SWIOTLB: where to find it The patches (swiotlb-xen v8): http://marc.info/?l=linux-kernel&m=138203180707683&w=2 The kernel tree: git://git.kernel.org/pub/scm/linux/kernel/git/sstabellini/xen.git swiotlb-xen-8

  25. Xen 4.5+ ● IOMMU support in Xen ● device assignment ● UEFI booting ● ACPI support

  26. DEMO

  27. Questions?
