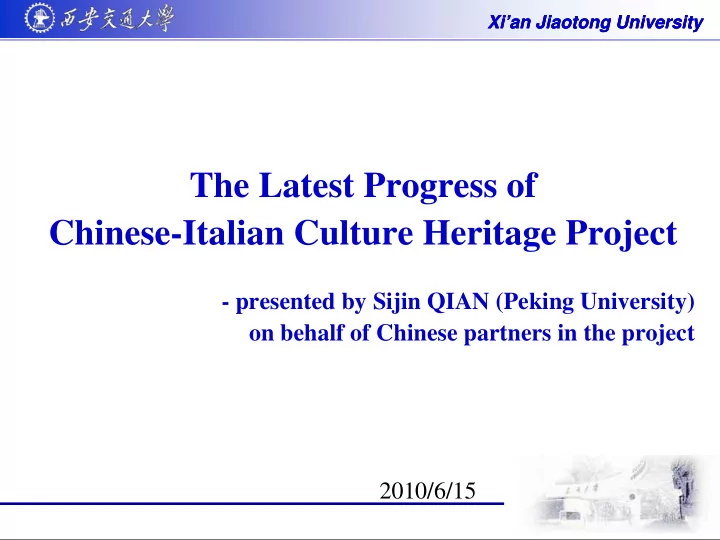

Xian Jiaotong University Xian Jiaotong University Xian Jiaotong University The Latest Progress of Chinese-Italian Culture Heritage Project - presented by Sijin QIAN (Peking University) on behalf of Chinese partners in the project
Xi’an Jiaotong University Xi’an Jiaotong University Xi’an Jiaotong University
Xi’an Jiaotong University Xi’an Jiaotong University Xi’an Jiaotong University
Modules of basic information database for relics 1 Collaboration platform for the experts of ceramic painting conservation 2 Automated reparation of murals 3 Virtual display of relics 4
Xi’an Jiaotong University Xi’an Jiaotong University Xi’an Jiaotong University
Metadata technology The project information organization and retrieval norms research group ROSS (in Taiwan's National Science Council Digital Museum) has also made some researches on museums information metadata Chinese heritage central organizations of information consultation proposed << Standards of information index system for museum collections >> Meta search technology Standard vector definition of theme Chinese word segmentation
InfoGrid、Infonetware RealTerm Search
ICTCLAS word segmentation system designed and realized by the computing institute of
Chinese Academia Sinica
Content-Based Image Retrieval
QBIC、Photobook、CBIC on Web
Theme meta search engine
Tsinghua University SEGTAG system
Chinese word segmentation system in the Microsoft Research’s multi-language processing
system
Xi’an Jiaotong University Xi’an Jiaotong University Xi’an Jiaotong University
Mainly including 4 aspects: system architecture, data storage model, theme meta search engine, content-based image retrieval 1
Analysis of needs Design of the overall framework Data storage model
2
Digitalization of relics information Relics resources Applications and storage
3
Theme meta search engine Query Agent Web page parser Chinese word segmentation system Theme correlation calculation Standard vector definition of theme
4
Content-based image retrieval Selection of the underlying descriptor Improvement of color histogram Similarity computation User feedback mechanisms
Heritage data-oriented storage and retrieval system
System architecture
Xi’an Jiaotong University Xi’an Jiaotong University Xi’an Jiaotong University
Three-tier structure: (1) User requests and feedback layer, (2) Application logic layer and (3) Data layer
Browser
Users
Request / Display conversio n
Controller JSPs User requests and feedback control Heritage survival data repository Heritage data retrieval related library
. . .
Heritage theme search engine Data processing controller Heritage Data Storage
content- based image retrieval
. . . Application logic layer Data Layer Display Control
