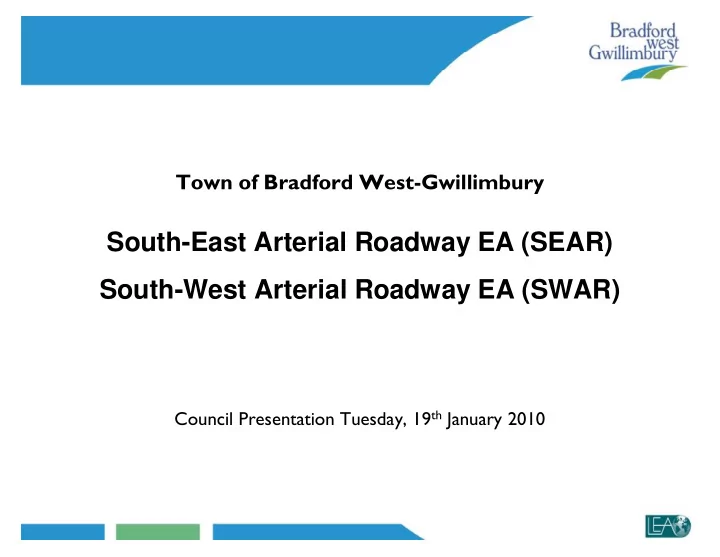

��������������������������������� South-East Arterial Roadway EA (SEAR) South-West Arterial Roadway EA (SWAR) �������������������������������� �� ������������
������� The purpose of PIC # 3 is: • To review preliminary design of the preferred alignment. • To present revised right of way, typical cross sections and intersections. • To provide representative cost estimates for the SEAR and the SWAR. • Have discussions with the public and receive comments.
SOUTHEAST ARTERIAL ROADWAY (SEAR)
��������������������� ���� ������������������� ���!�� This alignment starts at Simcoe Road/Luxury Avenue Intersection follows the property line south of the Community Centre, avoiding the playing fields joins and follows Morris Road and terminates at the Holland St/Dissette St/Bridge St intersection.
�������������"������� ������������������� ���!��
Holland Street/DissetteStreet/ Bridge Street/SEAR Intersection
Simcoe Road/Luxury Avenue/SEAR Intersection
Closure of Morris Road North Side • Morris Road north side will be closed with cul de sac. • The multi purpose trail continues north. • Residents’ access will be via Walker Avenue. cul de sac
Re-open Morris Road South Side to Walker Avenue • Morris Road south side access to Walker Avenue will be re-opened. • Road pavement will be re- surfaced. • Appropriate signs installed.
SOUTHWEST ARTERIAL ROADWAY (SWAR)
��������������������� ���� �����!������������� ��� This alignment starts 500m east of the exit ramp of the future interchange on Hwy 400, follows existing 5th Line turns north on 10 Sideroad to meet 6th Line at a roundabout. Centre left turn lanes are provided where there are cluster of houses.
Sideroad 10 Realignment and Widening to County Road 88 - Plan From the roundabout the alignment continues to follow 10 Sideroad to meet County Road 88. Centre left turn lanes are provided where there are cluster of houses.
Typical Cross-S ection (1) S outhwest Arterial Road
Typical Cross-S ection (2) S outhwest Arterial Road
Typical Cross-S ection (3) S outhwest Arterial Road
Typical Cross-S ection (4) S outhwest Arterial Road
10 Sideroad/Line 6 Roundabout
S ideroad 10 Residents Concerns 1. The Residents along 10 Sideroad between 6th Line and 5th Line were concerned with the preferred alignment. 2. A meeting was called on December 02, 2009 3. LEA explained Municipal Class EA process and evaluation of the alternative alignments with recommendation of the suggested preferred alignments. 4. The Residents concerns: • Check sightlines as the hill is steep. • There are wells in front of the properties. Response: • Driveways grades to meet the Town standards and sight lines checked for stopping sight distance. • Action will be taken to ensure water supply continuity. The Residents were provided with the plans, profile and cross sections at the driveway locations. Another meeting with Residents will be called after the PIC # 3.
Cost E stimate & Next S teps Cost Estimate: • The preliminary capital cost estimate, including land cost, construction cost and design cost for the SEAR is $7.1 million and the SWAR including Sideroad 10 Realignment and Widening to County Road 88 is $15.6 M Next Steps •Refine and finalise the Preliminary Design of the preferred alternative taking into consideration the input/comments received from the public and relevant agencies. •Finalise Environmental Study Reports by end of April, 2010 and place ESR on the Public Record for a 30 day public review period •Address any comment that may arise from the public review process. •Project implementation.
