PET PhD Course 2012 SWITS The Smart Grid and Anonymous Communication Mechanisms Leonardo Martucci Security and Networks Group, ADIT Department of Computer and Information Science About me EE Degree (95-00) + Master in EE (00-02)

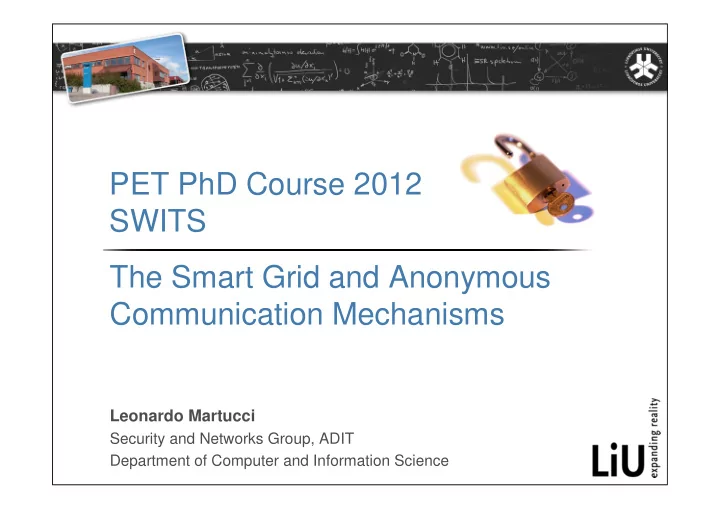

  1. PET PhD Course 2012 SWITS The Smart Grid and Anonymous Communication Mechanisms Leonardo Martucci Security and Networks Group, ADIT Department of Computer and Information Science

  2. About me EE Degree (95-00) + Master in EE (00-02)  University of São Paulo  PhD in CS (04-09)  Karlstad University  Postdoc (09-12)  Center for Advanced Security Research  Technische Universität Darmstadt  Postdoc (12- )  Linköping University  2/32

  3. The Smart Grid: What we already know We already know:  What the Smart Grid is How the Smart Grid is organized Why privacy is a concern in the Smart Grid Standards for the Smart Grid That there are already PET proposals for it 3/32

  4. 4/32 A Sudden Interest

  5. About this presentation Based on the paper:  “ Analysis of Privacy-Enhancing Protocols Based on Anonymity Networks ” F. Borges, L. Martucci and M. Mühlhäuser to appear SmartGridComm 2012 with some bits from: “ A Survey on Privacy-Enhancing Technologies for the Smart Grid ” F. Borges and L. Martucci under submission 5/32

  6. In this presentation General Research Question on Privacy in the Smart Grid  A theoretical PET for the Smart Grid and PET categories  General Anonymous Communication Networks  Computational performance against a general  homomorphic encryption solution * we that work on privacy 6/32

  7. 7/32 * National Institute of Standards and Technology How NIST sees the Smart Grid

  8. How we* see the Smart Grid SP & O information collects produces information information Personal Identifiable Information * we that work on privacy 8/32

  9. How we* see the Smart Grid customer SP & O information collects produces information information Personal Identifiable Information * we that work on privacy 9/32

  10. The Information Flow in the Smart Grid Two information flows with different natures  customer real-time control data SP & O billing data 10/32

  11. 11/32 Real-Time Control Data

  12. Real-Time Control Data (Nonintrusive Appliance Load Monitoring) 12/32

  13. General Research Question Personal Identifiable Information  BUT allow billing according to a given pricing scheme  allow real-time control over the electricity network  13/32

  14. Recalling Two information flows with different natures  customer real-time control data SP & O billing data 14/32

  15. Testing a theoretical PET Assuming a method M that eliminates the source  from real-time control data and direct communication between customer and SP&O customer IF M differentiate SP & O sources, but not identify them control data billing data THEN there is no M that protects privacy 15/32

  16. Considering other options Modify the control data  customer SP & O f (control data) Solutions based on data aggregation,  batteries and micro-generation 16/32

  17. Considering other options NO direct communication between customers and SP&O  o TTP-based solutions o Use partial identities and distinct communication channels according to the nature of the information flow Real-time control data  Billing data  customer pseudonym 2 Partial customer ID identities 17/32

  18. PET Categories for the Smart Grid The 6 different strategies  Symmetric Data Aggregation A. Asymmetric Data Aggregation B. Anonymous Communication Networks C. Schemes based on Trusted Third Parties D. Batteries and Local Generation Schemes E. (Hybrid Schemes) F. * from “ A Survey in Privacy-Enhancing Technologies for the Smart Grid ” 18/32

  19. 19/32 Designing PETs for the Smart Grid SP & O information customer

  20. Today we address The 6 different strategies  Symmetric Data Aggregation A. Asymmetric Data Aggregation B. Anonymous Communication Networks C. Schemes based on Trusted Third Parties D. Batteries and Local Generation Schemes E. (Hybrid Schemes) F. * from “ A Survey in Privacy-Enhancing Technologies for the Smart Grid ” 20/32

  21. Anonymous Communication Networks and the Smart Grid Established concept + new application scenario  The objective: sender anonymity towards the SP&O  Secure Session 21/32

  22. The General Solution: Partial Identities and Anonymous Communication begin secure session group ID SP & O customer ID end secure session Group ID is used for geographical reasons  22/32

  23. The relation between sets of customers, IDs, pseudonyms and secure sessions secure sessions customer ID group ID 23/32

  24. How many messages per session? one secure session only privacy tends to zero  1 pseudonym for all messages  one secure session = one key agreement  one secure session per message maximum privacy  1 pseudonym per message  n messages = n key agreements  maximum computational cost (!)  24/32

  25. Simulation: Measurements and Sessions Processing time and measurements per session (obviously)  25/32

  26. Analysis: Establishing Secure Sessions We analyze and compare the computational performance of  a general solution based on homorphic encryption (HF)  customer: 2.i. E + i. M E = exponential cost sp&o: (i-1). M M = multiplication cost a solution based on a Diffie-Hellman (DH) key agreement (IK) for  customer: 4.j. E sp&o: 4.j. E i = number of measurements j = number of secure sessions 26/32

  27. Analysis: Performance HF and IK (i = j) Homorphic functions perform better for i = j (maximum privacy)  27/32

  28. Analysis: more measurements / sessions Defining an inequality  assuming constant costs for M and E we have i.e. 4 messages / secure session for similar performance 28/32

  29. Simulation: measurements / sessions exponention cost is not constant for the chosen bit-lenghts  10-bit message, 1024-bit for all other HF parameters 1024-bit for DH parameters (modulo 2048 bits) 29/32

  30. Conclusions There are different PET strategies for the Smart Grid  One are the anonymous communication networks.  it is about their core (how messages are forwarded)  but also about their end-nodes (computational costs) We compared the computational cost for end nodes in:  building secure sessions for a general anon. comm. net.  and compared against a general homomorphic encr. solution 30/32

  31. A final note (again!) Based on the paper:  “ Analysis of Privacy-Enhancing Protocols Based on Anonymity Networks ” F. Borges, L. Martucci and M. Mühlhäuser to appear SmartGridComm 2012 with some bits from: “ A Survey on Privacy-Enhancing Technologies for the Smart Grid ” F. Borges and L. Martucci under submission 31/32

  32. 32/32 leonardo.martucci@liu.se

  33. 33/32
