IEEE International Symposium on Circuits and Systems (ISCAS2009) 24-27 May 2009, Taipei, Taiwan Efficient Inter Mode Decision for H.263 to H.264 Video Transcoding Using Support Vector Machines Speaker: Prof. Wan -Chi Siu Xuan Jing * , Wan-Chi

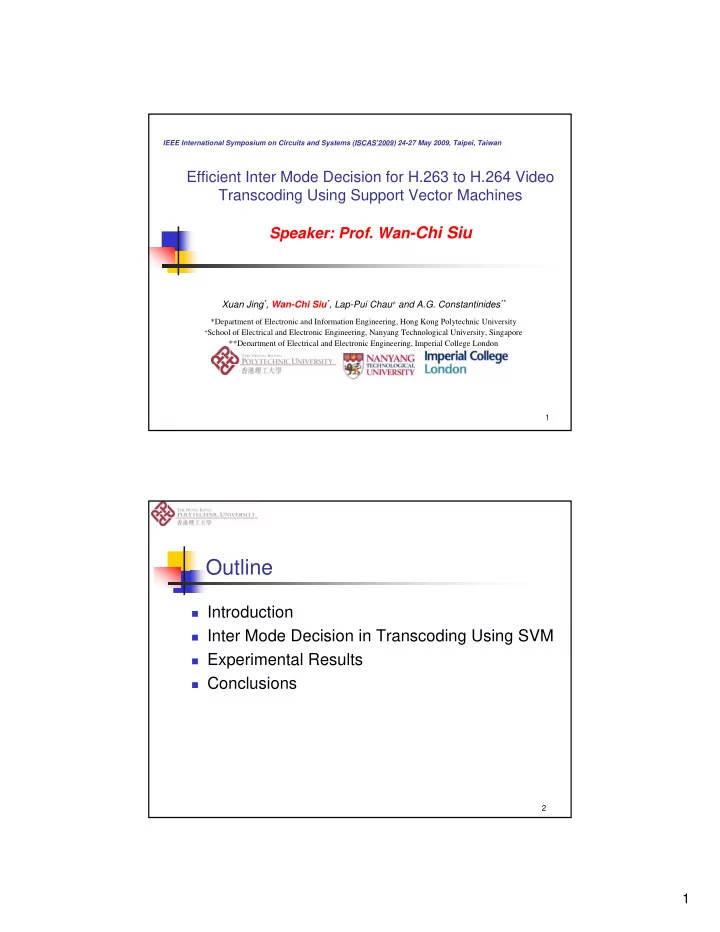

  1. IEEE International Symposium on Circuits and Systems (ISCAS’2009) 24-27 May 2009, Taipei, Taiwan Efficient Inter Mode Decision for H.263 to H.264 Video Transcoding Using Support Vector Machines Speaker: Prof. Wan -Chi Siu Xuan Jing * , Wan-Chi Siu * , Lap-Pui Chau + and A.G. Constantinides ** *Department of Electronic and Information Engineering, Hong Kong Polytechnic University + School of Electrical and Electronic Engineering, Nanyang Technological University, Singapore **Department of Electrical and Electronic Engineering, Imperial College London 1 Outline  Introduction  Inter Mode Decision in Transcoding Using SVM  Experimental Results  Conclusions 2 1

  2. Introduction H.264 Interframe Mode Decision  Inter block partition  Candidate MB modes in P-frame      SKIP, Intra-4 4, Intra-16 16,   mode      Inter-16 16, Inter-16 8, Inter-8 16, Inter-8 8  3 Introduction (cont.) Lagrangian RD cost function in H.264:       J s c ( , ,mode| QP , ) SSD s c ( , ,mode| QP ) R s c ( , ,mode| QP ) mode mode The basic idea of fast mode decision in H.264 is to select the coding mode that achieves the best RD performance without searching all the modes , leading to complexity reduction. Objectives of proposed mode decision method for transcoding  Making use of the information from H.263 decoding process  to predict the H.264 Inter block coding mode for each MB. SVM-based mode prediction to early reject unlikely modes in  order to achieve complexity saving 4 2

  3. Inter Mode Decision in Transcoding Using SVM Proposed H.263 to H.264 transcoder with fast Inter  mode decision 5 Inter Mode Decision in Transcoding Using SVM (cont.) Support vector machines (SVM)  Based on a training set of examples with class labels and several  attributes , the SVM constructs a decision rule which can be used predict the class lables of new input data given only attributes. In H.263 to H.264 transcoding:  -- Class labels correspond to the optimal MB modes in H.264 -- Attributes correspond to extracted MB features from H.263 6 3

  4. Inter Mode Decision in Transcoding Using SVM (cont.) Recall the SVM problem formulation: (e.g. binary classification)  y   y x {1, 1} ( , ) Given a training set of and a vector such that y  i i i (to minimize the complexity (large margin) and training error ) 1 N    w w T min 2 C i w ξ , , b C : Error penalty parameter  i 1 N : total number of training data      w is the normal vector perpendicular to w T x s.t. ( ( ) ) 1 , y b the hyperplane and  i are slack i i i variables    0, 1,.... i N i Four extracted features from H.263 as attributes:  Some terms MB mode in H.263 {Skip, Intra, Inter16x16, Inter8x8} Mean value of the MB residue Variance of the MB residue The number of non-zero AC coefficients of the MB, i.e. nzcoef 7 Inter Mode Decision in Transcoding Using SVM (cont.)  SVM offline training process Based on free libSVM* software  Four typical test sequences (Foreman, Stefan, Salesman,  News) were firstly encoded and decoded by H.263 codec and then re-encoded by H.264 encoder Use RBF (radial basis function) kernel in SVM  Some terms Use cross-validation to find the best penalty parameter, C,  and the kernel parameter Cross-Validation * C.-C. Chang and C.-J. Lin, LIBSVM: a library for support vector machines. Software available at http://www.csie.ntu.edu.tw/~lin/libsvm 8 4

  5. Inter Mode Decision in Transcoding Using SVM (cont.)  SVM training results A few types of classification considered:  -- Two-class classification {Skip, non-Skip} -- Three-class classification {Skip, Intra, Inter} -- Four-class classification {Skip, Intra, InterL, P8x8} (InterL includes Inter16x16, Inter16x8 and Inter8x16) Prediction accuracy of SVM classifier  More than 80% accuracy is achieved. In our proposed transcoder, a few possible modes will be further added to the prediction mode list of the four-class SVM classifier output. 9 Inter Mode Decision in Transcoding Using SVM (cont.) Summary of the proposed Inter mode decision for transcoding  10 5

  6. Experimental Results  Comparison of Inter mode decision algorithms for transcoding The H.264 with full search mode decision is used as benchmark for comparison Average -0.02 0.37 -53.14 -0.03 0.61 -73.50 Alg in Literature 11 Experimental Results (cont.)  R-D performance comparison Mother&Daughter Coastguard 12 6

  7. Conclusions  Proposed fast Inter mode decision for H.263 to H.264 video transcoding.  Using selected features from H.263 to predict possible candidate modes in H.264 inter mode decision.  SVM-based classifier is used for mode prediction  Up to 77% complexity reduction is achieved with similar RD performance. Adv. & Disadv. 13 Thank You! 14 7
