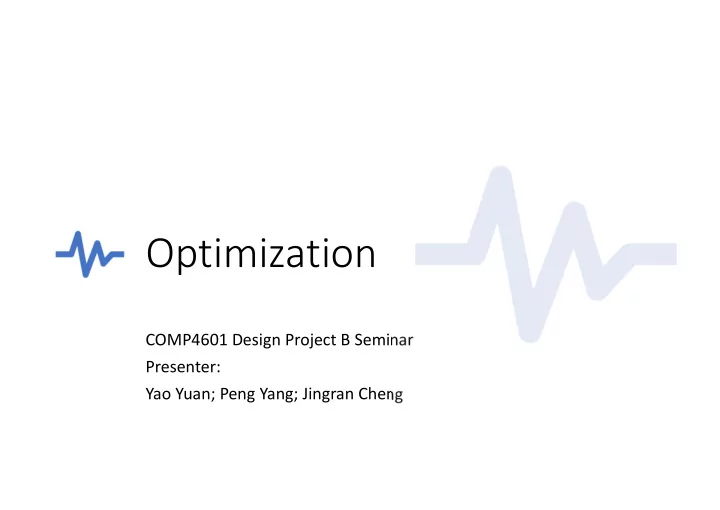

Optimization

COMP4601 Design Project B Seminar Presenter: Yao Yuan; Peng Yang; Jingran Cheng

Motivation & Background

Zero Phone iphone XS

NP-Complete Problem

• NP problem stands for problems that run in Non-

deterministic Polynomial time.

• A problem X that is in NP is also in NP-Complete if and only if every
• ther problem in NP can be quickly (i.e. in polynomial time)

transformed into X.

• Existing methods to solve NP-complete problems:
• Iterate through all the possible solutions to find the answer

which can be very slow

• Using greedy method but may ends up into a local optima.
• Therefore, we optimize these methods to achieve a better

performance and result by introducing some optimization algorithms.

Literal Survey

• A number of heuristics have been explored to optimize the problem
• Genetic Algorithms
• Simulated Annealing
• Tabu Search

Genetic Algorithms

• GA is a powerful and widely used stochastic search based algorithm.
• GA is an effective technique to solve combinatorial optimization problems,

which is known to be non-deterministic in nature and are associated with a large combination of feasible solution space or search space.

• it has been demonstrated that GA is effective in avoiding the local optimal

solution and achieves results close to the global optima.

Genetic Algorithms

• The possible solutions to the problem under consideration are

encoded as a array of finite length, referred to as a chromosome.

• Initial Population: first set of potential solutions is called the initial

population.

• Evaluate Fitness: The quality of each chromosome is assessed by an

evaluation function. This determines the fitness of the chromosome.

• Reproduction: Based on the fitness of the individual, the next

generations of possible solutions are created in the process of reproduction.

• Crossover: it creates new individuals by copying parts of two
• ther individuals.
• Mutation: it introduces random transformations to the existing

chromosome and creates a new individual.

• Termination criteria: The algorithm terminates when the fitness

function stabilizes after iterating over a predetermined number of generations.

Use GA to find optimization on hardware and software partition

Optimization for a System

• n a Chip (SoC) application
• Software devices
• General-Purpose Processors (GPP) ✅
• Hardware devices
• Application Specific Integrated Circuits (ASIC)
• Field Programmable Gate Array (FPGA) ✅
• It is reconfigurable => more generic
• Partial reconfiguration in hardware

has also been used to enhance resource utilization

Partition by GA

Chromosome:

Length is determined by the total number of tasks (nodes) in the task graph. trinary values array is used to classify tasks on hardware, reconfigurable hardware and software.

• A ‘0’ represents software
• A ‘1’ represents hardware with fixed configuration
• A ‘2’ represents reconfigurable hardware

Initial Population: Fitness function:

Consider many underlying factors:

• inter-processor communication overhead
• time overhead is on account of memory–FPGA and

memory–GPP communication which is absent in case

• f all-hardware and all-software design approaches
• reconfiguration requires additional time and power

to reconfigure the resource randomly select a chromosome

Partition by GA

• Reproduction:
• A single point crossover is adapted.
• Mutation operation, in case of

partitioning, moves a task randomly from hardware to software or reconfigurable hardware, or vice versa.

• Terminate Criteria
• GA terminates after executing a

predetermined number of iterations (generations).

A sample task graph

Interesting results

Case1: SW and fix configuration HW only Case2: SW and HW: half fixed and half reconfigurable For power critical applications, the choice

• f reconfiguration may be avoided, since its

introduction only deteriorates power. For time critical applications, Case2 has slightly better performance.

Interesting results

Among the hardware resources utilized, the reconfigurable resources outnumber preconfigured hardware. This depicts the variation in the resource utilization in hardware and software elements, depending on the objective applied.

Simulated annealing -- Background

In metallurgy and materials science, annealing is a heat treatment that involving heat and controlled cooling. Annealing occurs by the diffusion of atoms within a solid material, so that the material progresses towards its equilibrium state. Heat increases the rate of diffusion by providing the energy needed to break bonds. This alteration to existing dislocations allows a metal object to increasing its ductility.

Simulated annealing – Steps involved in metallurgy

A metal is heated to a high temperature The metal is gradually cooled on a specific schedule As the metal cools, its atoms settle into an optimal crystalline structure Annealing improves the cold-working properties of metal

Simulated annealing – Metropolis algorithm

• Metropolis introduced a simple algorithm that can be used to provide an

efficient simulation of a collection of atoms in equilibrium at a given temperature.

• In each step of this algorithm, an atom is given a small random

displacement and the resulting change ΔE, in the energy of the system is computed.

• Calculate the probability that the configuration is accepted using the

formula bellow.

∆

• Where E is the internal energy at temperature T, k is Boltzmann constant

Simulated annealing – Algorithm inspired by annealing

• Is a probabilistic technique

for approximating the global

• ptimum of a given function.
• Inspired by annealing in

metallurgy, slowly decrease in the probability of accepting worse solutions

How simulated annealing works?

NP- Complete Problem

Physical Design Of Computers

• Partition
• Placement
• Wiring

Partition

Decomposition of a complex system into smaller subsystem. Each subsystem can be designed independently Decomposition scheme has to minimize the interconnections between the subsystems Decomposition is carried out hierarchically until each subsystem is of manageable

Partitioning Example

• Partition 1: 15 gates
• Partition 2: 16 gates
• Partition 3: 17 gates

Delay Implications in different level

• Between blocks in chip: 1x
• Between chips in board: 10x
• Between boards in system: 20x

Simulated Annealing Applied to Partition

Taken the logic design of IBM 370 and considered partitioning it into two chips.

Placement

• Poor placement requires larger area
• Interconnection increases
• Also results in performance degradation

An important step in physical design cycle

• Reduce the overall wire length

It is the process of arranging a set of modules on the layout surface

Affecting on Wirelength

Wirelength = 10 Wirelength = 12

Simulated Annealing Apply to Placement

• Ninety-eight chips on the IBM

3081

• Chips are identified by number

( I to 100 without 20,100)

• Different pattern of small

squares represents different logic function.

• The numbers at the left and

lower edges indicates the net- crossing of the vertical and horizontal wires.

Wiring

• Two classes of moves that

maintain the minimum wirelength

• L move
• Z move

Results Comparing

• Random assignment with L

moves

• Aligning wires in the

direction of least congestion

• Simulated annealing with L

moves only

• Annealing with Z-moves

Example

• Steve Jobs : “I'm gonna see it!

I want it to be as beautiful as possible, even if it's inside the

• box. A great carpenter isn't

going to use lousy wood for the back of a cabinet, even though nobody's going to see it.”;

ANY QUESTION
