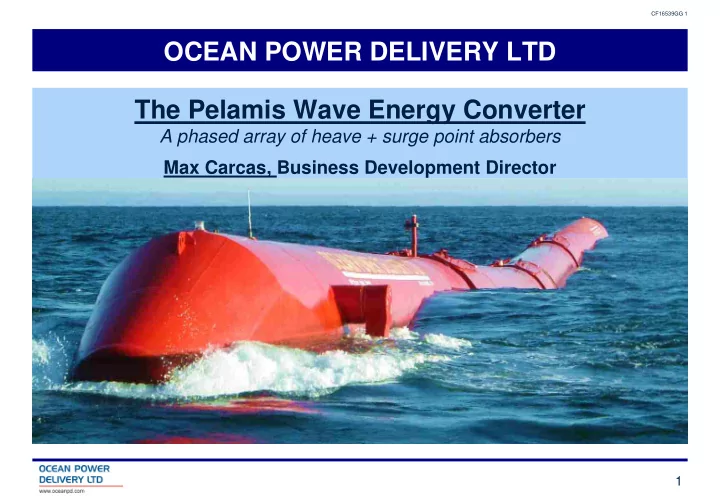

CF16539GG 1 OCEAN POWER DELIVERY LTD The Pelamis Wave Energy Converter A phased array of heave + surge point absorbers Max Carcas, Business Development Director 1 CF16539GG 1 Pelamis WEC technology - CONCEPT Articulated cylinder Swings


  1. CF16539GG 1 OCEAN POWER DELIVERY LTD The Pelamis Wave Energy Converter A phased array of heave + surge point absorbers Max Carcas, Business Development Director 1

  2. CF16539GG 1 Pelamis WEC technology - CONCEPT � Articulated cylinder � Swings head-on to incident waves � 4 x main segments, 3 x joints � Wave induced joint motion resisted to absorb power � 140m long, 3.5m diameter � 750kW rated power � Capacity factor 0.25-0.4 2

  3. CF16539GG 1 Pelamis WEC technology – POWER TRAIN � 3 x 2-axis, 250kW rated ‘POWER CONVERSION MODULES’ � Hydraulic rams pump fluid into smoothing accumulators � Hydraulic motors drive induction generators to generate STEADY OUTPUT � PROVEN, AVAILABLE & EFFICIENT TECHNOLOGY & COMPONENTS 3

  4. CF16539GG 1 Pelamis WEC technology - Features PELAMIS Features � Offshore deployment � Inherent survivability � Highest power capture/unit weight � Available technology � INDEPENDENTLY VERIFIED � Forecastable output � Negligible visual intrusion � Minimal environmental impact � Minimum on-site construction work � Off-site maintenance 4

  5. CF16539GG 1 5 Experimental and numerical modelling

  6. CF16539GG 1 Pelamis WEC technology – SURVIVABILITY � Small cross-section, finite length, streamlined form, compliant moorings � Self-limiting ‘ hydrostatic loading ’ => limits absorbed power in large waves � Almost invisible to ‘ hydrodynamic loading ’ in large seas � Too short to react against extreme storm waves 6

  7. CF16539GG 1 7 Extreme ‘100 year’ wave – 28m wave height

  8. CF16539GG 1 Full-scale production prototype - Development 1999 2000 2001 2002 2003 2004 Onwards Concept development Primary R&D & modelling 7th-Scale prototype Full-scale R&D & design Full-scale joint test Production prototype Cost reduction & performance enhancement Rigorous, staged & efficient R&D 8

  9. CF16539GG 1 9 Full-scale operation

  10. CF16539GG 1 Production prototype – Specifics � 750kW production prototype � Outsourced fabrication with assembly and operation undertaken by OPD � Proven company processes – have successfully ‘prototyped OPD’ � Launched and tested April 2004 � 4 sets of sea trials � Installed at EMEC August 2004 � 1,000 hours operation recorded � Concept, handling, operation and control confirmed � Initial teething problems resolved � Power capture and conversion in line with prediction 10

  11. CF16539GG 1 11 OCEAN POWER DELIVERY LTD PROJECTS

  12. CF16539GG 1 Enersis – Project #1 Enersis � Portugal’s largest developer of renewable projects � Subsidiary of Semapa � Aim to be Portugal’s leading wave developer Project phase 1: � Three Pelamis P1A machines � 2.25 MW � 5km off Aguçadoura � 50m water depth � Cable + substation in place 12

  13. CF16539GG 1 Enersis – Project expansion Phase 1 � Three Pelamis P1A 750KW machines � Production underway � Permitting and consents secured Phase 2 � Letter of intent � Expand project to 24MW � Grid connection rights secured Phase 3 � Multi-site deployment 13

  14. CF16539GG 1 Production for Portugal Order – 3 x P-1A 750kW machines Main tube fabricator: Camcal Main tube castings: Goodwins Power module fabricator: RDI Hydraulic rams: Hystat Accumulators: FCH Generator Pack: Hytec Assembly/commissioning: OPD Production of 3 machines progressing to cost and schedule 14

  15. CF16539GG 1 15 Ross Deeptech - Stonehaven

  16. CF16539GG 1 16 Fife energy park - Methil

  17. CF16539GG 1 17 Camcal - Lewis

  18. CF16539GG 1 SCOTLAND Scotland Major international utility UK’s largest wind developer Developer of UK’s first offshore and Europe’s largest wind-farm (700MW) in Western Isles 2000m - Consortium development - Plan: phased 22.5MW wave farm - Grid connection applied for - Target: first stage 2005/6 - Key DTI/Scottish Executive market enablement mechanisms 5 0 0 m 18

  19. CF16539GG 1 South West England Wave Hub � Cornwall � £1.5m Consenting and permitting � 20MW (30MW ultimately) � Initially allocated in 5MW tranches � Anticipated 2007 Ocean Prospect � Expression of interest for 5MW at Wave Hub � In discussion about larger UK project � Overseas opportunities 19

  20. CF16539GG 1 UNITED STATES United States Electrical Power Research Institute - Public/private project part funded by DOE, NREL and individual states - Project: five state wave energy sites in Maine, Oregon, Washington, Hawaii, Massachusetts + city of San Francisco - Pelamis selected by EPRI as system currently recommended for deployment. - Target installation 2007 Pelamis Demo Site - Funding for ocean energy approved in recent Energy bill 20

  21. CF16539GG 1 21 OCEAN POWER DELIVERY LTD MARKET POTENTIAL

  22. CF16539GG 1 Global market � WORLD > 2000 TWh/yr, £500bn CAPEX (c.f. existing hydro & nuclear) � eg UK > 80 TWh/yr (~20%), >£20bn CAPEX � eg Portugal > 12 TWh/yr (~25%), >£5bn CAPEX 22

  23. CF16539GG 1 Cost barriers Cost reduction drivers: - Technological advances - Cost of capital CAPITAL COST - Economies of scale WITH CAPACITY OPENING COST FOR PELAMIS Source: European Commission ATLAS 23

  24. CF16539GG 1 Cost reduction – Driving down the costs Time Rapid Learning Rapid Learning 500 500 20 20 457 457 Ordered capacity per year (MW) Ordered capacity per year (MW) A P 400 400 353 353 15 15 Cost of energy (p/kWh) Cost of energy (p/kWh) C D A S Volume Production Volume Production 279 279 300 300 Economies of Scale Economies of Scale Innovation Standardization C D 10 10 216 216 200 200 Continuous A P 110 110 5 5 Improvement C D 100 100 67 67 Pilot Projects Pilot Projects 42 42 Mature Learning Mature Learning 24 24 16 16 4 4 0 0 0 0 A P 2004 2004 2005 2005 2006 2006 2007 2007 2008 2008 2009 2009 2010 2010 2011 2011 2012 2012 2013 2013 2014 2014 C D Ordered capacity per year (MW) Ordered capacity per year (MW) Cost of energy (p/kWh) Cost of energy (p/kWh) A S Standardization Innovation C D Continuous A P Cost Reduction Process Improvement C D � Rapid but controlled innovation A P � Freeze design for production C D � Define and optimize production process A S Innovation Standardization C D � Develop, execute and assess procurement/production plan Continuous A P � Deliver high quality, on time, minimum cost Improvement C D � Efficient feedback of experience 24

  25. CF16539GG 1 Other potential market opportunities � Off grid � Oil and gas – generation � Oil and gas – pumping � Desalination 25

  26. CF16539GG 1 26 OCEAN POWER DELIVERY LTD
