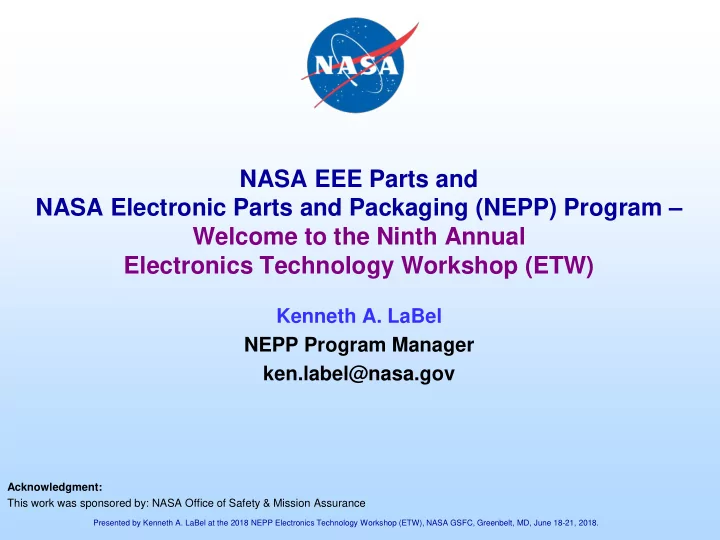

NASA EEE Parts and NASA Electronic Parts and Packaging (NEPP) Program – Welcome to the Ninth Annual Electronics Technology Workshop (ETW) Kenneth A. LaBel NEPP Program Manager ken.label@nasa.gov Acknowledgment: This work was sponsored by: NASA Office of Safety & Mission Assurance Presented by Kenneth A. LaBel at the 2018 NEPP Electronics Technology Workshop (ETW), NASA GSFC, Greenbelt, MD, June 18-21, 2018.

Acronyms • Three Dimensional (3D) • Headquarters (HQ) • Point of Contact (POC) • The Aerospace Corporation (Aerospace) • Integra Technologies, LLC (Integra) • Reliability and Maintainability (R&M) • Air Force (AF) • Joint Electron Device Engineering Council • Vanderbilt University's Notional RHA (JEDEC) Tool (R-GENTIC) • Air Force Research Laboratory • Jet Propulsion Laboratories (JPL) • Radiation Hardened (RH) • Amkor Technology • Johnson Space Center (JSC) • Radiation Hardness Assurance (RHA) • Ames Research Center (ARC) • Langley Research Center (LaRC) • Society of Automotive Engineers (SAE) • Arctic Slope Regional Corporation (ASRC) Federal Space and Defense (AS&D) • Lawrence Berkeley National Laboratories (LBNL) • Space Asset Protection Program (SAPP) • Bayesian Networks (BN) • Mission Assurance Improvement Workshop • Systems Engineering and Assurance (MAIW) Modeling (SEAM) • Body of Knowledge (BOK) • Model-Based Mission Assurance (MBMA) • Single Event Effect (SEE) • Capability Leadership Teams (CLTs) • Missile Defense Agency (MDA) • Single Event Upset (SEU) • Complementary Metal Oxide Semiconductor (CMOS) • Michigan State University (Michigan) • Silicon Carbide (SiC) • Carnegie Mellon University (CMU) • Marshall Space Flight Center (MSFC) • Air Force Space and Missile Systems Center (SMC) • Commercial Off-the-Shelf (COTS) • Michigan State University (MSU) • Subject Matter Expert (SME) • Cosmic Ray Effects on Micro-Electronics (CRÈME) • National Aeronautics and Space Administration (NASA) • SSL is a business unit of Maxar • Defense Logistics Agency (DLA) Technologies (SSL) • NASA Electronic Parts Assurance Group (NEPAG) • Department of Defense (DoD) • NASA Space Technology Mission • NASA Electronic Parts and Packaging (NEPP) • Department of Energy (DOE) Directorate (STMD) Program • Electrical, Electronic, and Electromechanical (EEE) • SUNY Polytechnic Institute (SUNY) • NASA Engineering and Safety Center (NESC) • NEPP Electronics Technology Workshop (ETW) • University of Surrey (Surrey) • United States Navy National Reconnaissance • Field Programmable Gate Array (FPGAs) Office (NRO) • System Modeling Language (SysML) • MSU Facility for Rare Isotope Beams (FRIB) • National Superconducting Cyclotron Laboratory • Texas A&M University (TAMU) • Gallium Nitride (GaN) (NSCL) • To Be Determined (TBD) • Government-Industry Data Exchange Program • NASA Space Radiation Laboratory (NSRL) • Texas Instruments (TI) (GIDEP) • NASA Office of the Chief Engineer (OCE) • Technical Operating Reports (TORs) • Glenn Research Center (GRC) • NASA Office of Safety and Mission Assurance • Goddard Space Flight Center (GSFC) (OSMA) • Goal Structuring Notation (GSN) Presented by Kenneth A. LaBel at the 2018 NEPP Electronics Technology Workshop (ETW), NASA GSFC, Greenbelt, MD, June 18-21, 2018. 2

Outline Meeting Introduction and Logistics • NEPP Program • – Brief Diatribe: NASA Electrical, Electronic, and Electromechanical (EEE) Structure – NEPP Program Structure NEPP 2018 • – NEPP Overview – Changes in 2018 – Key efforts, concerns, and status NASA Electronics Parts Assurance Group (NEPAG) • Summary • Presented by Kenneth A. LaBel at the 2018 NEPP Electronics Technology Workshop (ETW), NASA GSFC, Greenbelt, MD, June 18-21, 2018. 3

Ninth Annual ETW! • Annual meeting – Originally, “just” a Program Review – Has morphed intro a Program Review with multiple focused and timely technical and infrastructure topics • Examples include: Space Radiation Test Facilities, Copper Bond Wires, 2.5/3D Packaging, Small Mission Success, and more! • Four full days – All presentations will be posted on the NEPP website after appropriate release by presenters and their organizations • Long breaks and on-your-own lunch periods to foster networking opportunities • Coffee is supplied by hosts (but Starbucks across the street) • >350 registrants this year Presented by Kenneth A. LaBel at the 2018 NEPP Electronics Technology Workshop (ETW), NASA GSFC, Greenbelt, MD, June 18-21, 2018. 4

NASA EEE Parts – New Structure • New NASA EEE Parts Manager: – Leads efforts related to EEE Parts workforce and capabilities – Jonathan Pellish is the new EEE Parts Manager* • NEPP remains virtually the same: – Owns the EEE parts assurance processes (and related technical efforts) • Increased NASA-wide documents – NASA Standard 8739.10, Released – EEE-INST-002 update and unification underway* * = on the agenda Presented by Kenneth A. LaBel at the 2018 NEPP Electronics Technology Workshop (ETW), NASA GSFC, Greenbelt, MD, June 18-21, 2018. 5

General NASA EEE Parts Interfaces Agency EEE Parts Assurance Development Facilities Office of Safety Office of the Mission & Mission Flight Projects Chief Engineer Support Assurance NEPP Capability Field Centers Space Workmanship Leadership Environments Quality Model Based Mission Mission Testing Assurance (MBMA) NESC Directorates Management Reliability and Maintainability (R&M) Presented by Kenneth A. LaBel at the 2018 NEPP Electronics Technology Workshop (ETW), NASA GSFC, Greenbelt, MD, June 18-21, 2018. 6

NEPP Mission Statement Provide NASA’s leadership for developing and maintaining guidance for the screening, qualification, test, and reliable use of Electrical, Electronic, and Electromechanical (EEE) parts by NASA, in collaboration with other government agencies and industry. Note: The NASA Electronic Parts Assurance Group (NEPAG) is a key portion of NEPP - Standards, working groups, guidance, problem parts, … Presented by Kenneth A. LaBel at the 2018 NEPP Electronics Technology Workshop (ETW), NASA GSFC, Greenbelt, MD, June 18-21, 2018. 7

NEPP Program – Organization Chart NEPP Program Executive, John Evans/OSMA HQ NESC, EEE Parts Manager, Multiple Jonathan Pellish, NEPP Program GSFC Manager, Ken LaBel/GSFC NEPP Deputy Program NEPAG Manager, Manager, Mike Sampson/GSFC Peter Majewicz (acting) Senior NEPAG Staff, Senior NEPP Staff, Shri Agarwal/JPL, Jonathan Pellish/GSFC Jay Brusse, GSFC/AS&D NEPP Program Support, NEPP Sys Admin, Freda Kagere/GSFC – resources, Martha O’Bryan, GSFC/AS&D Carl Szabo/GSFC/AS&D Donna Cochran, GSFC/AS&D NEPP GSFC POC, NEPP JPL POC, NEPP MSFC POC, NEPP LaRC POC, NEPP GRC POC, NEPP JSC POC, Chris Green Doug Sheldon Jeff Martin (acting) John Pandolf Kristen Boomer Carlton Faller Presented by Kenneth A. LaBel at the 2018 NEPP Electronics Technology Workshop (ETW), NASA GSFC, Greenbelt, MD, June 18-21, 2018. 8

NEPP - Charter Agency Priorities – Technology Evaluation Independent Support • Advanced /new EEE • Commercial Crew parts/technologies • Small Mission • Ex. Advanced CMOS, Reliability GaN, SiC • Coordination with • Working Groups (NASA NASA Consolidation, , government, CLTs, NESC, STMD, Trusted and RH aerospace) SAPP, and radiation Electronics • Screening/qualification/ block buy test/usage guidelines • Collaboration with EEE Parts • Collaborate with • Partnering: NASA, NASA and other Infrastructure DoD/DOE on space Government Agencies, Agency Supply Chain radiation test • NEPAG Telecons and Industry, University, and Trust/Counterfeit infrastructure International Working Groups Electronics • SME Capabilities Organizations • Communication and • Support DoD efforts Outreach within NASA on Trusted Foundries and to the greater and FPGAs (w/NASA aerospace community STMD and OCE/Space Asset Protection) • Support DoD RH Agency Leadership efforts • NASA Policies and Procedures • Agency Guidelines, Body of Knowledge EEE Parts Problem (BOK) documents, Investigations and Best Practices Mission • Coordination of • Agency/Industry-wide Assurance Government and problems Industry Standards • GIDEP and NASA Alert • Audit Coordination development with AF, NRO, DLA • Partnering within NASA and other Agencies, Industry, University, and International Presented by Kenneth A. LaBel at the 2018 NEPP Electronics Technology Workshop (ETW), NASA GSFC, Greenbelt, MD, June 18-21, 2018. 9

NEPP – Product Delivery NASA EEE Parts Policy and Standards Best Practices Government and and Guidelines Industry Standards • Test, usage, Representation screening, • SAE CE-11 and CE-12 qualification JEDEC JC13 • Radiation facility • Aerospace TORs studies NEPP Standard Products Body of • Test, summary, and Knowledge (BOK) audit reports Assurance • Technology and • Conference and product status and workshop gap analysis presentations • Alerts Related task areas: Technology/parts evaluations lead to new best practices, guidelines,… Presented by Kenneth A. LaBel at the 2018 NEPP Electronics Technology Workshop (ETW), NASA GSFC, Greenbelt, MD, June 18-21, 2018. 10
