Landesnetz RLP Educational Network Rhineland Palatinate Rhineland-Palatinate Juergen Weiss Johannes Gutenberg-Universitaet Mainz weiss@uni-mainz.de April 8 2015 SIG-NOC Workshop Stuttgart 1 The Network The Network 4 universities

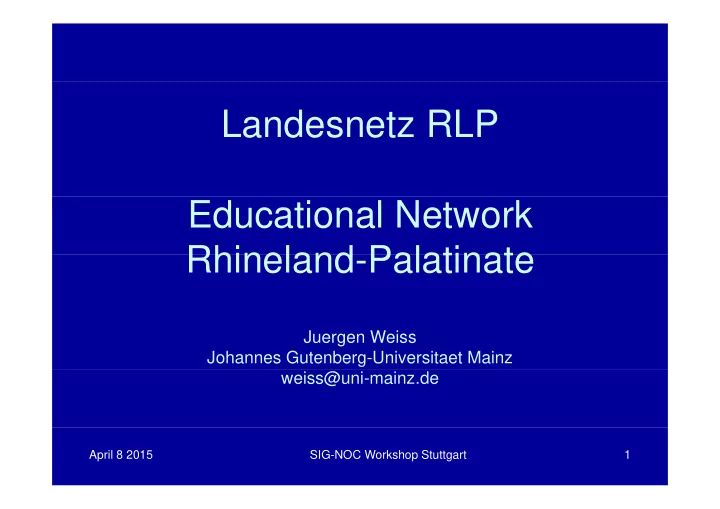

  1. Landesnetz RLP Educational Network Rhineland Palatinate Rhineland-Palatinate Juergen Weiss Johannes Gutenberg-Universitaet Mainz weiss@uni-mainz.de April 8 2015 SIG-NOC Workshop Stuttgart 1

  2. The Network The Network • 4 universities • 7 polytechnical schools (universities of 7 polytechnical schools (universities of applied science) • 4 other 4 th • 25 sites 5 s tes • 600 km of dark fiber • 25 microwave links (regulated spectrum) April 8 2015 SIG-NOC Workshop Stuttgart 2

  3. 3 SIG-NOC Workshop Stuttgart April 8 2015

  4. Uni Mannheim--(18, 9 km) --IFB Speyer---(25,4 km) ------Uni Landau 4

  5. Details Details • Since Jan 1 st 2005 • DWDM with EDFAs and Transponders DWDM with EDFAs and Transponders • Ethernet LAN Switches – Cat 3750 / 3750E – Cat 6500 Sup 720 p • Internet Connectivity in Frankfurt – 2 commercial Upstream Providers 2 i l U t P id – 200 peerings at De-Cix April 8 2015 SIG-NOC Workshop Stuttgart 5

  6. Redesign Redesign • Bandwidth upgrade to 4 x 10 Gbit/s • Device redundancy Device redundancy • MPLS for Layer 2 and Layer 3 VPNs – Cat 6880-X – HP (H3C) 5900 and 5800 ( ) • DWDM SFP+ April 8 2015 SIG-NOC Workshop Stuttgart 6

  7. NOC NOC • 4 full time staff responsible for – Johannes Gutenberg-University network g y (35,000 students) – Bildungsnetz RLP Bildungsnetz RLP – No 24 x 7 • Tools in “historical” order – Openview NNM version 6 p – Cricket – Opennms Opennms April 8 2015 SIG-NOC Workshop Stuttgart 7
