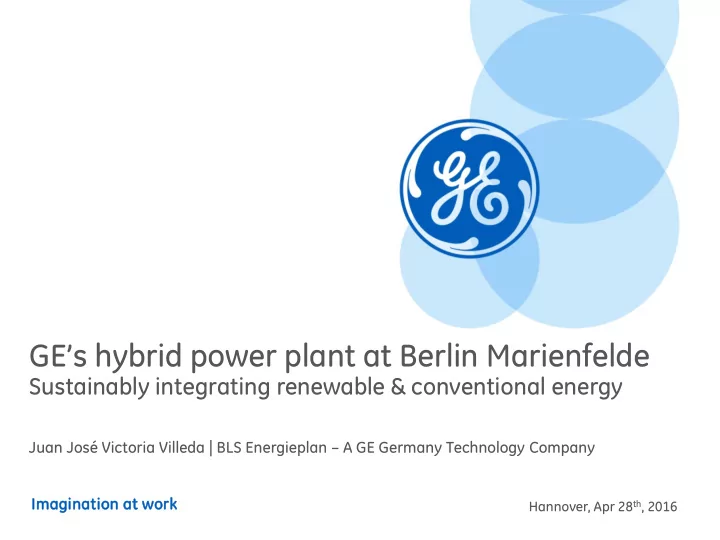

GE’s hybrid power plant at Berlin Marienfelde Sustainably integrating renewable & conventional energy Juan José Victoria Villeda | BLS Energieplan – A GE Germany Technology Company Imagination at w work Hannover, Apr 28 th , 2016
Our view on energy transition The pillars of Energy Transition Climate Protect ction Secu curity of Supply Eco conomics cs Soci cial Acc cceptance ce Avoid GHG emissions Renewables integration Stable economic environment Added value to society Reduce fossil fuel demand Smooth transition Competitive efficiency Society as stakeholder „ Make or break“ 2 Smart Grid Forum | Apr 28, 2016 | Hannover
Our view on energy transition Integrate and harmonize & Renewable Fossile Volatile Zero Emission Controllable Emissions Storage solutions Low emission technology & Decentral Central Unflexible Low € /kW Flexible High € /kW Load following /control Base load restriction Flexibility increase energy / Onsite CHP & Profile Grid Load Demand Supply Onsite generation Grid Integrated infrastructure Wasser Wind Demand Side Management Solar Outcome Durathon Modul On site generation Durathon Durathon Zelle Container selling/Contracting Stromnetz Perform a true transition, not a disruption 3 Smart Grid Forum | Apr 28, 2016 | Hannover
Energy generation concepts - Hybrid power plant Our premisses Photovoltaic c Dece central installation Modular & f & flexible CHP is is co core tech chnology integration Standardized units Heat is a product Easily scalable Reduce grid load Fast installation Low emissions No emissions Plant tailored to customer Tailored solution Flexible & base load capable Applicable in urban areas Delivering a solution in line with the “ Energiewende ” -principles 4 Smart Grid Forum | Apr 28, 2016 | Hannover
Energy generation concepts - Hybrid power plant Synergetic electricity generation Integrate fossil and renewable Combination of CHP and PV • Equilibrate seasonal variations • Max out renewables co consumption • Integrate battery storage • Equilibrate daily/hourly fluctuations • Minimize fuel consumption Integrate heat buffer Renders CHP more flexible • Decouple production and consumption • Maintain grid co connect ction Security of supply • • Optimize energy portfolios • Hot topic: system services Decentral, sustainable, efficient and tailorable to the customer‘s needs 5 Smart Grid Forum | Apr 28, 2016 | Hannover
Energy generation concepts - Hybrid power plant Equilibrating seasonal fluctuations Electricity demand Energy Heat demand Load coverage through seasonal synergies Time 6 Smart Grid Forum | Apr 28, 2016 | Hannover
Energy generation concepts - Hybrid power plant Equilibrating seasonal fluctuations Electricity demand Energy Heat demand CHP thermal Load coverage through seasonal synergies Time 7 Smart Grid Forum | Apr 28, 2016 | Hannover
Energy generation concepts - Hybrid power plant Equilibrating seasonal fluctuations Electricity demand Energy Heat demand CHP thermal CHP electrical Load coverage through seasonal synergies Time 8 Smart Grid Forum | Apr 28, 2016 | Hannover
Energy generation concepts - Hybrid power plant Equilibrating seasonal fluctuations Electricity demand Energy Heat demand CHP thermal CHP electrical PV Load coverage through seasonal synergies Time 9 Smart Grid Forum | Apr 28, 2016 | Hannover
Energy generation concepts - Hybrid power plant Cloudy summer day 10 Smart Grid Forum | Apr 28, 2016 | Hannover
Energy generation concepts - Hybrid power plant Clear summer day 11 Smart Grid Forum | Apr 28, 2016 | Hannover
Energy generation concepts - Hybrid power plant Summer night 12 Smart Grid Forum | Apr 28, 2016 | Hannover
Energy generation concepts - Hybrid power plant Clear winter day 13 Smart Grid Forum | Apr 28, 2016 | Hannover
Energy generation concepts - Hybrid power plant Our pilot in Berlin-Marienfelde General information • Operating since May 2015 Collaborative project • Operated in energy contracting agreement • Components • CHP + Buffer (400 kW el / 491 kW th / 25m³) • Rooftop solar (621 kW) • Battery storage (200 kWh / 100 kW) Contribution to to energy transition 60% electric autarky • CHP covers 73% of heat demand • 30% prime energy savings • • -1,500 t CO 2 /a • LCoE 1.5 ct/kWh below local utility‘s offer • Battery increased PV consumption by 15 MWh 14 Smart Grid Forum | Apr 28, 2016 | Hannover
Energy generation concepts - Hybrid power plant The benefits of hybrid energy solutions CO 2 CO 55% 51% 52% 52% 53% 53% 54% 54% 56% 55% 56% 50% 57% 57% 58% 58% 59% 59% Elect 50% 51% ctrici city 61% 54% 58% 57% 57% 56% 56% 55% 55% 53% 54% 59% 61% 52% 52% 51% 51% 50% 50% 58% 53% 63% 67% 59% 62% 64% 64% 65% 63% 66% 66% 65% 67% 60% 68% 69% 69% 70% 70% Heat 68% 0% Less CO CO 2 emissions … Energetic autarky… Prime energy savings… … by relying on natural gas, …dampens fluctuating costs of …through highly efficient CHP and solar PV prime energy green technology Integrating co conventional Linking energy demand and Load following … and renewables … generation … … is baseline for economic … increases efficiency and … to benefit from daily and efficiency reduces costs seasonal synergies Global applicability of various configurations through GE’s modular technology scope Title or Job Number | XX Month 201X 15
