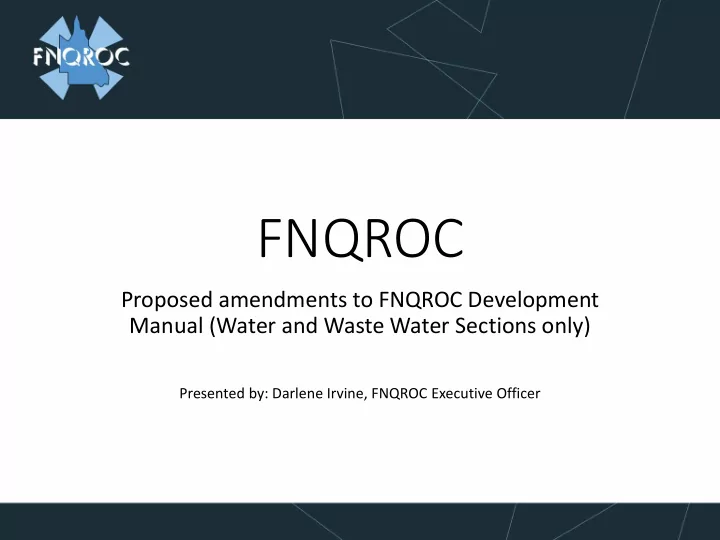

FNQROC Proposed amendments to FNQROC Development Manual (Water and Waste Water Sections only) Presented by: Darlene Irvine, FNQROC Executive Officer 1. Welcome and Introductions 2. Overview of amendments to the manual (Water and Sewer only)

  1. FNQROC Proposed amendments to FNQROC Development Manual (Water and Waste Water Sections only) Presented by: Darlene Irvine, FNQROC Executive Officer

  2. 1. Welcome and Introductions 2. Overview of amendments to the manual (Water and Sewer only) 3. CTM Code presentation - CRC 4. Focus in on areas / sections of interest 5. Amendments to Standard Drawings

  3. • Search function is included on the FNQROC website • New PDF versions will have hyperlinked table of contents • Removed ‘Operational Works’ to limit confusion and referred to Planning Act definition of ‘development’ in the user guide.

  4. • While we’ve recommended to link the operational checklist I believe this will go as IDAS Form 6 does this. • Council may request (during the assessment) the digital ACAD file of the water and sewerage reticulation drawings

  5. • Documents to be provided prior to Pre-Start: • Copy of ‘For construction’ drawings • Pavement Design • As Constructed submission; included DWG file • Early plan sealing requests will only be considered for those stages of development nominated in the development plan. Parts of a stage will not be considered for early plan approval. • Appendix P – reduced requirement for as constructed attributes and split into compulsory and only required if differed to FNQROC specs

  6. • Replaced reference to WSA with CTM Water Alliance Design and Construction Code • CTM Code referenced in the manual • CRC only – changes to Average Daily consumption – from 500 to 400 L/EP/D • Adopted the Darcy-Weisback method over the Hazen-Williams method • Creek crossings included in design Criteria: • Ck crossings are to be in DICL or PE • Arborist report to assess the risk associated with trees within 10m either side of the water main alignment. • New section for building over or near water infrastructure • Marker balls to be used where water reticulation is laid on non-standard alignment

  7. • All irrigation connections to councils water network must be completed by council at the developers cost. (if permitted, an approved subcontractor with council supervision) • Pump Stations – at councils discretion - the provision of a three phase inlet to allow the connection of a mobile generator unit. • Factory acceptance testing is to be undertaken and the designer is to arrange a suitable time and date with Council for testing before the switchboard is installed at site. • Amendments made to CRC local government specific – D6.17 clause removed.

  8. • Incorporation of CTM • Vacuum and pressure sewer schemes are still considered unconventional infrastructure • New section added for building over or near sewerage infrastructure • Amendments made to value in table 7.2, and 7.3 • Property connections into maintenance shafts are not permitted unless in circumstances approved by council • On-site sewerage – new clause – the min separation distance between on- site facilities and water mains is to be 10 meters. • D7.16 General – new clause – where the calculated C1 value is less than 3.5 the pump operation mode is to be duty/assist. 3.5 and greater – is to be duty/standby – needs to be confirmed with Council.

  9. • Well washers not required for CRC • The requirements of fencing of pump stations is to be confirmed with council. • Standby generator is to be contained within a roof structure and wording to include three phase inlet at council discretion. • We ask that the design of the pump station considers measures to prevent damage from vandals and restrict un-authorised access • Factory acceptance testing with council before the switchboard is installed at site. • Table 7.14 – pump motor drive design parameters have been amended, a new item related to sizing of overflow pipe added and we’ve replaced Hazen Williams formula with Darcey-Weisbach formula

  10. • Variable frequency drives should be considered for pump stations that discharge into a common rising main. • Table 7.15 – replaced Hazen Williams formula with Darcey-Weisbach formula • Appendix A – contains addendums to the CTM Code • Appendix B – contains addendums to WSA Code • Amendments to CRC local government specific – deleted clauses D7.13 and D7.25

  11. • CTM Alliance Water Service Design and Construction Code incorporated • Reference documents – WSA 2002 version of Dual Water Supply Systems • Included reference to a number of AS • Included stainless steel as a material • Clarification re ductile iron • Included the ability to use reglass material

  12. • CTM Alliance incorporated • Included ability to use reglass in bedding • Included WSA construction tolerances • Appendix A – references to SEQ Standard drawings • CRC Local Government specific – delete clauses S6.03, S6.21, S6.23

  13. • 43 standard drawings amended or new – available for viewing

  14. • Reminder – we take submissions to amend the manual at any time – these are collated for each review. • Submission on the proposed amendments are due 22 September – d.irvine@fnqroc.qld.gov.au • Seeking legal advice to make the review process quicker and simpler. Hand over to CRC re CTM code.
