El Segundo Energy Center Fast Start Experience Combined Cycle Users - PowerPoint PPT Presentation

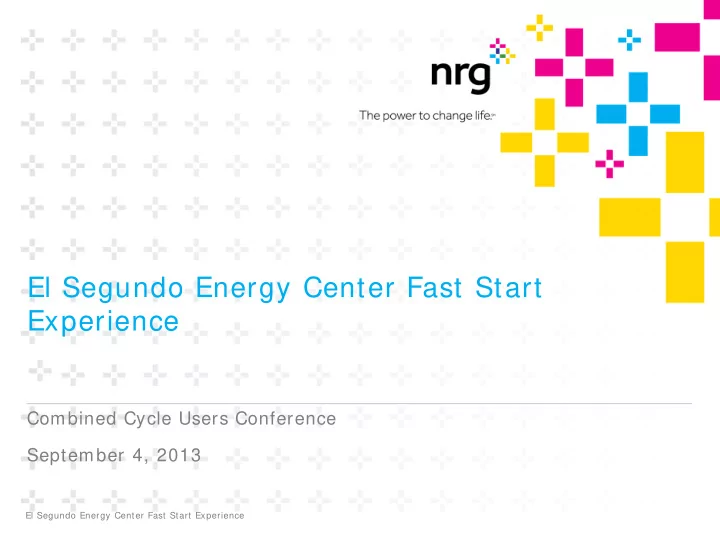

El Segundo Energy Center Fast Start Experience Combined Cycle Users Conference September 4, 2013 El Segundo Energy Center Fast Start Experience Overview Plant Design Variations from conventional CC & unique Fast Start Features


  1. El Segundo Energy Center Fast Start Experience Combined Cycle Users Conference September 4, 2013 El Segundo Energy Center Fast Start Experience

  2. Overview • Plant Design – Variations from conventional CC & unique Fast Start Features • Construction/ Commissioning Experience • Key Influences El Segundo Energy Center Fast Start Experience September 18, 2013 1

  3. Definitions • Fast Start Definition: Time from “Start Initiation” to “Ready for unit operation in AGC mode” Important considerations: —Downtime interval – hot, warm, cold —Permissives —Unit Authority communications • Non-Spin Reserve Definition: Amount of Net Generation at Point of Delivery within 10 min El Segundo Energy Center Fast Start Experience September 18, 2013 2

  4. Single-pressure Non-Reheat HRSG SGT6-5000F (w/ conventional SCR & CO catalyst) GT Exhaust HP Steam Feedwater SST-800 backpressure industrial ST Air Cooled Heat Exchanger Steam Condenser Backpressure (Positive Pressure) El Segundo Energy Center Fast Start Experience September 18, 2013 3

  5. Fast Start Design Features • CT load ramp capability/ optimization • Fast ST Start-up mode – ST stress controller • Piping warm-up strategies • High-Capacity attemperators • Fast Start HRSG HP Section technology • Permissive requirements • Air purge credits • By-pass System El Segundo Energy Center Fast Start Experience September 18, 2013 4

  6. Construction/ Commissioning / Testing • Design issues • QA/ QC during design/ construction to accommodate large temperature transients • Component testing • Commissioning process • Performance testing El Segundo Energy Center Fast Start Experience September 18, 2013 5

  7. Key Influences • 10 min “non-spin reserve” period —Start Permissives, Attainment of purge credit —Controls • Steam Turbine and warm-up and attainment of AGC condition —ST Stress Controller – Bypass operation —Controls —Valve Tuning/ Operation El Segundo Energy Center Fast Start Experience September 18, 2013 6
