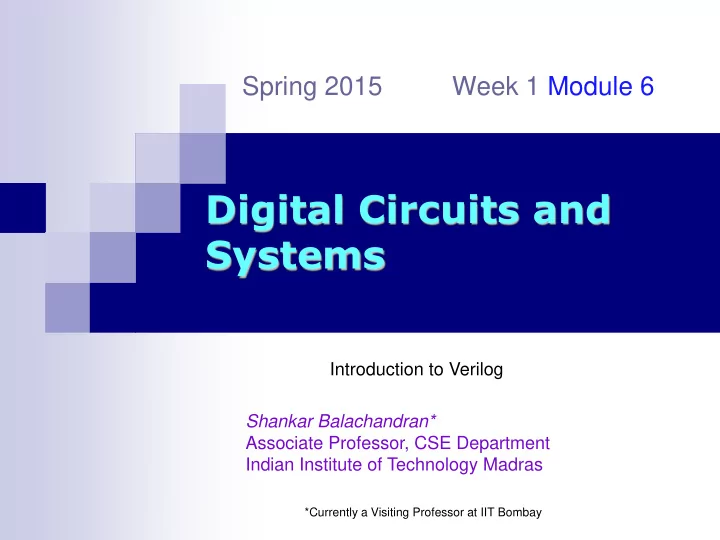

Spring 2015 Week 1 Module 6 Digital Circuits and Systems Introduction to Verilog Shankar Balachandran* Associate Professor, CSE Department Indian Institute of Technology Madras *Currently a Visiting Professor at IIT Bombay Abstraction


  1. Spring 2015 Week 1 Module 6 Digital Circuits and Systems Introduction to Verilog Shankar Balachandran* Associate Professor, CSE Department Indian Institute of Technology Madras *Currently a Visiting Professor at IIT Bombay

  2. Abstraction Levels Adder System Level Shifter Architecture Level Gate Level Transistor Level Silicon Level Introduction to Verilog 2

  3. Design Representation (Example 1)  Multiplexer : Choose one of two inputs based on a control input  Sel : Select line and is a control input  A,B : Data Inputs  Out : Multiplexer Output A Out MUX B Sel Introduction to Verilog 3

  4. Textual Description A Out MUX B Sel  If Sel is `0’, choose A and pass it on to Out  If Sel is `1’, choose B and pass it on to Out  The value of A and B does not matter  Pass both 0’s and 1’s Introduction to Verilog 4

  5. Truth Table Sel A B Out 0 0 0 0 0 0 1 0 0 1 0 1 0 1 1 1 1 0 0 0 1 0 1 1 Boolean Equation 1 1 0 0 1 1 1 1   ฀ ฀ O t u Sel A S l e B Introduction to Verilog 5

  6. Gate Level Description A tmp0 Selbar Sel Out tmp1 B Introduction to Verilog 6

  7. Verilog Description (Netlist) module multiplexer (A, B, Sel, Out); input A, B, Sel; output Out; A tmp0 wire tmp1, tmp0; selbar Sel wire selbar; Out B and (tmp1, B, Sel); tmp1 not (selbar, Sel); and (tmp0, A, selbar); or (out, tmp0, tmp1); endmodule Introduction to Verilog 7

  8. What is Verilog?  Verilog is a Hardware Description Language (HDL)  HDL: A high level programming language used to model hardware.  Hardware Description Languages  have special hardware related constructs.  currently model digital systems and limited analog, and in future can model complete mixed-signal systems also.  can be used to build models for simulation, synthesis and test.  have been extended to the system design level Introduction to Verilog 8

  9. Verilog Language  Concurrent hardware description language  Naturally expresses parallelism in the hardware  Has constructs in it for modeling delays  Similarities in syntax to software languages Introduction to Verilog 9

  10. End of Week 1: Module 6 Thank You Introduction to Verilog 10
