CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019 C I R - PowerPoint PPT Presentation

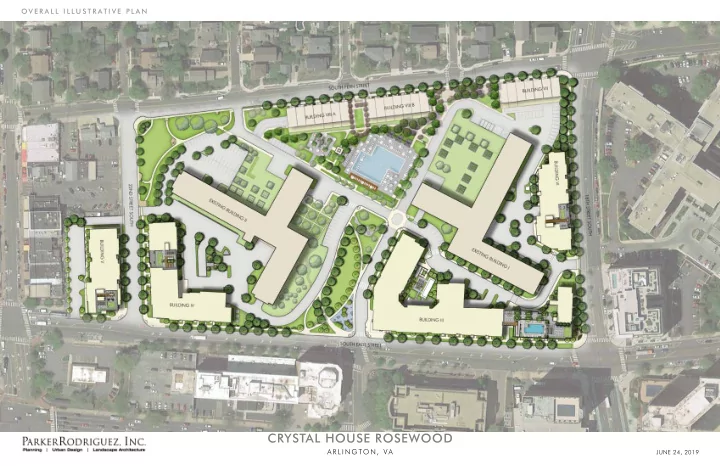

O V E R A L L I L L U S T R AT I V E P L A N CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019 C I R C U L AT I O N A N D A M E N I T Y S PA C E S PEDESTRIAN ROUTE PARK PASSAGE CONNECTOR ROOFTOP AMENITY INTERNAL AMENITY


  1. O V E R A L L I L L U S T R AT I V E P L A N CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019

  2. C I R C U L AT I O N A N D A M E N I T Y S PA C E S PEDESTRIAN ROUTE PARK PASSAGE CONNECTOR ROOFTOP AMENITY INTERNAL AMENITY INTERNAL LANDSCAPING CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019

  3. P U B L I C O P E N S PA C E N E T W O R K RECOMMENDED Park Name Size DefiNeD Park DeSigN recommeNDaTioN Number* (SQ. by builD- PUBLIC OPEN SPACE MAP Sf.)** To liNeS Figure 3.7.3 YES LANDSCAPED SPACE WITH INTERACTIvE ELEMENTS TO ACTIvATE 19 PARK/PLAzA 7,700 (ExISTING) THE SPACE, A PATH, AND SEATING 20 PARK 19,400 NO PARK WITH NEIGHbORHOOD SERvING FACILITIES 1 PROPOSED 12th Street S 17 Park Size Number* (SQ. 2 Sf.)** 33, 353 19 1 14,200 20 26, 681 2 54,500 3 15th Street S t e 18 e r t S 5 l l e B 4 - k r a l C 6 18th Street S 7 Jefferson Davis Boulevard / US1 20th Street S 8 19 t e e 20 e r t v S i r s D d 9 a l a E t s . S y 20 r C 10 11 23rd Street S t e e r 21 t S 12 l l e B 13 - k 22 r a l C 23 26th Street S 24 14 19 25 26 15 16 legend XX PARK NUMbER PUbLIC OPEN SPACE 0 500 1000 CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019

  4. M A j O R C O M M U N I T Y PA R K CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019

  5. M A j O R C O M M U N I T Y PA R K MAJOR PEDESTRIAN ROUTE SECONDARY PEDESTRIAN ROUTE GAMES AND RECREATION GREAT LAWN AND MULTIPURPOSE USE GATEWAY PLAzA AREA DOG RUN AREA CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019

  6. M A j O R C O M M U N I T Y PA R K - M U LT I P U R P O S E L A W N Multipurpose Lawn 11 CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019

  7. M A j O R C O M M U N I T Y PA R K - G AT E W AY P L A Z A Gateway Plaza CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019

  8. M A j O R C O M M U N I T Y PA R K - G A M I N G A N D A C T I V E U S E S Gaming and Active uses CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019

  9. M A j O R C O M M U N I T Y PA R K - O P T I O N A L D O G R U N A R E A CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019

  10. I N T E R N A L A M E N I T Y CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019

  11. C O R N E R PA R K PARK FEATURES: PollinAToR gARdEn lAwn AREA STEPPing STonE PAThS SmAll cEnTER PATio vARiETy oF SEATing AREAS SwingS FoR All AgES biRd hoUSES CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019

  12. T R E E P R O T E C T I O N P L A N EXISTING TREE TO REMAIN EXISTING TREE TO BE REMOVED CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019

  13. P L A N T I N G P L A N CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019

  14. T O W N H O M E S V I I & V I I I O V E R A L L P L A N CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019

  15. T O W N H O M E S V I I & V I I I C I R C U L AT I O N P L A N PASSAGE CONNECTOR PEDESTRIAN SIDEWALK LANDSCAPE OPEN SPACE CRYSTAL HOUSE ROSEWOOD A R L I N G TO N, V A JUNE 24, 2019
