An Active GHz Clock Network Using Distributed PLLs Vadim Gutnik and - PowerPoint PPT Presentation

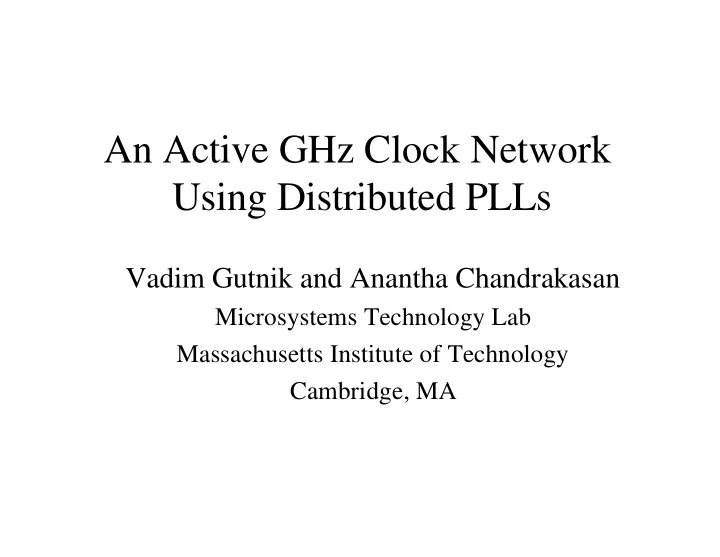

An Active GHz Clock Network Using Distributed PLLs Vadim Gutnik and Anantha Chandrakasan Microsystems Technology Lab Massachusetts Institute of Technology Cambridge, MA Conventional Clock Distribution H Tree Gclk Routed Tree Grid


  1. An Active GHz Clock Network Using Distributed PLLs Vadim Gutnik and Anantha Chandrakasan Microsystems Technology Lab Massachusetts Institute of Technology Cambridge, MA

  2. Conventional Clock Distribution H Tree Gclk Routed Tree Grid • Central distribution relies on global matching

  3. Sources of Clock Uncertainty Source Buffers Wires Load • Systematic: passive compensation • Random and dynamic: active compensation

  4. Distributed Clock Generation Oscillators GCLK Phase Detectors • Synchronized clock generated at multiple points

  5. Why Symmetric PLLs? 1 Σ Σ Σ PD PD PD Noise transfer function Ref 1 2 2 Σ Σ Σ log( ω ) PD PD PD Ref

  6. How Many Tiles? 50 Total Skew Clock skew (ps) 40 2cm x 2cm 30 1GHz clock Internal 0.25 µ m 20 Skew Boundary Skew 10 0 1 4 9 16 25 36 49 64 Number of Tiles

  7. Modelock 1 1 2 2 3 4 3 4 Next Phase = current phase - average phase error [Pratt 95]

  8. Is Modelock Avoidable? Linear phase detector: mode lock 1 2 1 1 1 3 2 3 2 3 2 3 1 θ 2 Desired phase detector 2 1 1 θ 1 1 3 2 3 2 3 2

  9. Nonlinear Error Summing Phase-detector output current Phase difference θ crit • n from geometry, θ crit = 360/n • Nonlinearity makes modelocked states unstable

  10. Phase Detector - phase In1 In2 Out1 Out2 Out1-Out2 In1 In2 P1 P2 phase Out1 Out2

  11. Phase Detector - frequency In1 In2 Out1 Out2 Out1-Out2 In1 In2 P1 P2 frequency Out1 Out2

  12. Small-Signal Stability + + PD PD PD Reference + + PD PD Φ = − − 1 [ I A A h( )] h( ) A u s s s 1 2 1 j ω Noise transfer function σ log( ω ) s-plane

  13. Loop Filter Pbias In- In+ In+ In- Iout Iout Nbias

  14. Oscillator Input • NMOS-load differential ring oscillator insensitive to supply noise

  15. Large-Signal Acquisition Reference 1.1 Clock Period (nanoseconds) 1.05 1 0.95 0.9 0 1 2 3 4 5 6 7 8 9 10 Simulation time (microseconds)

  16. Full System Hspice Simulation 1.02 Clock Period (nanoseconds) 1.01 1 0.99 0 1 2 3 4 Simulation Time (microseconds) • 16 oscillator network small-signal stable

  17. Results • 2mm chip. 0.35 µ m, single poly triple metal CMOS • 16 oscillators, each 40 µ m x 40 µ m • 24 phase detectors, each 20 µ m x 40 µ m • Total power: 450mW at 3V, 1.3GHz • Jitter < 30ps

  18. Conclusions • Random and time-varying mismatch limit centralized clock distribution • Distributed generation enables shorter distribution • Stable multiple-oscillator PLL demonstrated

  19. Acknowledgements This work is funded by the MARCO Focused Research Center on Interconnects. Vadim Gutnik was partially supported by an Intel Fellowship.
