Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r 934/ NW 74 th ST SR R E E T F r om SR 826/ Palme tto E xpr e ssway T o US 27/ SR 25/ Oke e c hobe e R oad Str ate gic Inte r modal Syste

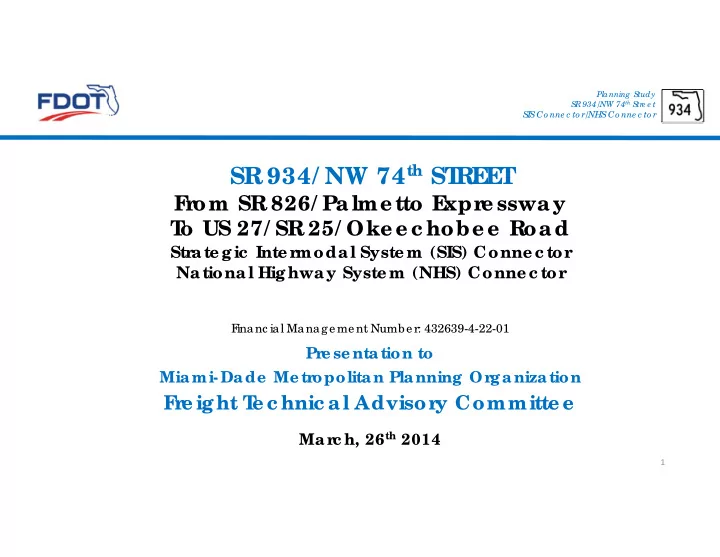

  1. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r 934/ NW 74 th ST SR R E E T F r om SR 826/ Palme tto E xpr e ssway T o US 27/ SR 25/ Oke e c hobe e R oad Str ate gic Inte r modal Syste m (SIS) Conne c tor National Highway Syste m (NHS) Conne c tor F inanc ial Management Number: 432639-4-22-01 Pr e se ntation to Miami-Dade Me tr opolitan Planning Or ganization F r e ight T e c hnic al Advisor y Committe e c h, 26 th 2014 Mar 1

  2. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r  The SR 934/NW 74 th Street Planning Study includes both a Strategic Intermodal System (SIS) Connector and a National Highway System (NHS) Connector.  The subject SIS Connector is comprised of the following roadways: SR 934 from SR 826 to Milam Dairy Road. • Milam Dairy Road from SR 934 to NW 74 th • Street. NW 74 th Street from Milam Dairy Road to • NW 69 th Avenue. NW 69 th Avenue from NW 74 th Street to • 0.060 miles south of NW 74 th Street.  The subject NHS Connector includes the same limits as the SIS Connector, and also includes: NW 74 th Street from NW 69 th Avenue to • Okeechobee Road – Including Bridge #874095. 2

  3. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r Study Area Study Area  The study area for this project encompasses the roadways that feed into the SIS and NHS Connectors to the FEC Hialeah Rail ‐ Yard. The study area is generally north of NW 58 th Street, east of SR 826/Palmetto Expressway, and west of US 27/SR 25/Okeechobee Road.  Portions of the Connectors are located within the limits of the Town of Medley. The remaining portions of the Connectors are located within Unincorporated Miami ‐ Dade County. 3

  4. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r Project Objectives Project Objectives  Analyze the NW 74 th Street SIS/NHS Connector and its surrounding area to improve freight mobility and intermodalism.  Identification of immediate project needs and future project needs. Operational, capacity, access and safety improvements. • Identification of short term improvements. • Partial long term improvements. • Improve other roadways within the study area that are part of the local freight network. •  Position the region for funding opportunities.  Prepare for the inevitable growth of the freight industry due to the Panama Canal expansion. 4

  5. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r Scope of Services Scope of Services  Evaluate the transportation network within the study area.  Collect existing roadway characteristics and traffic data for all major roadways within the study area.  Coordinate and obtain information from the FEC and Freight operators, including truck and freight rail activity. (Existing and future)  Analyze the existing roadway and intersection conditions.  Identify the origin and destination of trucks accessing the Hialeah Rail ‐ Yard. (Existing and future)  Identify problem areas for truck movements.  Forecast future traffic/truck volumes.  Future conditions analysis: forecasted traffic vs. projected freight traffic and 5 currently planned roadway network.

  6. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r Truck Flow in Miami-Dade County Truck Flow in Miami-Dade County  Truck traffic in Miami ‐ Dade County has historically been concentrated in the central part of the county.  Key truck traffic generators: Port of Miami • Free Trade Zone •  Other truck traffic generators: FEC Hialeah Rail ‐ Yard • Miami International Airport • Miami River • 6

  7. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r Truck Flow in Miami-Dade County Truck Flow in Miami-Dade County  Main roadways used by truck traffic: I ‐ 95 • SR 836 • SR 826/Palmetto Expressway • NW 25 th Street • US 27/SR 25/Okeechobee Road •  These roadways and others in the vicinity experience significant congestion. 7

  8. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r Traffic Hot Spots – AM Peak Period Traffic Hot Spots – AM Peak Period  NW 58 th Street: Westbound left ‐ turn queue build ‐ up at the NW • 79 th Avenue intersection .  SR 934: Eastbound movement from SR 934 to • Northbound SR 826. 72 nd Southbound approach on NW Avenue • between SR 934 and NW 74 th Street. Long Westbound queue build ‐ up on SR 934 at NW • 72 nd Avenue intersection. Westbound left ‐ turn queue build ‐ up at the • intersection of NW 77 th Court. Westbound thru and Southbound left ‐ turn queue • build ‐ ups at W 8 th Avenue intersection. 8

  9. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r Solutions– AM Peak Period Solutions– AM Peak Period  NW 58 th Street: Optimize signal timing. • Extend left ‐ turn storage capacity. •  SR 934: Optimize signal timing. • Evaluate the feasibility of rerouting the Westbound • left ‐ turn movement from NW 77 th Court to NW 84 th Avenue, in order to extend the storage capacity of the dual Eastbound left ‐ turns from SR 934 to SR 826 Northbound. Evaluate the feasibility of converting the Westbound • shared thru/left ‐ turn lane on NW 74 th Street at NW 72 nd Avenue to the second Westbound left ‐ turn lane and sharing the thru movement with the right ‐ turn. 9

  10. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r Traffic Hot Spots – PM Peak Period Traffic Hot Spots – PM Peak Period  NW 58 th Street:  Okeechobee Road: NW 58 th Street Eastbound inside lanes. High levels of traffic on Okeechobee Road. • • SR 826 Northbound on ‐ ramp. Eastbound left ‐ turn movement at W 16 th • • Avenue cannot clear the intersection due to Eastbound left ‐ turn traffic from NW 58 th • Street to NW 72 nd Avenue Northbound. lack of gaps in the opposing traffic stream. Significant queue build ‐ ups on NW 72 nd •  SR 934: Avenue Northbound and Southbound at W 16 th Avenue intersection. SR 826 Northbound on ‐ ramp. • Significant queue build ‐ up on W 29 th Street Westbound right ‐ turn movement backed up to the • • WB at the W 16 th Avenue intersection. NW 74 th Avenue intersection. Significant queue build ‐ up on W 12 th Avenue Westbound approach at the intersection of SR 934 • • and NW 72 nd Avenue. Southbound. Northbound right ‐ turn movement at the •  SR 826 Expressway: intersection of SR 934 and NW 72 nd Avenue. Saturated traffic conditions on SR 826 • Eastbound left ‐ turn queue build ‐ up at the NW 74 th • Northbound and Southbound. Avenue intersection. Northbound left ‐ turn queue build ‐ up at the W 8 th • Avenue intersection. 10

  11. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r Solutions– PM Peak Period Solutions– PM Peak Period  NW 58 th Street: Optimize signal timing. • Evaluate the merge condition on the ramp from NW • 58 th Street to SR 826 North Bound.  SR 934: Optimize signal timing. • Evaluate the merge condition on the ramp from SR • 934 to SR 826 Northbound. Evaluate the feasibility to provide an additional • Northbound right ‐ turn bay. Extend Northbound left ‐ turn storage capacity. •  Okeechobee Road: Extend Eastbound left ‐ turn storage capacity. • Convert the right ‐ turn only lane on W 29 th Street • Westbound to a shared lane operation. Evaluate the feasibility of modifying the lane use • composition of the Southbound approach to better 11 accommodate the left ‐ turn traffic demand.

  12. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r Questions for the Committee Questions for the Committee 12

  13. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r Trucking Trucking  Key routes used by the truckers to enter and exit the study area?  Other major warehousing facilities located near to the study area?  70% of cargo coming into Port of Miami enters into the study area via truck. What percent of cargo leaves the study area via truck? 13

  14. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r Trucking Trucking  Problem areas that the truckers would like to see addressed?  Are there characteristics of other ports/facilities that the truckers would like to see implemented here?  General issues with South Florida’s freight infrastructure network? 14

  15. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r Trucking Trucking  Is existing signage appropriate for trucks coming from other areas?  Do you have a wish list of improvements to the (study) area that will facilitate their activity?  Do the truck drivers have any feedback or input that can be passed along to the FDOT for consideration? 15

  16. Planning S tudy NW 74 th S S R 934/ tre e t S I S Co nne c to r/ NHS Co nne c to r Thank You Thank You For questions and comments please contact: Ken Jeffries Project Manager Florida Department of Transportation, District 6 (305) 470 ‐ 5349 Ken.Jeffries@dot.state.fl.us Mike Ciscar P.E. Consultant Project Manager The Corradino Group (305) 594 ‐ 0735 mciscar@corradino.com 16
