Zoom 9 0 Full Robotic Series Product Presentation V. 1 .3 GeoMax - PowerPoint PPT Presentation

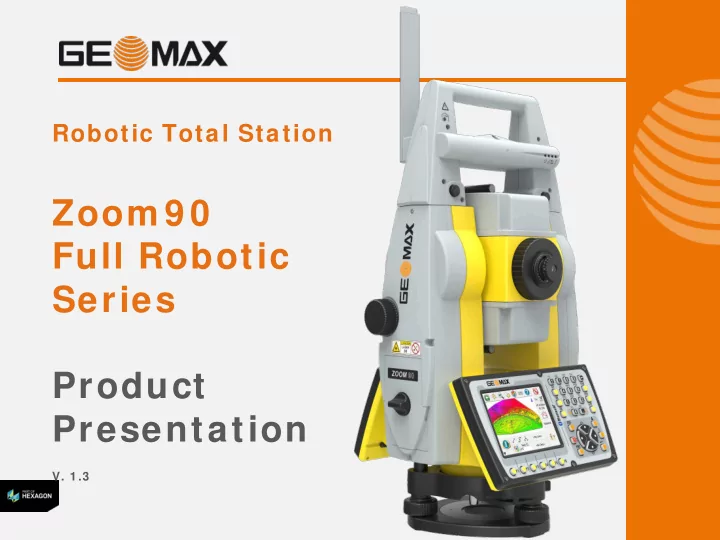

Robotic Total Station Zoom 9 0 Full Robotic Series Product Presentation V. 1 .3

GeoMax Zoom 9 0 Table of Contents • Total Station • Hardware • Software • GeoMax Toolkit • Field Software • Accessories • Packages • Prom otion Material

Zoom 9 0 Hardw are

GeoMax Zoom 9 0 Product Overview -Long Range Bluetooth Data Link -Internal Bluetooth Angular Accuracy 1", 2", 5" Removable Memory USB Stick and SD Card S cout360 1 GB Internal Memory Reflector Scan TR ack360 Reflector Tracking Allowing 3 rd party A i M 360 packages running Auto-Targeting onboard Long life battery 7-10h Full 2 nd keyboard • 500 and 1` 000m IP5 5 Water-& Dustproof Reflectorless • 10` 000m to prism • 1mm + 1.5ppm Full VGA , High Resolution Color & Touch Display 4 Light weight Illuminated Keys Laser Plummet

GeoMax Zoom 9 0 Scout360 A fast rotating laser that scans the entire working area to quickly find your survey pole. All measurement work can therefore be performed as one-man by remote control. TRack360 Provides continuous tracking of targets. Once locked onto a prism, the instrument will remain precisely targeted, even when the prism moves . AiM360 The telescope is precisely aimed at any prism, without needing to look through the telescope. Once precisely aimed, the position can be measured and stored automatically. 5

GeoMax Zoom 9 0 S cout360 Range * 300m Scan Tim e Typ. 5-10 s Technology Laser fan TR ack360 Range * 800m Speed 25m/ s at 100m 90 km/ h A i M 360 Range * 1000 m Hz/ V acc. 1” Technology Image processing 6 * To GeoMax Round prism

GeoMax Zoom 9 0 accXess Angular STReam 3 6 0 Reflectorless Accuracy range Scout TRack AiM A5 A10 1” 2” 5” ü ü ü ü ü ü ü Zoom90 S ü ü ü ü ü ü ü ü Zoom90 R Both of the Zoom 9 0 m odels are full robotic instrum ents and can be used as one m an station !

GeoMax Zoom 9 0 Zoom90 incorporates highly innovative X-motion hybrid drives, providing high automation performance. The tracking functionality follows your prism moving at 90 km/ h at 100m distance. 8

GeoMax Zoom 9 0 accXess EDM Prism Mode Range 3` 500 m Std. Mode > 10` 000 m Long Mode Accuracy 1mm + 1.5ppm Std. Mode Speed 0.15 s Cont. Mode 0.8 s Fast Mode 2.4 s Std. Mode Non-Prism Mode Range 500m accXess5 1` 000m accXess10 Accuracy 2mm + 2ppm 4mm + 2ppm > 500m Speed 3-6 s typically Footprint 8 x 20mm at 50 m 9

GeoMax Zoom 9 0 NavLight™ Fitted as standard in the telescope, the NavLight is an efficient alignment aid, helping to speed up work while setting out. Its flashing red and yellow lights will guide you quickly and exactly to the line of sight. NavLight ™ Range * 150 m Accuracy 5cm at 150m Technology Dual LED 1 0

GeoMax Zoom 9 0 Display & Keyboard 1 1

GeoMax Zoom 9 0 Com m unication & Mem ory Zoom 9 0 m eets all your connectivity needs and is ideal for one-m an robotic surveys. I nternal & Long Range Bluetooth Handle • High Speed Data Link • Reliable Connectivity • License Free Data can be stored on…. • SD-Card • USB Stick • Internal Memory 1 2

GeoMax Zoom 9 0 Environm ental protection GeoMax instruments are built to withstand the toughest conditions. The Zoom90 has been designed and tested to be dust-proof and fully protected against water jets. Dust- & W ater protection Operating tem perature -20°C + 50°C Protection Dust against water protected jets from any angle 1 3

GeoMax Zoom 9 0 I P5 5 in detail….

Zoom 9 0 Softw are

GeoMax Zoom 9 0 Onboard Softw are – GeoMax Toolkit “GeoMax Toolkit” provides basic functionalities required to setup operation by 3 rd party field softw are • Settings • Update functionality (GeoMax Toolkit) • Check & Adjust • System Info 1 6

GeoMax Zoom 9 0 Onboard Field Softw are The W indow s CE operating system, enabling a variety of powerful field software to be run, offering you freedom to choose software that best suits your needs. Datalogger & Field Softw are Combine your preferred software and datalogger to perform remote control tasks with increased productivity. GeoMax offers the following dataloggers • Getac PS336 E (WinMobile) • Getac Z710 (Android) • Panasonic (Win8 & Android) 1 7

Zoom 9 0 Packages

GeoMax Zoom 9 0 Servo Packages Zoom 9 0 S accXess 5 Packages Zoom 9 0 S accXXess 1 0 Packages Zoom90 S – 1” accXess 5 Zoom90 S – 1” accXXess10 Zoom90 S – 2” accXess 5 Zoom90 S – 2” accXXess10 Zoom90 S – 5” accXess 5 Zoom90 S – 5” accXXess10 I ncluded Accessories Battery, ZBA400, Li-Ion, 4.4Ah Quick Guide, multilingual Charger, ZCH201 for ZBA400 CD (containing User Manuals) Tribrach, ZTR101, w/ o optical plummet SD Card, ZSD01 Industrial Grade USB-USB Cable, ZDC301 Field Softw are GeoMax FieldGenius Premium/ - Layout Pro/ XPAD/ SurvCE for onboard Alternatively option without onboard SW (Flexible Software option) Options 2 nd keyboard Extended- & Additional warranty 1 9

GeoMax Zoom 9 0 Robotic Packages Zoom 9 0 R accXess 5 Packages Zoom 9 0 R accXXess 1 0 Packages Zoom90 R – 1” accXess 5 Zoom90 R – 1” accXXess10 Zoom90 R – 2” accXess 5 Zoom90 R – 2” accXXess10 Zoom90 R – 5” accXess 5 Zoom90 R – 5” accXXess10 I ncluded Accessories Battery, ZBA400, Li-Ion, 4.4Ah Quick Guide, multilingual Charger, ZCH201 for ZBA400 CD (containing User Manuals) Tribrach, ZTR101, w/ o optical plummet 360° Reflector, ZPR1 SD Card, ZSD01 Industrial Grade Telescopic Carbon Fibre pole, ZPC201 USB-USB Cable, ZDC301 Long Range Bluetooth Handle, ZRT82 Field Softw are GeoMax FieldGenius Premium/ - Layout Pro/ XPAD/ SurvCE for datalogger None (Flexible Software option) Datalogger Getac PS336E plus LR-BT cap Getac Z710 None (Flexible remote option) Options 2 nd keyboard GeoMax FieldGenius Premium/ XPAD/ SurvCE to run onboard Extended- & Additional warranty 2 0

Zoom 9 0 Prom otion Material

GeoMax Zoom 9 0 Prom otion Material & More • Zoom90 Brochure • Image Library • Poster • Installation Guide • FAQ` s 2 2
