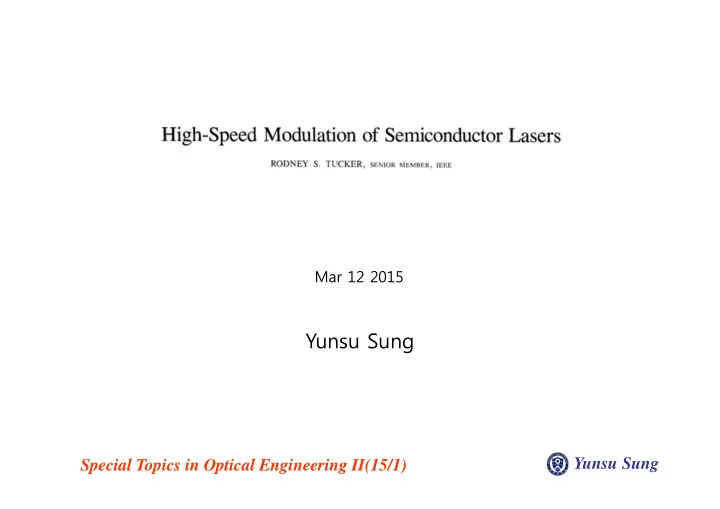

Mar 12 2015 Yunsu Sung Yunsu Sung Special Topics in Optical Engineering II(15/1)
Contents • Two-port model • Rate equation and damping • Small signal response • Conclusion Yunsu Sung Special Topics in Optical Engineering II(15/1)
Two Port Model I:Current V:Voltage P: Optical Power ∆ν : Optical frequency shift • Model summarize parasitic effects and overall response • This model are valid in single frequency DFB lasers Yunsu Sung Special Topics in Optical Engineering II(15/1)
Two Port Model P: Optical Power Δν: Optical frequency shift • 3 sections of laser model – 1. package or mount parasitic • Bonding wire inductance, capacitance between input terminal – 2. semiconductor chip parasitic • parasitic capacitance, resistance with semiconductor material – 3. Intrinsic laser(active layer & cavity) Yunsu Sung Special Topics in Optical Engineering II(15/1)
Two Port Model • Signal response of semiconductor laser p j ( ) IM I ( j ) A ( j ) FM I ( j ) A • Parasitic: Lower high frequency of signal response • Intrinsic Laser: Resonance peak Yunsu Sung Special Topics in Optical Engineering II(15/1)
Parasitic • Chip cross section Yunsu Sung Special Topics in Optical Engineering II(15/1)
Parasitic • Circuit model of parasitic • L p : bondwire inductuce • R p : Small loss resistance • C p : Pad capacitance • C s : Shunt capacitance • R s : Series resistance • I L : Leakage current Yunsu Sung Special Topics in Optical Engineering II(15/1)
Rate Equations and Damping • Single mode rate equation • N: electron density • S: photon density • Γ : optical confinement factor dN I N • τ p : photon lifetime A g ( N N )(1 S S ) g 0 0 • τ n : electron lifetime dt qV act n • V act : Volume of active layer • β : Fraction of spontaneous emission dS 1 N g ( N N )(1 S ) S coupled into the laser mode 0 0 g dt • ε : gain compression characteristic p n absorption Spontaneous emission Stimulated emission • N,S are assumed constant across active layer Yunsu Sung Special Topics in Optical Engineering II(15/1)
Rate Equations and Damping • Cause of damping in the modulation response – Spontaneous emission coupled into the lasing mode – Spatial hole burning combined with carrier diffusion – Nonlinear due to spectral hole burning – Nonlinear absorption Yunsu Sung Special Topics in Optical Engineering II(15/1)
Small Signal Response • Intensity Modulation p j ( ) I th ' M j ( ) qV i ( j ) act A g S 2 2 B 0 0 M j ( ) 0 0 p M (0) ' 1 ' S 2 2 h 0 ( j ) j S ( g ) B M (0) 0 0 0 S S 2 q 0 n p n 0 n p Damping term M j ( ) 1 With some approximation 2 M (0) j j 1 0 m Yunsu Sung Special Topics in Optical Engineering II(15/1)
Small Signal Response • Damping of resonance ' 1 Damping term: S ( g ) 0 0 S 0 n p Damping term ↓ peak ↑ , ω p ≈ ω 0 Damping term ↑ peak ↓ , ω p ≠ ω 0 Low S 0 (Low output power) Spontaneous emission term dominate Large S 0 (Large output power) gain compression damping term( ε ) Yunsu Sung Special Topics in Optical Engineering II(15/1)
High Frequency limitations M j ( ) 1 • Recall 2 M (0) j j 1 0 m 2 2 4 • Then 1 p 0 0 2 m m m 2 2 4 4 p p 3 dB 0 m m m m 1 2 M p 2 4 1 0 0 4 m m Yunsu Sung Special Topics in Optical Engineering II(15/1)
High Frequency limitations • ω 0 proportional to output power • ω p ≈ ω 0 at low output power( ω 0 / ω m <<1) • ω p / ω m max at ω 0 / ω m =1, zero at ω 0 / ω m = √ 2 • ω 3dB / ω m max at ω 0 / ω m = √ 2 • M p =0(no peak) at ω 0 / ω m = √ 2 – Second order Butterworth Yunsu Sung Special Topics in Optical Engineering II(15/1)
Design for Wide-Band Laser • ω 3dB / ω m max at ω 0 / ω m = √ 2 g S 2 0 0 • Make large ω 0 (up to √ 2) for large bandwidth 0 p • 1.Increse S 0 – Decrease the width of the optical field distribution – Design low threshhold current • 2. Increase g 0 – Decrease temperature • 3. Reduce photon lifetime – Reduce cavity length Yunsu Sung Special Topics in Optical Engineering II(15/1)
Small Signal Response • Frequency Modulation g N 0 4 ( j ) F j ( ) i ( j ) A j m 1 2 F j ( ) 0 F (0) j j 2 ( ) 1 0 m Yunsu Sung Special Topics in Optical Engineering II(15/1)
Small Signal Response FM IM • Difference between IM,FM – FM has much larger peak – IM slope decade -40dB – FM slope decade-20dB Yunsu Sung Special Topics in Optical Engineering II(15/1)
Conclusion • Semiconductor Laser response modeling was described • Bandwidth of direct modulator can control by small signal model Yunsu Sung Special Topics in Optical Engineering II(15/1)
