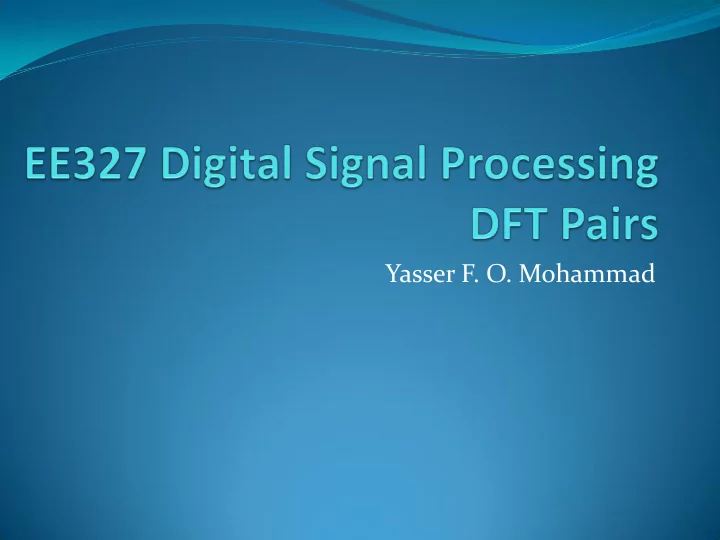

Yasser F. O. Mohammad REMINER 1: Fourier Transform is Additive - PowerPoint PPT Presentation

Yasser F. O. Mohammad REMINER 1: Fourier Transform is Additive Scaling of the amplitude in one domain produces a scaling with the SAME factor in the amplitude of the other domain. Use polar or rectangular coordinates REMINDER 2: Fourier


  1. Yasser F. O. Mohammad

  2. REMINER 1: Fourier Transform is Additive  Scaling of the amplitude in one domain produces a scaling with the SAME factor in the amplitude of the other domain.  Use polar or rectangular coordinates

  3. REMINDER 2: Fourier Transform is Homogeneous  Addition in one domain results in addition in the other domain.  MUST Use rectangular coordinates  NEVER add magnitudes in the frequency domain

  4. REMINDER 3: Time Shift = Phase slope offset     DFT x n MagX f [ ], PhaseX f [ ] IDFT        DFT x n s MagX f [ ], PhaseX f [ ] 2 sf IDFT  Right Shift in time domain  Decrease in slope of the phase Phase will be drawn unwrapped in this lecture

  5. REMINDER 4: Time Flipping  Flipping time domain negates the phase         DFT x n Re X f ,Im X f IDFT           DFT x n Re X f , Im X f IDFT

  6. REMINDER 5: DTFT  Decomposition  Synthesis

  7. Impulse  Constant Magnitude

  8. Rectangular Pulse  Sinc

  9. Sinc  Rectangular Pulse  Rectangular pulse in frequency domain

  10. REST of Chapter  SELF READ
