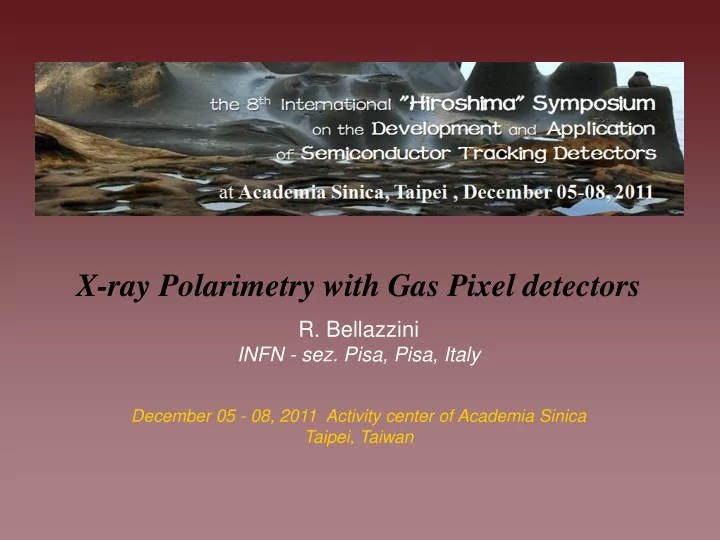

X-ray Polarimetry with Gas Pixel detectors R. Bellazzini INFN - sez. Pisa, Pisa, Italy December 05 - 08, 2011 Activity center of Academia Sinica Taipei, Taiwan Polarimetry: The Missing Piece of the Puzzle Imaging: Chandra Timing: RXTE


  1. X-ray Polarimetry with Gas Pixel detectors R. Bellazzini INFN - sez. Pisa, Pisa, Italy December 05 - 08, 2011 Activity center of Academia Sinica Taipei, Taiwan

  2. Polarimetry: The Missing Piece of the Puzzle Imaging: Chandra Timing: RXTE Spectroscopy: AstroE2, Constellation-X, Chandra Polarimetry: ?

  3. The only polarized source already known Positive measurement: of X-ray polarization of the Crab Nebula without pulsar contamination (by lunar occultation, Weisskopf et al., 1978). P = 19.2 ± 1.0 %  = 156.4 o ± 1.4 o p.s.f. But this is only the average measurement.The structure is much more complex! PSR f.o.v. NW jet With XPOL we can perform the SE jet separate polarimetry, imaging, spectroscopy and timing of details Inner torus of the major structures Outer torus

  4. An efficient photoelectric X-ray polarimeter for the study of black holes and neutron stars E. Costa, P. Soffitta, R. Bellazzini, A. Brez, N. Lumb, G. Spandre Nature, Vol. 411 (2001) 662.

  5. Three ASIC generations of increasing size, reduced pitch and improved functionality have been realized 2k, 0.35 μm 22k, 0.35 μm 105k, 0.18 μm, self -triggering

  6. The collecting anode/read-out VLSI chip First ASIC prototype asynchronous, fast, low noise pixel electronics dimension: 80 μm x 80 μm in an hexagonal array, comprehensive of preamplifier/shaper, S/H and ~3.5 μs shaping time routing (serial read-out) for each pixel 100 e- ENC number of pixels: 2101 100 mv/fC input sensitivity 20 fC dynamic range

  7. Last technological step: a 0.18  m CMOS VLSI The chip integrates more than 16.5 million transistors. It has a15mm x 15mm active area of 105’600 pixels organized in a honeycomb matrix 470 pixels/mm 2 Pixel noise: 50 electrons ENC Total power dissipation ~ 0.5 Watt Matrix organization: 300 x 352 pixels width=300x50μm=15mm height=352x43.3μm=15.24mm

  8. The principle of detection Vdrift GEM electric field DRIFT PLANE DRIFT REGION Charge and/or trigger NG AMPLYFING Vtop Auger electron photoelectron GEM CHARGE COLLECTION REGION Vbottom X photon (E) PIXEL ANODE conversion GEM ADC gain collection pixel VLSI A custom CMOS analog chip is at the same time the pixelized charge collecting electrode and the E ฀ amplifying, shaping and charge measuring front-end 5 μs electronics of Micropattern Gas Detectors (MPGD) or other suitable charge multiplier

  9. Detector assembly • GEM pitch: 50 μm • GEM holes diameters: 33 μm, 15 μm • Read out pitch: 50 μm • Absorption gap thickness: 10 mm • Collection gap thickness: 1 mm 2 1 1 - The GEM glued to the bottom of the gas-tight enclosure 2 - The large area ASIC mounted on the control motherboard Large effective gas gain around 1000 @450V in Ne(50%)-DME(50%) (at least 70 V less than in our standard 90  m pitch GEM)

  10. GEM specs pitch: 50 μm holes outer Ø: 33 μm holes inner Ø: 15 μm The matching of readout and gas amplification (GEM) pitch allows getting optimal results and to fully exploit the very high granularity of the device

  11. The sealed device Collaboration with Oxford Instruments Analytical Oy (Finland) . The level of integration, compactness and operational simplicity of this device is comparable to solid state detectors

  12. On-line monitoring Real time pedestal subtraction

  13. Track morphology

  14. Track reconstruction 1) The track is recorded by the PIXel Imager 2) Baricenter evaluation 3) Reconstruction of the principal axis of the track: maximization of the Real track second moment of charge distribution 4) Reconstruction of the conversion point: major second moment (track length) + third moment along the principal axis (asymmetry of charge release) 5) Reconstruction of emission direction: pixels are weighted according to the distance from conversion point.

  15. 5.4 keV polarised photons (Cr) 5.4 keV polarised photons (Cr)

  16. Residual modulation Present level of absence of systematic effects (5.9 keV). Bellazzini 2010

  17. MC simulation Comparison of the modulation factor measured at 2.6 keV, 3.7 keV and 5.2 keV with the Monte Carlo previsions. The agreement is very satisfying.

  18. More energies, more mixtures Pure DME (CH 3 ) 2 O Modulation curve at 2.0 keV μ = 13.5% (Muleri et al., 2010).

  19. Imaging and spectroscopic capability Argon (70%)-DME(30%) 2 bar Holes: Ø 0.5 mm pitch 1 mm

  20. Imaging capability 55Fe source Ne(50%)-DME(50%) Holes: 0.6 mm diameter, 2 mm apart.

  21. Xpol as readout plane of a Micro Channel Plate (collaboration with Space Science Laboratory, Berkeley) Xpol Vacuum vessel Readout board Micro Channel Plate with USAF1951 mask

  22. MCP 4 μ m aperture 5.5 μ m pitch 150 μ m 50 μ m Series 7-1 128 l/mm Series 6-6 114 l/mm Series 6-1 64 l/mm

  23. Conclusions With the presented device the class of Gas Pixel Detectors has reached the level of integration, compactness and resolving power typical of solid state detectors. The measure of a very low residual modulation and of a modulation factor well above 50% which has been obtained with this device will likely allow polarimetric measurements at the level of ~1% for hundreds of galactic and extragalactic sources … . … a real breakthrough in X-ray astronomy if compared with the sensitivity of traditional X-ray polarimeters. .
