Web Site Design and Development Lecture 10 CS 0134 Fall 2018 Tues - PowerPoint PPT Presentation

Web Site Design and Development Lecture 10 CS 0134 Fall 2018 Tues and Thurs 1:00 2:15PM Lists You can create unordered lists with ul and ordered lists with ol. An unordered list uses bullet points for each item by default. An

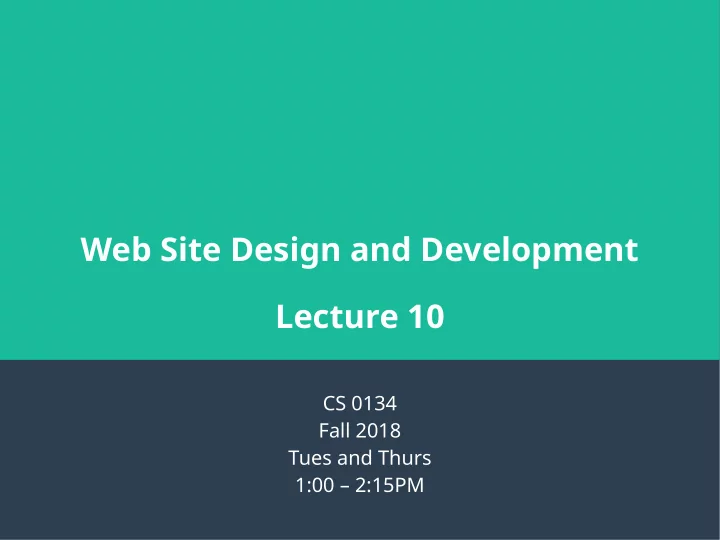

  1. Web Site Design and Development Lecture 10 CS 0134 Fall 2018 Tues and Thurs 1:00 – 2:15PM

  2. Lists ● You can create unordered lists with ul and ordered lists with ol. – An unordered list uses bullet points for each item by default. – An ordered list uses numbers for each item by default. ● You can add items to ul or ol by using the li element. The li element can contain text or other html elements. 2

  3. The start attribute ● The ol element has an attribute named start ● start can be used to start the ol at a position other than 1. For example, <ol start=”3”> will create an ordered list that starts with 3 rather than 1. ● If the ordered list is using letters rather than numbers, start=”3” will start the list with C rather than A. 3

  4. Nested lists ● You can place a list inside an li to create a nested list. Code Browser <ul> <li>List item 1</li> <li>List item 2 <ul> <li>List item 2 detail 1</li> <li>List item 2 detail 2</li> </ul> </li> </ul> 4

  5. Description lists ● Another type of list that can be used is a description list. A description list is made up of three elements – dl: the dl element is used to create a description list – dt: the dt element is used to create a term to be described. The dt element can only contain text and inline elements – dd: the dd element is used to create a description for the previously listed term. The dd element can contain block elements in addition to text and inline elements ● You may see the word defjnition used instead of description. This is because in HTML4, dl was called a defjnition list. 5

  6. Description lists continued ● You create a dl by grouping dt and dd elements together as adjacent siblings. ● You can have multiple dt for one dd and you can have multiple dd for one dt. 6

  7. Description list example Code Browser <dl> <dt>p</dt> <dd>The paragraph element</dd> <dt>a</dt> <dd>The anchor element</dd> <dt>dl</dt> <dd>1. In HTML4, dl means defjnition list</dd> <dd>2. In HTML5, dl means description list</dd> </dl> 7

  8. Questions? 8

  9. Formatting lists ● You can format lists with the list-style-type and list-style-image as well as with margin and padding 9

  10. list-style-type ● The list-style-type property defjnes the style used by the list ● For an unordered list, list-style-type will accept the keywords disc, circle, square and none. Disc is the default ● For an ordered list, list-style-type will accept the keywords decimal, decimal-leading-zero, lower-alpha, upper-alpha, lower-roman and upper-roman. Decimal is the default ● You can set the list-style-type on either the ul, ol or li elements. 10

  11. list-style-type examples ● list-style-type: circle; ● list-style-type: none; ● list-style-type: upper-roman; ● list-style-type: decimal-leading-zero; 11

  12. list-style-image ● The list-style-image property specifjes a custom image to be used as a bullet point ● list-style-image will accept a url() value ● Example – list-style-image: url(“smile-emoji.png”); – list-style-image: url(“frown-emoji.png”); 12

  13. Aligning list items ● You can adjust how indented a list item is by setting the padding-left property on ul or ol. ● You can adjust the space between the bullet (or number) and the text of a list item by setting the padding-left property on the li element. ● You can adjust the vertical spacing for list items by setting the padding-bottom property on the li element. ● You can adjust how indented a description is in a description list by setting the margin-left property on the dd element. 13

  14. Alignment examples ● ul { padding-left: 2em; } ● li { padding-left: 0.5em; padding-bottom: 0.5em; } ● dd { margin-left: 0; } 14

  15. Questions? 15
