Volcanoes Shield Volcanoes What Where Life Cycle with reference - PowerPoint PPT Presentation

Volcanoes Shield Volcanoes What Where Life Cycle with reference to Kauai Composite Volcanoes Shield Volcanoes What are they? A shield volcano is a type of volcano usually built almost entirely of fluid lava flows. They are named for

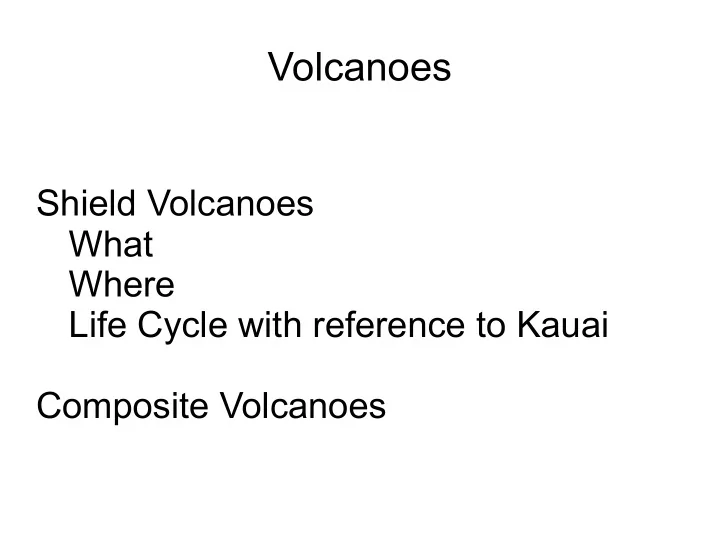

  1. Volcanoes Shield Volcanoes What Where Life Cycle with reference to Kauai Composite Volcanoes

  2. Shield Volcanoes What are they? “A shield volcano is a type of volcano usually built almost entirely of fluid lava flows. They are named for their large size and low profile, resembling a warrior's shield.” (Wikipedia)

  3. Shield Volcanoes “effusive emissions of fluid lava” thin sheets (1-3 m thick); gradual buildup; often near-continuous eruption

  4. Shield Volcanoes flat profile but can be very large mountains often 3 – 4 miles diameter and half a mile high largest: Mauna Loa - over 60 miles wide, - almost 14,000 ft above sea level (and most of it is below sea level); - 19,000 cubic miles of basalt

  5. Shield Volcanoes Height is typically 1/20 of width; steeper in the center

  6. Shield Volcanoes characteristic features: ● rift zones ● fissure venting ● lava tubes ● splatter cones ● calderas

  7. Shield Volcanoes characteristic features: ● rift zones

  8. Shield Volcanoes characteristic features: ● rift zones

  9. Shield Volcanoes characteristic features: ● lava tubes

  10. Shield Volcanoes characteristic features: ● splatter cones

  11. Shield Volcanoes characteristic features: ● fissure venting

  12. Shield Volcanoes characteristic features: ● Calderas - pits formed by the collapse of land after a volcanic eruption - NOT craters - triggered by emptying of magma chamber

  13. Shield Volcanoes characteristic features: ● Calderas

  14. Shield Volcanoes Where are they? ● Hotspots ● Rifts (divergent plate boundaries) ● Subduction zones

  15. Shield Volcanoes Where are they? ● Hawaii ● Galapagos Islands ● Iceland ● East Africa

  16. Shield Volcanoes Where are they? - the big 4

  17. Shield Volcanoes Hawaii hotspot 80 million years 3 active volcanoes ● Mauna Loa ● Kilauea ● Lo`ihi hundreds of islands and seamounts standard life-cycle

  18. Shield Volcanoes Galapagos Islands Hotspot 4.2 million – 700,000 years old 13 considered active no clear age progression among islands

  19. Shield Volcanoes Iceland mid-Atlantic ridge rift AND hotspot very young – 5,000 – 10,000 years Also has composite volcanoes

  20. Shield Volcanoes East Africa rift zone, some hotspots On a continent young, several active long-lasting lava lakes (Erta Ale in Ethiopia since 1967, possibly 1906)

  21. Shield Volcanoes Others that are active: Mt. Okmok – Aleutians Mt. Edziza, British Colombia Bottom half of Mount Erebus (Antarctica) Bottom half of Mount Etna (Sicily, Italy) Mount Karthala (Comoros) Niuafo'ou (Tonga) Mount Nyamuragira (Democratic Republic of the Congo) Piton de la Fournaise (Réunion, France) Masaya Volcano, Nicaragua

  22. Shield Volcanoes All active

  23. Shield Volcanoes Dormant: Canada Heart Peaks Itcha Range[7] (British Columbia, Canada) Lava plateau of the Level Mountain Range[1] (British Columbia, Canada) United States Newberry Volcano in central Oregon Indian Heaven (Washington) Mauna Kea (Hawai'i) Hualālai (Hawai'i) Haleakalā (Maui) Medicine Lake Volcano (California) House Mountain Volcano (Arizona)

  24. Shield Volcanoes Dormant: Kenya Mount Marsabit Menengai Other La Grille (Comoros) Queen Mary's Peak (South Atlantic Ocean) Rangitoto Island (New Zealand) Santorini (Greece) São Tomé (São Tomé and Príncipe, Atlantic Ocean) Skjaldbreiður (Iceland) Mount Takahe (Marie Byrd Land, Antarctica) Taveuni (Fiji) Karaca_Dağ (Turkey)

  25. Shield Volcanoes Extinct: Antarctica: Mount Andrus, Mount Berlin, Mount Moulton, Mount Sidley (Marie Byrd Land), Mount Terror (Ross Dependency) Banks Peninsula (Christchurch, New Zealand) Bermuda Pedestal (Bermuda, United Kingdom) Dunedin Volcano (Dunedin, New Zealand) Kohala (Hawai'i, United States) Kookooligit Mountains (St. Lawrence Island, Alaska) Lord Howe Island, (Australia) Mount Warning, Australia Piton des Neiges (Réunion, France) Poike, Rano Kau, Terevaka (Easter Island, Chile) Verkhovoy (Kamchatka Peninsula, Russia.)

  26. Shield Volcanoes In short, not very many of them. - maybe 40 or 50 active - 20 to 30 dormant - 15 – 20 extinct

  27. Shield Volcanoes In short, not very many of them. How many active volcanoes known? Erupting now: perhaps 20 Each year: 50-70 Each decade: about 160 Historical eruptions: about 550 Known Holocene eruptions (last 10,000 years): about 1300 Note that these figures do not include the large number of eruptions (and undescribed volcanoes) on the deep sea floor.

  28. Shield Volcanoes However... There are shield volcanoes on Mars, Venus, and Io

  29. Shield Volcanoes Mars: - enormous (up to 14 MILES high, 370 MILES across: Olympus Mons) - no longer active

  30. Shield Volcanoes Venus - large (up to 430 miles across) - quite flat - many may still be active

  31. Shield Volcanoes Io – a moon of Jupiter - most volcanically active body in solar system - energy source is tidal heating - hundreds of volcanic centers - lava flows often more than 300 miles

  32. Shield Volcanoes Io – a moon of Jupiter - long-lasting lava lakes - pyroclastic plumes (60 – 120 miles high, red/white/gray/black fans to 300 miles from the vent) - mafic and ultramafic lava with sulfur compounds that create colors

  33. Homework 1) Make a list of the 8 most important points in today's presentation. 2) Go through your midterm exam and compare your answers to those I handed out. For every answer you got wrong, write, on the exam, the page of the textbook where the correct answer is found.
