Village of Tivoli Water Tow er Replacement May 17, 2018 Erin Moore, - PowerPoint PPT Presentation

Village of Tivoli Water Tow er Replacement May 17, 2018 Erin Moore, P.E. Project Manager Project Timeline JAN JUNE MAY & JUNE DEC APRIL JULY 2018 2018 2017 2018 2018 2017 BOARD PUBLIC SEQRA REPORT LOAN TRANSFER GRANT

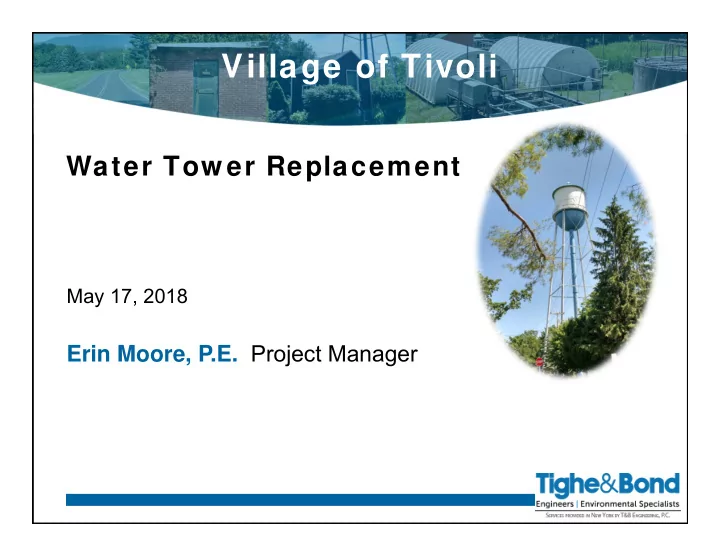

  1. Village of Tivoli Water Tow er Replacement May 17, 2018 Erin Moore, P.E. Project Manager

  2. Project Timeline JAN JUNE MAY & JUNE DEC APRIL JULY 2018 2018 2017 2018 2018 2017 BOARD PUBLIC SEQRA REPORT LOAN TRANSFER GRANT APPROVAL MEETING NOTICE REQUEST INITIATION

  3. Project Timeline JAN JUNE MAY & JUNE DEC APRIL JULY 2018 2018 2017 2018 2018 2017 BOARD PUBLIC SEQRA REPORT LOAN TRANSFER GRANT APPROVAL MEETING NOTICE REQUEST INITIATION

  4. SEQRA Compliance ■ SEQRA Compliance – Most system improvements are replace in kind – Water tower replacement requires SEQRA process – Transfer to DCWWA ■ Water Tower Location – Pine Street Utility Parcel – McKnight Wellfield ■ Water Tower Style – Modern Multi-Leg – Composite Elevated Tank – Ground Tank with Pump System

  5. Water Tank Locations

  6. Water Tank Locations Ball Lot Wellfield Parcel Memorial Park Parcel Pine Street Utility Parcel

  7. Tank Location Comparison Pine St. Utility Parcel McKnight Wellfield More water main Less water main Watermain improvements required improvements Loss of facilities on Additional park Park Impacts water tower parcel area gained Similar location – New location - Visual different aesthetic new vantage points Impacts Prominent in Less prominent in Village center Village center Proximity to security Distance to security fencing fencing

  8. Tank Style Comparison Capital O&M Visual Cost Cost Impact $$ $$ Closest to Multi-Leg Existing $$$ $ Largest Visual CET Impact $ $$$ Ground Smallest Visual Impact

  9. Multi-Leg Tank ■ Advantages – Lower capital cost – Structural problems evident due to staining & rust – Designed to meet Boiler Code = Watertight structure – Most similar in appearance to existing water tower – Can be custom painted ■ Disadvantages – High maintenance costs associated with repainting every 15 to 20 years – Ice can damage interior coatings – Larger foundation required

  10. CET Tank ■ Advantages – Designed to be low maintenance – No regular painting – Single panels can be replaced if necessary – Roof requires no submerged structural components – Faster construction time that requires minimal equipment – Concrete column can be used as storage space ■ Disadvantages – Bolted panels increase potential for leaks – Structural damage can be caused by ice – Glass panels can be damaged by vandalism – Lifespan not definitive since only utilized since 1970s – Concrete pedestal may require occasional crack repair

  11. Ground Tank ■ Advantages – Least visual impact – Lowest capital cost – Tank designed to be low maintenance – Single tank panels can be replaced – Roof requires no submerged structural components – Fastest construction time ■ Disadvantages – Lowest reliability due to pumps versus gravity – Pressure vault required – Highest operating cost – Bolted panels increase potential for leaks – Panels can be damaged by vandalism – Tank lifespan not definitive

  12. Tank Life Cycle Cost GROUND TANK $4.5M NET PRESENT WORTH $4.0M CET TANK $3.5M $3.0M MULTI- $2.5M LEG $2.0M 1 10 20 YEAR 30 40 50 60

  13. Memorial Park Location

  14. Memorial Park Location

  15. Memorial Park Location

  16. Memorial Park Location

  17. Memorial Park Location

  18. Memorial Park Location

  19. Memorial Park Location

  20. Memorial Park Location

  21. Memorial Park Location

  22. Memorial Park Location

  23. Memorial Park Location

  24. Memorial Park Location

  25. Memorial Park Location

  26. Memorial Park Location

  27. Memorial Park Location

  28. Memorial Park Location

  29. Memorial Park Location

  30. Memorial Park Location

  31. Memorial Park Location
