Attitude Representation and Transformation Matrices Mangal Kothari Department of Aerospace Engineering Indian Institute of Technology Kanpur Kanpur - 208016 Coordinated Frames Describe relative position and orientation of objects

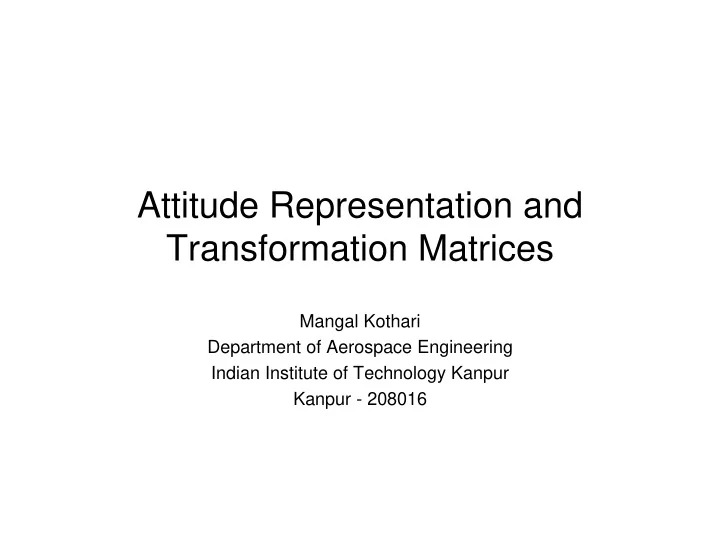

  1. Attitude Representation and Transformation Matrices Mangal Kothari Department of Aerospace Engineering Indian Institute of Technology Kanpur Kanpur - 208016

  2. Coordinated Frames • Describe relative position and orientation of objects – Aircraft relative to direction of wind – Camera relative to aircraft – Aircraft relative to inertial frame • Some things most easily calculated or described in certain reference frames – Newton’s law – Aircraft attitude – Aerodynamic forces/torques – Accelerometers, rate gyros – GPS – Mission requirements

  3. Rotation of Reference Frame

  4. Rotation of Reference Frame

  5. Particle/Rigid Body Rotation • One can say then that a Rigid Body is essentially a Reference Frame (RF). The translation of the origin of the RF describes the translational position. The specific orientation of the axes wrt to a chosen Inertial Reference provides the angular position.  ˆ { n } Inertial Reference ˆ  { b } Body Reference [ C ] – Direction Cosine Matrix

  6. Euler Angles • Need way to describe attitude of aircraft • Common approach: Euler angles • Pro: Intuitive • Con: Mathematical singularity – Quaternions are alternative for overcoming singularity

  7. Vehicle-1 Frame

  8. Vehicle-2 Frame

  9. Body Frame

  10. Inertial Frame to Body Frame Transformation

  11. Rotational Kinematics Inverting gives

  12. Differentiation of a Vector

  13. Let { b } have an angular velocity w and be expressed as: skew-symmetric Then cross product operator Thus But LHS Finally Nine parameter attitude Poisson Kinematic Equation representation

  14. For the Euler 3-2-1 Sequence Attitude Kinematics Differential Equation

  15. Euler’s Principal Rotation Theorem Informal Statement: There exists a principal axis about which a single axis rotation through F will orient the Inertial axes with the Body axes.

  16. Rotational Dynamics Newton’s 2 nd Law: • is the angular momentum vector • is the sum of all external moments • Time derivative taken wrt inertial frame Expressed in the body frame,

  17. Rotational Dynamics Because is unchanging in the body frame, and Rearranging we get where

  18. Inertia matrix

  19. Rotational Dynamics If the aircraft is symmetric about the plane, then and This symmetry assumption helps simplify the analysis. The inverse of becomes

  20. Rotational Dynamics Define ’s are functions of moments and products of inertia

  21. Equations of Motion External Forces and Moments gravitational, aerodynamic, propulsion

  22. Gravity Force expressed in vehicle frame expressed in body frame
