Sparse Matrices sparse many elements are zero dense few - PDF document

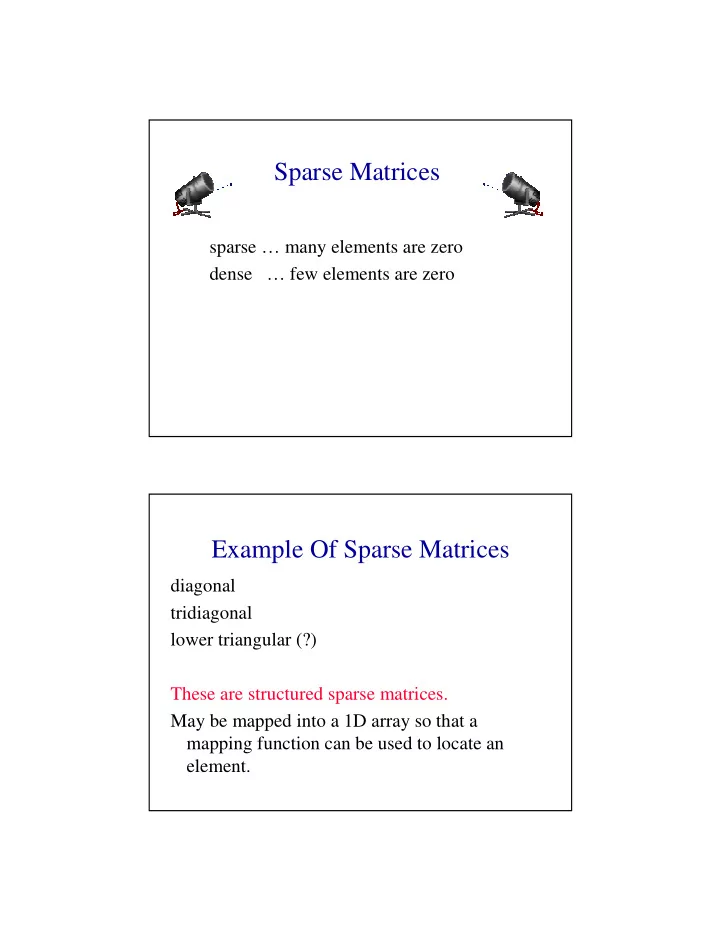

Sparse Matrices sparse many elements are zero dense few elements are zero Example Of Sparse Matrices diagonal tridiagonal lower triangular (?) These are structured sparse matrices. May be mapped into a 1D array so that a mapping


  1. Sparse Matrices sparse … many elements are zero dense … few elements are zero Example Of Sparse Matrices diagonal tridiagonal lower triangular (?) These are structured sparse matrices. May be mapped into a 1D array so that a mapping function can be used to locate an element.

  2. Unstructured Sparse Matrices Airline flight matrix. � airports are numbered 1 through n � flight(i,j) = list of nonstop flights from airport i to airport j � n = 1000 (say) � n x n array of list references => 4 million bytes � total number of flights = 20,000 (say) � need at most 20,000 list references => at most 80,000 bytes Unstructured Sparse Matrices Web page matrix. web pages are numbered 1 through n web(i,j) = number of links from page i to page j Web analysis. authority page … page that has many links to it hub page … links to many authority pages

  3. Web Page Matrix � n = 2 billion (and growing by 1 million a day) � n x n array of ints => 16 * 10 18 bytes (16 * 10 9 GB) � each page links to 10 (say) other pages on average � on average there are 10 nonzero entries per row � space needed for nonzero elements is approximately 20 billion x 4 bytes = 80 billion bytes (80 GB) Representation Of Unstructured Sparse Matrices Single linear list in row-major order. scan the nonzero elements of the sparse matrix in row- major order each nonzero element is represented by a triple (row, column, value) the list of triples may be an array list or a linked list (chain)

  4. Single Linear List Example list = 0 0 3 0 4 row 1 1 2 2 4 4 0 0 5 7 0 column 3 5 3 4 2 3 0 0 0 0 0 value 3 4 5 7 2 6 0 2 6 0 0 Array Linear List Representation row 1 1 2 2 4 4 list = column 3 5 3 4 2 3 value 3 4 5 7 2 6 element 0 1 2 3 4 5 row 1 1 2 2 4 4 column 3 5 3 4 2 3 value 3 4 5 7 2 6

  5. Chain Representation Node structure. row col value next Single Chain row 1 1 2 2 4 4 list = column 3 5 3 4 2 3 value 3 4 5 7 2 6 1 3 1 5 2 3 2 4 4 2 4 3 null 3 4 5 7 2 6 firstNode

  6. One Linear List Per Row row1 = [(3, 3), (5,4)] 0 0 3 0 4 row2 = [(3,5), (4,7)] 0 0 5 7 0 row3 = [] 0 0 0 0 0 row4 = [(2,2), (3,6)] 0 2 6 0 0 Array Of Row Chains Node structure. next col value

  7. Array Of Row Chains null 3 3 5 4 0 0 3 0 4 null 0 0 5 7 0 3 5 4 7 0 0 0 0 0 null 0 2 6 0 0 null 2 2 3 6 row[] Orthogonal List Representation Both row and column lists. Node structure. row col value down next

  8. Row Lists 1 3 3 1 5 4 n 0 0 3 0 4 0 0 5 7 0 2 3 5 2 4 7 n 0 0 0 0 0 0 2 6 0 0 null 4 2 2 4 3 6 n Column Lists 1 3 3 1 5 4 n 0 0 3 0 4 0 0 5 7 0 2 3 5 2 4 7 0 0 0 0 0 0 2 6 0 0 4 2 2 4 3 6 n n

  9. Orthogonal Lists 1 3 3 1 5 4 n n 0 0 3 0 4 0 0 5 7 0 2 3 5 2 4 7 n 0 0 0 0 0 0 2 6 0 0 null 4 2 2 4 3 6 n n n row[] Variations May use circular lists instead of chains.

  10. Approximate Memory Requirements 500 x 500 matrix with 1994 nonzero elements 2D array 500 x 500 x 4 = 1million bytes Single Array List 3 x 1994 x 4 = 23,928 bytes One Chain Per Row 23928 + 500 x 4 = 25,928 Runtime Performance Matrix Transpose 500 x 500 matrix with 1994 nonzero elements 2D array 210 ms Single Array List 6 ms One Chain Per Row 12 ms

  11. Performance Matrix Addition. 500 x 500 matrices with 1994 and 999 nonzero elements 2D array 880 ms Single Array List 18 ms One Chain Per Row 29 ms
