Transaction Management Part I: Concurrency Control vanilladb.org - PowerPoint PPT Presentation

Transaction Management Part I: Concurrency Control vanilladb.org Tx Management VanillaCore JDBC Interface (at Client Side) Remote.JDBC (Client/Server) Server Query Interface Tx Planner Parse Algebra Storage Interface Sql/Util

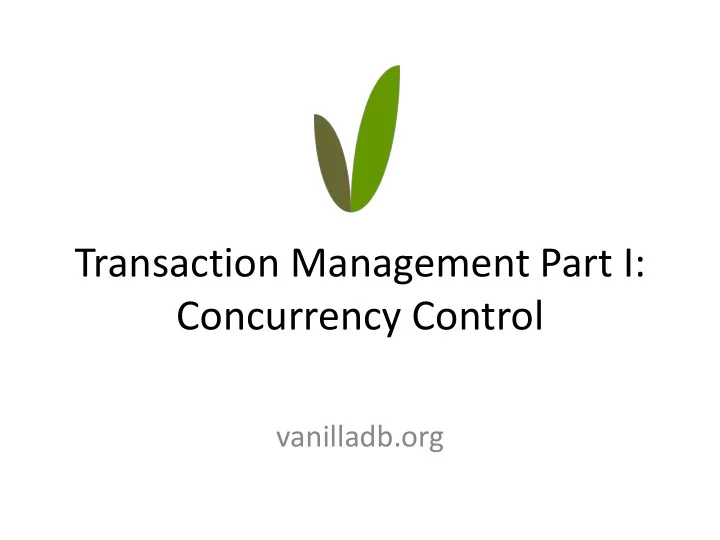

  1. Transaction Management Part I: Concurrency Control vanilladb.org

  2. Tx Management VanillaCore JDBC Interface (at Client Side) Remote.JDBC (Client/Server) Server Query Interface Tx Planner Parse Algebra Storage Interface Sql/Util Concurrency Recovery Metadata Index Record Log Buffer File 2

  3. VanillaDb. init("studentdb"); // Step 1 Native API Revisited Transaction tx = VanillaDb. txMgr().newTransaction( Connection. TRANSACTION_SERIALIZABLE, true); // Step 2 Planner planner = VanillaDb. newPlanner(); • A tx is created upon accepting String query = "SELECT s-name, d-name FROM departments, " an JDBC connection + "students WHERE major-id = d-id"; Plan plan = planner.createQueryPlan(query, – by tx); VanillaDb.txMgr().newT Scan scan = plan.open(); ransaction() // Step 3 System. out.println("name\tmajor"); • Passed as a parameter to System. out.println("-------\t-------"); Planners/Scanners/RecordFiles while (scan.next()) { String sName = (String) scan.getVal("s- name").asJavaVal(); String dName = (String) scan.getVal("d- name").asJavaVal(); System. out.println(sName + "\t" + dName); } scan.close(); // Step 4 tx.commit(); 3

  4. Transaction Manager in VanillaDB • VanillaDb.txMgr() is responsible for creating new transaction and maintaining the active transaction list TransactionMgr + serialConcurMgrCls : Class<?> + rrConcurMgrCls : Class<?> + rcConcurMgrCls : Class<?> + recoveryMgrCls : Class<?> + TransactionMgr() + onTxCommit(tx : Transaction) + onTxRollback(tx : Transaction) + onTxEndStatement(tx : Transaction) + createCheckpoint(tx : Transaction) + newTransaction(isolationLevel : int, readOnly : boolean) : Tranasction + newTransaction(isolationLevel : int, readOnly : boolean, txNum : long) : Transaction + getNextTxNum() : long 4

  5. Naïve ACID • C and I: each tx locks the entire DB it access – Responsibility of the Concurrency Manager • A and D: Write Ahead Logging (WAL) – Responsibility of the Recovery Manager 5

  6. Transaction Management • Each tx has an concurrency and Transaction recovery mgr instance • Transaction life + Transaction(concurMgr : ConcurrencyMgr, recoveryMgr : RecoveryMgr, bufferMgr : BufferMgr cycle readOnly : boolean, txNum : long) + addLifeCycleListener(l : TransactionLifeCycleListener) – On transaction + commit() + rollback() commit + endStatement() + getTransactionNumber() : long – On transaction + isReadOnly() : boolean + concurrencyMgr() : ConcurrencyMgr rollback + recoveryMgr() : RecoveryMgr + bufferMgr() : BufferMgr – On transaction end statement 6

  7. Listeners • Tx life cycle listener – Takes actions to tx life cycle events <<interface>> TransactionLifecycleListener + onTxCommit(tx : Transaction) + onTxRollback(tx : Transaction) + onTxEndStatement(tx : Transaction) <<abstract>> RecoveryMgr BufferMgr ConcurrencyMgr 7

  8. Transaction Listener: Concurrency Mgr • Serializable Concurrency manager – On tx commit/rollback: releases all locks @Override public void onTxCommit(Transaction tx) { lockTbl.releaseAll(txNum, false); } @Override public void onTxRollback(Transaction tx) { lockTbl.releaseAll(txNum, false); } @Override public void onTxEndStatement(Transaction tx) { // do nothing } 8

  9. Transaction Listener: Recovery Mgr • Basic recovery manager – On tx rollback: undo all modifications based on log records – On tx commit: writes log records to disk and flushes dirty pages @Override public void onTxCommit(Transaction tx) { VanillaDb. bufferMgr().flushAll(txNum); long lsn = new CommitRecord(txNum).writeToLog(); VanillaDb. logMgr().flush(lsn); } @Override public void onTxRollback(Transaction tx) { doRollback(tx); VanillaDb. bufferMgr().flushAll(txNum); long lsn = new RollbackRecord(txNum).writeToLog(); VanillaDb. logMgr().flush(lsn); } @Override public void onTxEndStatement(Transaction tx) { // do nothing } 9

  10. Transaction Listener: Buffer Mgr • Buffer manager – On tx rollback/commit: unpins all pages pinned by the current tx – Registered itself as a life cycle listener on start of each tx @Override public void onTxCommit(Transaction tx) { unpinAll(tx); } @Override public void onTxRollback(Transaction tx) { unpinAll(tx); } @Override public void onTxEndStatement(Transaction tx) { // do nothing } 10

  11. Today’s Focus: Concurrency Mgr VanillaCore JDBC Interface (at Client Side) Remote.JDBC (Client/Server) Server Query Interface Tx Planner Parse Algebra Storage Interface Sql/Util Concurrency Recovery Metadata Index Record Log Buffer File 11

  12. Outline • Schedules • Anomalies • Lock-based concurrency control – 2PL and S2PL – Deadlock – Granularity of locks • Dynamic databases – Phantom – Isolation levels • Meta-structures • Concurrency manager in VanillaCore 12

  13. Outline • Schedules • Anomalies • Lock-based concurrency control – 2PL and S2PL – Deadlock – Granularity of locks • Dynamic databases – Phantom – Isolation levels • Meta-structures • Concurrency manager in VanillaCore 13

  14. Transaction Management • The recovery manager ensures atomicity and durability of the database • How about consistency and isolation ? 14

  15. Consistency • Consistency – Txs will leave the database in a consistent state – I.e., all integrity constraints are meet • Primary and foreign key constrains • Non-null constrain • (Field) type constrain • … – Users are responsible for issuing “valid” txs 15

  16. Isolation • Isolation – Interleaved execution of txs should have the net effect identical to executing tx in some serial order – 𝑈 1 and 𝑈 2 are executed concurrently, isolation gives that the net effect to be equivalent to either • 𝑈 1 followed by 𝑈 2 or • 𝑈 2 followed by 𝑈 1 – The DBMS does not guarantee to result in which particular order 16

  17. Why do we need to interleave txs? 17

  18. Concurrent Txs • Since I/O is slow, it is better to execute Tx1 and Tx2 concurrently to reduce CPU idle time Tx1 Tx2 Tx1 Tx2 Tx1 Tx2 Tx1 Tx2 R(A) R(A) R(A) R(A) CPU CPU R(A) CPU R(A) CPU W(A) W(A) CPU CPU R(A) idle R(A) R(A) R(A) = CPU CPU CPU W(A) CPU W(B) R(A) W(B) W(B) R(A) CPU CPU W(B) W(A) • The concurrent result should be the same as serial execution in some order – Better concurrency 18

  19. Concurrent Txs • Pros: – Increases throughput – Shortens response time for short txs 19

  20. Transactions and Schedules • Before executing 𝑈 1 and 𝑈 2 : – A = 300, B = 400 • Two possible execution results – 𝑈 1 followed by 𝑈 2 • A = 400, B = 300  A = 424, B = 318 – 𝑈 2 followed by 𝑈 1 • A = 318, B = 424  A = 418, B = 324 20

  21. Transactions and Schedules • A schedule is a list of actions/operations from a set of transaction • If the actions of different transactions are not interleaved, we call this schedule a serial schedule 21

  22. Transactions and Schedules • Equivalent schedules – The effect of executing the first schedule is identical to the effect of executing the second schedule • Serializable schedule – A schedule that is equivalent to some serial execution of the transactions 22

  23. Transactions and Schedules • A possible interleaving schedule – Result: A = 424, B = 318 – A serializable schedule • 𝑈 1 followed by 𝑈 2 23

  24. Transactions and Schedules • How about this schedule? – Result: A = 424, B = 324 – A non-serializable schedule – Violates the isolation • DBMS’s view 24

  25. Outline • Schedules • Anomalies • Lock-based concurrency control – 2PL and S2PL – Deadlock – Granularity of locks • Dynamic databases – Phantom – Isolation levels • Meta-structures • Concurrency manager in VanillaCore 25

  26. Conflict Operations • What actions jeopardize the interleaving? – Those on the same object and conflict with each other • Conflicts: – Write-read conflict (on the same object) – Read-write conflict – Write-write conflict • Read-read conflict? • No 26

  27. Conflict Operations • Two operations on the same object are conflict if they are operated by different txs and at least one of these operations is a write 27

  28. Anomalies due to Write-Read Conflict • Reading uncommitted data – Dirty reads • A unrecoverable schedule – T1 cannot abort! – Cascading aborts if T2 completes after T1 aborts 28

  29. Anomalies due to Read-Write Conflict • Unrepeatable reads : – 𝑈 1 : 𝑗𝑔 (𝐵 > 0) 𝐵 = 𝐵 − 1 ; – 𝑈 2 : 𝑗𝑔 (𝐵 > 0) 𝐵 = 𝐵 − 1 ; – IC on 𝐵 : cannot be negative A=0 , A=-1, C T1 A=1 A=1, A=0, C T2 29

  30. Anomalies due to Write-Write Conflict • Lost updates : – 𝑈 1 : 𝐵 = 𝐵 + 1 ; 𝐶 = 𝐶 ∗ 10 ; – 𝑈 2 : 𝐵 = 𝐵 + 2 ; 𝐶 = 𝐶 ∗ 5 ; – Start with A=10, B=10 T1 A=11 B=500, C A=13, B=50, C T2 30

  31. Avoiding Anomalies • To ensure serializable schedule: • How? – Perform all conflicting actions between T1 and T2 in the same order (either T1’s before T2’s or T2’s before T1’s) – I.e., to ensure conflict serializability 31

  32. Conflict Equivalent • If two operations are not conflict, we can swap them to generate an equivalent schedule • Schedule 1 is conflict equivalent to schedule 2 and schedule 3 Schedule 1 Schedule 2 Schedule 3 32
