2015/08/18 MICRA2015 How supernova simulations are affected by input physics Tomoya Takiwaki (RIKEN Kei Kotake(Fukuoka) Yudai Suwa(Kyoto/MPA) 1 Supernovae: the death of the star ? Q:How does the explosion occur? 2 Important gradients

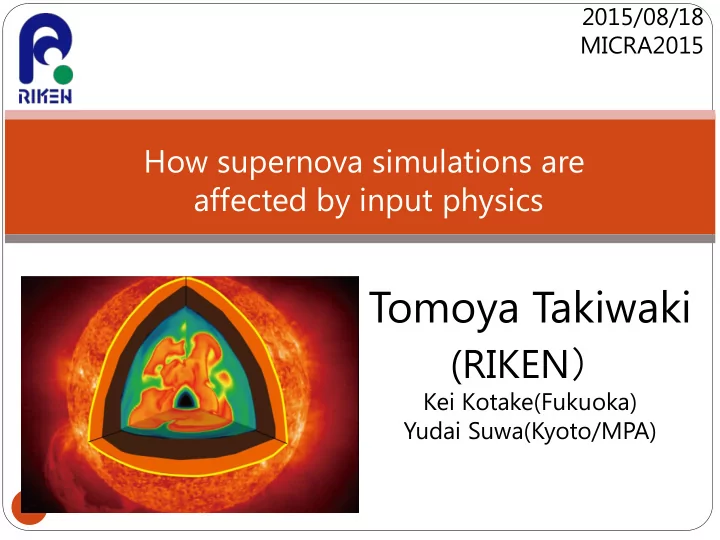

  1. 2015/08/18 MICRA2015 How supernova simulations are affected by input physics Tomoya Takiwaki (RIKEN ) Kei Kotake(Fukuoka) Yudai Suwa(Kyoto/MPA) 1

  2. Supernovae: the death of the star ? Q:How does the explosion occur? 2

  3. Important gradients for SNe Simulations  Gravity (Newtonian/Phenomenological GR/CFC GR/GR)  Neutrino Reaction and Transport  Equation of State  Turbulent and Instability(1D/2D/3D)  Progenitor 3

  4. Important gradients for SNe Simulations  Gravity (Newtonian/Phenomenological GR/CFC GR/GR)  Neutrino Reactions => Deep discussion will be given in Friday.  Equation of State  Turbulent and instability(1D/2D/3D)  Progenitor 4

  5. 2015/08/18 MICRA2015 How supernova simulations are affected by “ i nitial condition” Tomoya Takiwaki (RIKEN ) Kei Kotake(Fukuoka) Yudai Suwa(Kyoto/MPA) 5

  6. Current Status of SNe Mechanism Melson+15 Horiuchi+14 Melson+15 9.6 M_s 11.2 M_s 20.0 M_s zero metal Dilute outer layer ν -heating, convection ν -heating and Only ν -heating and SASI convection Self- consistent 3D simulations with MG ν -transport are available. Different mechanisms are found in different 6 environment. This slide contains my opinion that are not strictly confirmed.

  7. Entropy 7

  8. Key aspects of Neutrino Mechanism Radial Velocity Shock The shock is stalling. Pressure inside and ram Post Shock pressure out side balances. Postshocked Preshocked n,p Fe Pressure Ram Pressure RHS is determined by stellar structure(density profile). Radius Entropy~T^3/ρ LHS is determined by two Fe=>n, p ingredients. (1) Photodissociation Proto Neutron (2) Neutrino Heating Star cooled by Heated by photodissociation neutrino

  9. Mass accretion vs neutrino heating Neutrino Luminosity Successful Mass accretion rate vs explosion Neutrino Luminosity =>critical curve Failure of explosion BH formation Mass accretion rate

  10. 10

  11. Key aspects of Neutrino Mechanism Negative entropy gradient Entropy~T^3/ρ leads Rayleigh-Taylor convective instability Energy transport (Cold heavy matter is put over Fe=>n, p Hot light matter) Rayleigh-Taylor convection transfer energy outward. Heated by cooled by neutrino photodissociation Proto Neutron Star Radius Cooler than the initial Hotter than state but ν the initial heat is active state 11

  12. Question on ν -driven convection  Do we reproduce real Murphy+ 2011 energy transport?  Not obeying simple redistribution of entropy. Effect of ν - heating should be considered. energy flux Convective Phenomenological model  Is our resolution and Simple hydro-method redistribution enough to capture the feature correctly? => see David Radice’s talk 12

  13. SASI (Standing accretion shock instability) Pressure Advective-acoustic Wave cycle Vorticity Foglizzo’s slides Wave Standing Accretion Shock Instability(SASI) ↑ , ↑ , Rapid! Scheck+ 2008

  14. SASI 2D Axi-symmetric Impose large perturbation Takiwaki+2012 Nagakura+2012 SASI focus energy at one direction! ~70% of increase in total pressure can revive the shock.

  15. Dominant instability in Mdot-L plane => Light progenitor Neutrino driven convection grows under low mass convection accretion rate. => Heavy progenitor SASI grows under SASI high mass accretion rate. Question: Is this expectation true? Iwakami+ 2013

  16. 3D model with rotation 16

  17. 27.0M_s R2.0 17

  18. Spiral Mode (ρ - <ρ>)/<ρ> (P-<P>)/<P> 300km Rotational energy(T)/gravitational energy(W) reach some criteria => Spiral mode arises In the rigid ball: 14% Ott+ 2005 In SNe case: ~ 6% (Called low-T/W instability) 18

  19. Energy Transport by spiral mode Power of Energy Flux νheating = with rapid rot. 10^52 erg/s Power of Spiral wo rot. mode = 0.5 x 10^52 erg/s Entropy Radius[km] Spiral mode transport energy from center to outer region and helps explosion. 19

  20. Rotational Explosion Strong expansion is found at equatorial plane Eexp~5x10^50erg Nucleosynthesis? 20 (see also Nakamura+14 and Iwakami+14)

  21. Question on rotational explosion  In my model, initial Ω= 2 rad/s and final Ω=2000 rad/s at 400 ms after bounce.  Period of the zero-age pulsar is expected as ~10ms, Ott+ 2006 Ω=100rad/s.  Is the fast rotation allowed? Very efficient angular transport are required to justify the model. 21

  22. 22

  23. Summary  Simulations of SNe depend on the employed methods (will be discussed in Friday).  The energy Transport of turbulence plays important role. That’s why 1D fails and 2D or 3D tend to succeed.  SASI can be important for heavier progenitor.  We found interesting type of explosion. With rapid rotation, low-T/W instability arises. Spiral mode is promoted. Energy transport due to that helps explosion. 23

  24. Questions  Can we grasp the feature of convection?  Is the expectation below is correct? For light progenitor, with only ν -heating SNe explode. For normal progenitor convection helps SNe explosion. For heavy progenitor convection and SASI helps SNe explosion.  Explosion triggered by fast rotation is allowed? 24

  25. Appendix 25

  26. Averaged shock radius and Exp. Energy 26

  27. Pure ν heating 8.8M_s, Janka2008 Janka2012 Shock Radius Density 11.2 Time [ms] Radius He envelope Easy shock revival Dilute outer layor 27

  28. Pure ν heating Explosion Energy[10^50erg] Smartt 2009 Janka+12, ~ Explosion Energy 2D models Amount of Ni 15 8.8 Time[s] Mass of the progenitor 28

  29. How does Y_l affect the evolution of the shock? Electron capture rate ↓ , Y_l ↑ 1. Pressure ↑ , Sound speed ↑ , 2. starting position of the shock ↑ radius Shock starts! v_r -c_s Mass of iron to dissociate ↓ 3. Hot water Ice Hot water Ice <=Energetic Shock! The energy of the Shock ↑ 4. 29

  30. Neutrino Reactions Yl=0.38 Yl=0.34 Ye~0.31 Ye=0.29 There are still several minor points that are remaining to be updated. Updated set is roughly consistent with the more sophisticated works(e.g. Mueller+2010). 30

  31. Multi-Dimensional Simulations Shock radius[km] Yl=0.38 Yl=0.34 Time[ms] Unfortunately our 3D model with updated neutrino reaction does not explode. But do not forget that we now ignore GR Effect that 31 should help the explosion!

  32. Dependence on Radiation Hydro VE(Buras) M1 IDSA VE > M1 > IDSA Density of neutrino could be larger in more sophisticated method.

  33. Comparison of the shock radius in 1D Shock radius[km] Yl=0.38 Yl=0.34 Time[ms] Smaller Y_l results in smaller shock radius! It’s strange but reduced set is closer to the trajectory of more sophisticated calculation. 33

  34. Basic idea to connect EOS and Explosion The PNS gradually 1. shrinks by the gravity. ν E_grav is released. Sonic wave 2. E_thermal is 3. increased. The L_ν and sonic 4. ν waves are emitted PNS ν from the surface of PNS. Soft EOS releases large energy and makes the PNS dense, that ν produce strong acoustic wave. Softer EOS is preferable to the explosion. 34

  35. Neutrino Luminosity PNS radius[km] Luminosity (LE^2) soft stiff stiff soft 15M_s Time[ms] Time[ms] LS(K220):Soft EOS => rapidly shrink => Large L_ν Shen: Stiff EOS => slowly shrink => small L_ν (Sumiyoshi+2005 and Fisher+ 2013 show similar results.) 35

  36. Sonic Wave LS STOS radius[km] radius[km] Time[ms] Time[ms] Gray: gain radius, black PNS radius Strong sonic wave is reflected at the PNS! (It is a little bit hard to see, but) softer EOS make stronger sonic wave. 36 (Couch 2013 and Suwa+ 2013 show similar results.)

  37. Sonic Wave Gray: gain radius, black PNS radius 37

  38. Evolution of the shock soft soft radius[km] radius[km] stiff stiff updated reduced 2D 2D Time[ms] Time[ms] radius[km] Softer EOS shows larger soft shock radius. stiff reduced 2D Time[ms] 38

  39. Emergence of Multi-species EOS radius[km] radius[km] reduced updated 2D 2D Time[ms] Time[ms] SFHx and DD2: Multi species of heavy nuclei is included. SFHx and DD2 > LS and STOS Employing MS may help SNe explosion. But in one-dimensional GR sim, that situation is contradictory. (Fisher+2014) 39

  40. In other words? We understand the radius of PNS is very important probe to determine success or failure of supernovae. Is the result translated to the terms of nuclear physics? 40

  41. NS radius vs PNS radius Fisher+2013 Takiwaki in prep NS radius: PNS radius: TM1 > TMA > DD2 > SFHx TM1 > TMA ~ DD2> SFHx STOS > LS STOS > LS PNS radius is “roughly” predicted by the NS radius at zero-temperature. 41

  42. Many theories for EOS L S K Fisher+2014 42

  43. Parametric EoS Togashi+ in prep Is it fair to compare the EOS using different “theory”? Togashi-san uses LS parametrization and make EOSs of different K,S,L. That enable us to compare the EOS fairly and extract information of K,S and L from the simulations. 43

  44. What parameter determine PNS radius r=0.48 NS PNS Radius of NS (T~0 and Y_e~0) is determine by L. Radius of PNS is not determine by L. S and K have stronger correlation to PNS. r=0.71 for S. r= 0.69 for K. 44
