The future of Python on the Web My data journey 2 3 4 5 6 7 8 - PowerPoint PPT Presentation

The future of Python on the Web My data journey 2 3 4 5 6 7 8 Lean Data Practices https://www.mozilla.org/en-US/about/policy/lean-data/ 9 vs. (potentially) universal specific 18GB / day 2TB / day 10 Communicating about Data

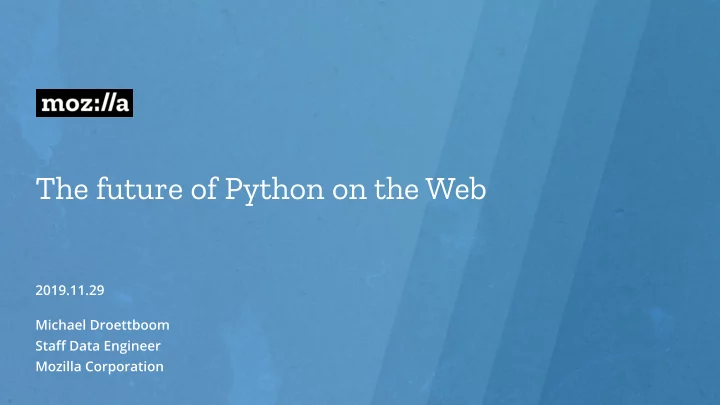

  1. The future of Python on the Web

  2. My data journey 2

  3. 3

  4. 4

  5. 5

  6. 6

  7. 7

  8. 8

  9. Lean Data Practices https://www.mozilla.org/en-US/about/policy/lean-data/ 9

  10. vs. (potentially) universal specific 18GB / day 2TB / day 10

  11. Communicating about Data Science Mozilla Confidential 11

  12. The lifecycle of data science Exploration Explanation Collaboration Exploration and Explanation in Computational Notebooks 12 12

  13. 13

  14. Architecture Jupyter-like model Iodide model Browser Data Data UI Server Data Browser Kernel Server Kernel Data UI Data Remote Compute (optional) Kernel Adapted from: https://jupyter.readthedocs.io/en/latest/architecture/how_jupyter_ipython_work.html#notebooks 14

  15. 15

  16. iomd Human readable and editable ● %% md # This is a markdown header Easy for programs to support ● %% js el = document.getElementById(“foo”) Diffable with standard tools ● %% py See Matlab cell mode, R Markdown, ● from js import el Jupytext (and many others) el.text = “Hello World!” 16

  17. Javascript PROS CONS FAST: Some of the best compiler Legacy “rough edges” technology of any dynamic language Familiar to many programmers Not familiar to many data scientists Large selection of user interface and Lacks a mature data science ecosystem visualization tools 17

  18. What if we could bring ฀฀ Python to the browser? 18

  19. Transpiling Convert Python to Javascript Python Javascript def fib(n): export var fib = function(n) { if n == 1: if (n == 1) return 0; return 0 else if (n == 2) return 1; elif n == 2: else return fib(n - 1) + fib(n - 2) return 1 }; else: return fib(n - 1) + fib(n - 2) transcrypt, pyjs 19

  20. Transpiling Convert Python to Javascript Pros Cons Small Server-side "ahead of time" ● ● Fast Subtly different semantics ● ● Covering all of CPython's functionality ● is a lot of work Keeping up with CPython's progress is ● a lot of work No support for C extensions (Numpy, ● Scipy, etc.) 20

  21. Interpreter Porting Rewrite the Python interpreter and VM in Javascript C Javascript static int function $add(self, item){ set_add_entry( self.$items.push(item) PySetObject *so, var value = item.valueOf() PyObject *key, if(typeof value == "number"){ Py_hash_t hash self.$numbers.push(value) ) } { while (1) { if (entry->hash == hash) { PyObject *startkey = entry->key; assert(startkey != dummy); if (startkey == key) goto found_active; brython, skulpt, batavia 21

  22. Interpreter Porting Rewrite Python interpreter and VM in Javascript Pros Cons Can compile and run Python entirely in Larger download and slower startup ● ● the browser than transpiling Can embed a transpiler in the browser Subtly different semantics ● ● for a hybrid approach Covering all of CPython's functionality ● is a lot of work Keeping up with CPython's progress is ● a lot of work No support for C extensions ● 22

  23. WebAssembly 23

  24. Compile to WebAssembly Recompile the Python interpreter to WebAssembly C WebAssembly static int (func (;1839;) (type 4) (param i32 i32 i32) (result i32) set_add_entry( (local i32 i32 i32 i32 i32 i32 i32 i32 i32 i32) PySetObject *so, ... PyObject *key, if ;; label = @1 Py_hash_t hash block ;; label = @2 ) block ;; label = @3 { block ;; label = @4 loop ;; label = @5 while (1) { block ;; label = @6 if (entry->hash == hash) { block (result i32) ;; label = @7 PyObject *startkey = entry->key; block ;; label = @8 assert(startkey != dummy); if (startkey == key) goto found_active; PyPy.js, cpython-wasm, Pyodide 24

  25. Compile to WebAssembly Recompile the Python interpreter to WebAssembly Pros Cons It's the same as upstream CPython Very large download sizes ● ● Everything that can work does work High memory usage ● ● Supports C extensions (Numpy, Scipy ● etc.) Performance on par with native code ● 25

  26. Tradeoffs Transpiling Porting Recompiling interpreter Download size Small Medium Large Memory usage Small Medium Large Similarity to upstream Low Medium High Easily track upstream ✅ changes Supports C extensions ✅ 26

  27. Pyodide The scientific Python stack, compiled to WebAssembly 27

  28. Pyodide Upstream CPython ● numpy, pandas, matplotlib, scipy ● "pip install" pure Python wheels ● 28

  29. Your Python Code Pyodide Python CPython Extension Emscripten system abstraction Javascript interpreter DOM APIs 29

  30. 30

  31. Accelerating Python Input Process Output C extension Cython Numba JavaScript Conversion Conversion 31

  32. Sharing arrays with zero copying Future? 32

  33. The Web API ● DOM ● Graphics: Canvas, WebGL ● Audio: WebAudio, WebRTC ● Video: HTMLMediaElement ● Device: Notifications, WebBluetooth ● Storage: Client-side storage 33

  34. Pyodide Demo 34

  35. Performance https://github.com/serge-sans-paille/numpy-benchmarks 35

  36. Ways to get more performance Cython ● Numba ● PyPy ● Apache Arrow ● General purpose GPU ● Distributed computing ● 36

  37. What doesn't work Probably never Someday Raw network sockets threads ● ● Subprocesses async ● ● Access to the host filesystem SIMD ● ● General Purpose GPU computing ● 37

  38. Monolithic Libraries package Total size Loaded at import Scipy 65MB 11MB Pandas 50MB 43MB Matplotlib 20MB 13MB Numpy 20MB 11MB * values are for native x86_64 Python 38

  39. Future Directions conda forge infrastructure for package building 39

  40. Future directions Language interoperability Julia ⬛ Works today Lua ⬛ Planned Python Text in/out only OCaml Javascript R JSX Typescript Apache Arrow / Ruby libndtype Rust 40

  41. We're open source on github http:/ /github.com/iodide-project/ Come build We need: Experimenters ● with us! Designers ● Programmers ● Writers ● Bug hunters ● 41

  42. Our team Roman Yurchak Brendan Colloran Devin Bayly Kirill Smelkov Hamilton Ulmer William Lachance Michael Droettboom Teon Brooks Madhur Tandon John Karahalis Rob Miller Dhiraj Barnwal Jannis Leidel ... ...and many other community contributors 42

  43. iodide.io github.com/iodide-project mdroettboom@mozilla.com 43
