Statistical Models of Images, with Application to Denoising and Texture Synthesis Eero Simoncelli Center for Neural Science, and Courant Institute of Mathematical Sciences New York University http://www.cns.nyu.edu/ eero Statistical Image

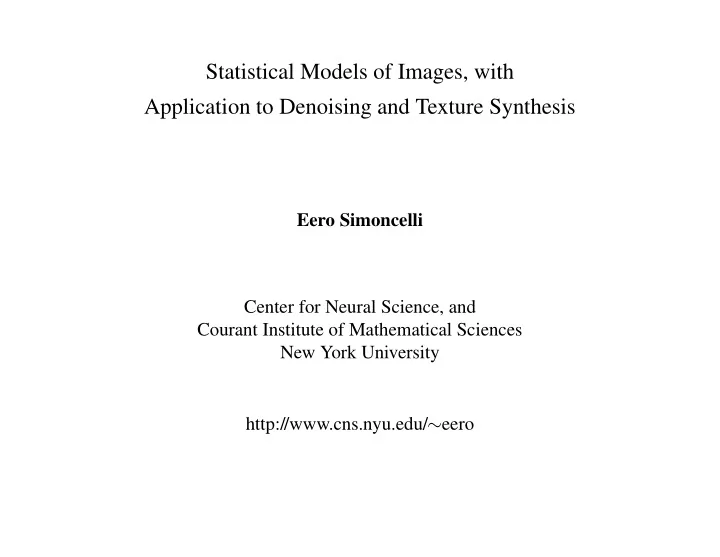

  1. Statistical Models of Images, with Application to Denoising and Texture Synthesis Eero Simoncelli Center for Neural Science, and Courant Institute of Mathematical Sciences New York University http://www.cns.nyu.edu/ ∼ eero

  2. Statistical Image Models Applications in Image Processing / Graphics: • Compression • Restoration • Enhancement • Synthesis Theoretical Neurobiology: • Ecological optimality principle for early visual processing • Adaptation / plasticity / learning SIAM, 3/02 1

  3. Model I: Gaussian 6 10 5 10 4 10 Power 3 10 2 10 1 10 0 10 0 1 2 3 10 10 10 10 Spatial−frequency (cycles/image) Power spectra of natural images fall as 1 / f α , α ∼ 2. [Field ’87, Ruderman & Bialek ’94, etc] SIAM, 3/02 2

  4. Bandpass Filters Reveal non-Gaussian Behaviors 0 10 Response histogram Gaussian density Probability -2 10 -4 10 500 0 500 Filter Response Marginal densities of bandpass filtered images are non-Gaussian. [Field87, Mallat89] . SIAM, 3/02 3

  5. Optimizing non-Gaussianity Linear operators with maximally independent (or maximally non-Gaussian) re- sponses are oriented bandpass filters [Bell/Sejnowski ’97; Olshausen/Field ’96] SIAM, 3/02 4

  6. Sample Kurtosis vs. Filter Bandwidth 16 14 12 Sample Kurtosis 10 8 6 4 0 0.5 1 1.5 2 2.5 3 Filter Bandwidth (octaves) For most images, maximum is near one octave [after Field, 1987] . SIAM, 3/02 5

  7. Separable Wavelets • Basis functions are bandpass filters, related by translation, dilation, modu- lation. • Orthogonal. • Lacking translation- and rotation-invariance. SIAM, 3/02 6

  8. Steerable Pyramid • Basis functions are oriented bandpass filters, related by translation, dilation, rotation (directional derivatives, order K − 1). • Tight frame, 4 K / 3 overcompleteness for K orientations. • Translation-invariant, rotation-invariant. [Freeman & Adelson, ’90; Simoncelli et.al., ’91; Freeman & Simoncelli ’95] SIAM, 3/02 7

  9. Steerable Pyramid: Block Diagram H 0 (- ω ) H 0 ( ω ) L 0 (- ω ) B 0 (- ω ) L 0 ( ω ) B 0 ( ω ) B 1 ( ω ) B 1 (- ω ) B K-1 (- ω ) B K-1 ( ω ) L(- ω ) 2 ↓ 2 ↑ L( ω ) Lowpass band is recursively split using central diagram (gray box). SIAM, 3/02 8

  10. Model II: Wavelet Marginals Boats Lena Toys Goldhill −100 −50 0 50 100 −100 −50 0 50 100 −100 −50 0 50 100 −100 −50 0 50 100 p = 0 . 62 p = 0 . 56 p = 0 . 52 p = 0 . 60 ∆ H = 0 . 014 ∆ H = 0 . 013 ∆ H = 0 . 021 ∆ H = 0 . 0019 • Coefficient densities well fit by generalized Gaussian [Mallat ’89; Simoncelli/Adelson ’96] : f ( c ) ∝ e −| c / s | p , p ∈ [ 0 . 5 , 0 . 8 ] . • Non-Gaussianity due to both image content and choice of basis. SIAM, 3/02 9

  11. Coefficient Dependency Large-magnitude subband coefficients are found at neighboring positions, ori- entations, and scales. SIAM, 3/02 10

  12. Wavelet Conditional Histogram 1 1 0.6 0.6 0.2 0.2 -40 0 40 -40 0 40 50 40 0 -40 0 -40 40 • Conditional mean is zero • But, conditional variance grows with amplitude of L 2 SIAM, 3/02 11

  13. Conditional Histograms Strength of dependency is different for each pair of filters: But the form of dependency is highly consistent across a wide range of images. SIAM, 3/02 12

  14. Model III: Local GSM model Model generalized neighborhood of coefficients as a Gaussian Scale Mixture (GSM) [Andrews & Mallows ’74] : x = √ z � � u , where - z and � u are independent - � x | z is Gaussian, with covariance zC u - marginals are always leptokurtotic - we choose a flat (non-informative) prior on log ( z ) [Wainwright & Simoncelli, ’99] SIAM, 3/02 13

  15. GSM Simulations 500 500 500 500 0 0 0 0 image data −500 −500 −500 −500 −500 0 500 −500 0 500 −500 0 500 −500 0 500 500 500 500 500 0 0 0 0 model sim −500 −500 −500 −500 −500 0 500 −500 0 500 −500 0 500 −500 0 500 Conditional Histograms of pairs of coefficients with different spatial separa- tions. SIAM, 3/02 14

  16. Denoising I (Gaussian model) y = x + w , where w is Gaussian, white. y is an observed transform coefficient. Bayes least squares solution: σ 2 x IE ( x | y ) = y σ 2 x + σ 2 w SIAM, 3/02 15

  17. Denoising II (marginal model) p = 0 . 5 p = 1 . 0 p = 2 . 0 Bayes least squares solution: � dx P ( y | x ) P ( x ) x IE ( x | y ) = � dx P ( y | x ) P ( x ) No closed-form expression with generalized Gaussian prior, but numerical com- putation is reasonably efficient. [Simoncelli & Adelson, ’96] SIAM, 3/02 16

  18. Denoising III (GSM model) � IE ( x | � y ) = dz P ( z | � y ) IE ( x | � y , z ) � zC u ( zC u + C w ) − 1 � � � = dz P ( z | � y ) y ctr where y T ( zC u + C w ) − 1 � P ( � y | z ) P ( z ) y | z ) = exp ( − � y / 2 ) P ( z | � y ) = � dz P ( � y | z ) P ( z ) , P ( � ( 2 π ) N | zC u + C w | � Numerical computation of solution is reasonably efficient if one jointly diago- nalizes C u and C w ... [Portilla et.al., ’01] SIAM, 3/02 17

  19. Denoising Simulation: Face noisy I-linear (4.8) (10.61) III-GSM II-marginal nbd: 5 × 5 + p (11.98) (13.60) - Semi-blind (all parameters estimated except for σ w ). - All methods use same steerable pyramid decomposition. - SNR (in dB) shown in parentheses. SIAM, 3/02 18

  20. Denoising Simulation: Fingerprint noisy original (8.1) soft thresholding GSM (17.5) (21.2) - PSNR shown in parentheses. - Both methods use same steerable pyramid decomposition. - Joint statistics capture oriented structures. SIAM, 3/02 19

  21. Denoising Comparison 16 14 12 10 8 6 4 2 0 5 10 15 20 25 30 35 40 45 50 PSNR improvement as a function of noise level, averaged over three images: - squares: GSM - triangles: MatLab wiener2 , optimized neighborhood [Lee, ’80] - circles: soft thresholding, optimized threshold [Donoho, ’95] SIAM, 3/02 20

  22. Example Texture Types structured random periodic 2nd-order Can we derive a statistical model (and sampling technique) to represent all of these? SIAM, 3/02 21

  23. Synthesis: Gaussian model Captures periodicity. SIAM, 3/02 22

  24. Synthesis: Wavelet marginal model Captures some local structure. [Heeger & Bergen, ’95] SIAM, 3/02 23

  25. Synthesis: GSM model [Portilla & Simoncelli, ’00] SIAM, 3/02 24

  26. Credits Local Gaussian Scale mixtures: Martin Wainwright (MIT) Global Tree Model: Martin Wainwright & Allan Willsky (MIT) Denoising: Javier Portilla (U. Granada), Vasily Strela (Drexel U.), Martin Wainwright (MIT) Texture Analysis/Synthesis: Javier Portilla (U. Granada) Compression: Robert Buccigrossi (U Pennsylvania) Funding provided by the National Science Foundation, the Alfred P. Sloan Foundation, and the Howard Hughes Medical Institute. SIAM, 3/02 25
