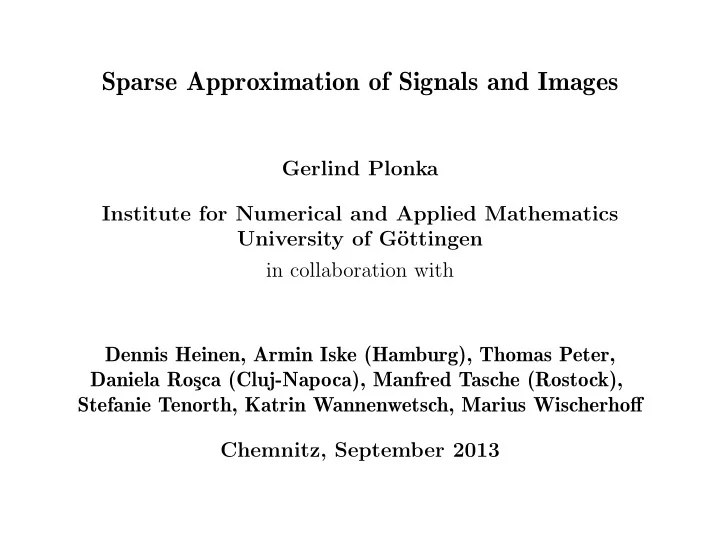

Sparse Approximation of Signals and Images Gerlind Plonka Institute for Numerical and Applied Mathematics University of G¨ ottingen in collaboration with Dennis Heinen, Armin Iske (Hamburg), Thomas Peter, Daniela Ro¸ sca (Cluj-Napoca), Manfred Tasche (Rostock), Stefanie Tenorth, Katrin Wannenwetsch, Marius Wischerhoff Chemnitz, September 2013

Sparse Approximation of Signals and Images Outline • Talk 1: Prony-like methods and applications I • Talk 2: Prony-like methods and applications II • Talk 3: Adaptive transforms for sparse image approxima- tion 1

Prony-like methods and applications I Outline • Introduction • Classical Prony method • Relations to other methods • Numerical approach • Recovering of spline functions from a few Fourier samples • Reconstruction of sparse linear combinations of translates of a function 2

Introduction (a) Consider the following problem: � M c j e T j x Function f ( x ) = j =1 We have function values f ( ℓ ), ℓ = 0 , . . . , 2 N − 1, N ≥ M We want c j ∈ C , T j ∈ [ − α, 0] + i [ − π, π ), j = 1 , . . . , M . Problem: Find the best M -term approximation, i.e. an optimal linear combina- tion of M terms from the set { e T j x : T j ∈ [ − α, 0] + i [ − π, π ) } . 3

Introduction (b) Determine the breakpoints and the associated jump magnitudes of a compactly supported piecewise polynomial if finitely many values of its Fourier transforms are given. Consider N � c m j B m f ( x ) = j ( x ) , j =1 where B m j is a B-spline of order m with knots T j , . . . , T j + m . How many Fourier samples of f are needed in order to recover f com- pletely? c 1 Example. f ( x ) = c 1 1 1 [ T 1 ,T 2 ) ( x ) T 1 T 2 4

Introduction (c) A vector x ∈ C N is called M -sparse, if M ≪ N and if only M components of x are different from zero. Problem. Recover an M –sparse vector x ∈ C N , if only few scalar products y k = a ∗ k x , k = 1 , . . . , 2 L with L ≥ M with suitable chosen vectors a k ∈ C N are given. With A T = ( a 1 , . . . , a 2 L ) ∈ C N × 2 L , find an M -sparse solution of the underdetermined system Ax = y . 5

Classical Prony method � M c j e T j x Function f ( x ) = j =1 We have M , f ( ℓ ), ℓ = 0 , . . . , 2 M − 1 We want c j ∈ C , T j ∈ [ − α, 0] + i [ − π, π ), j = 1 , . . . , M . 6

Classical Prony method � M c j e T j x Function f ( x ) = j =1 We have M , f ( ℓ ), ℓ = 0 , . . . , 2 M − 1 We want c j ∈ C , T j ∈ [ − α, 0] + i [ − π, π ), j = 1 , . . . , M . Introduce the Prony polynomial � z − e T j � � M � M p ℓ z ℓ P ( z ) := = j =1 ℓ =0 with unknown parameters T j and p M = 1. � M � M � M � M c j e T j m M � c j e T j ( ℓ + m ) = p ℓ e T j ℓ p ℓ f ( ℓ + m ) = p ℓ j =1 j =1 ℓ =0 ℓ =0 ℓ =0 � M c j e T j m P ( e T j ) = 0 , = m = 0 , . . . , M − 1 . j =1 6

Reconstruction algorithm Input : f ( ℓ ), ℓ = 0 , . . . , 2 M − 1 • Solve the Hankel system       f (0) f (1) . . . f ( M − 1) p 0 f ( M )  f (1) f (2) . . . f ( M )     f ( M + 1)  p 1        = −  . . . . . .     . . . . . . . . . . p M − 1 f ( M − 1) f ( M ) . . . f (2 M − 2) f (2 M − 1) • Compute the zeros of the Prony polynomial P ( z ) = � M ℓ =0 p ℓ z ℓ and extract the parameters T j from its zeros z j = e T j , j = 1 , . . . , M . • Compute c j solving the linear system M � c j e T j ℓ , f ( ℓ ) = ℓ = 0 , . . . , 2 M − 1 . j =1 Output : Parameters T j and c j , j = 1 , . . . , M . 7

Literature [Prony] (1795): Reconstruction of a difference equation [Schmidt] (1979): MUSIC (Multiple Signal Classification) [Roy, Kailath] (1989): ESPRIT (Estimation of signal parameters via rotational invariance techniques) [Hua, Sakar] (1990): Matrix-pencil method [Stoica, Moses] (2000): Annihilating filters [Potts, Tasche] (2010, 2011): Approximate Prony method Golub, Milanfar, Varah (’99); Vetterli, Marziliano, Blu (’02); Maravi´ c, Vetterli (’04); Elad, Milanfar, Golub (’04); Beylkin, Monzon (’05,’10); Batenkov, Sarg, Yomdin (’12, ’13); Filbir, Mhaskar, Prestin (’12); Peter, Potts, Tasche (’11,’12,’13); Plonka, Wischerhoff (’13); ... 8

Relation to differential and difference equations Consider a homogeneous linear differential equation with constant co- efficients of the form M � ξ k f ( k ) ( x ) = 0 . k =0 Then a general solution is of the form M � c k e λ k x , f ( x ) = k =1 where λ k are the pairwise distinct zeros of the characteristic polynomial � M k =0 ξ k z k . Hence, the Prony method recovers solutions of differential equations from its functions values f ( l ), l = 0 , 1 , . . . , 2 M − 1. 9

Analogously, consider a homogeneous difference equation with constant coefficients of the form M � p k f ( k + m ) = 0 , m ∈ Z . k =0 Then a general solution is of the form M � c k e λ k x , f ( x ) = k =1 where λ k are the pairwise distinct zeros of the characteristic polynomial � M k =0 p k z k . Hence, the Prony method recovers solutions of difference equations from its values f ( l ), l = 0 , 1 , . . . , 2 M − 1. 10

Relation to linear prediction methods Let h = ( h n ) n ∈ N 0 be a discrete signal. Linear prediction method : Find suitable predictor parameters p j ∈ C such that the signal value h ℓ + M can be expressed as a linear combina- tion of the previous signal values h j , j = ℓ, . . . , ℓ + M − 1, i.e. M − 1 � h ℓ + M = ( − p j ) h ℓ + j , ℓ ∈ N 0 . j =0 With p M := 1, this representation is equivalent to a homogeneous linear difference equation. Assuming that M � c j z k h k = j , k ∈ N 0 , j =1 we obtain the classical Prony problem where the Prony polynomial coincides with the negative value of the forward predictor polynomial. 11

Relation to annihilating filters Consider the discrete signal h = ( h n ) n ∈ Z with M � c j z n h n := j , j ∈ Z , z j ∈ C , | z j | = 1 . j =1 The signal a = ( a n ) n ∈ Z is called an annihilating filter of h , if ∞ � ( a ∗ h ) n := a ℓ h n − ℓ = 0 , n ∈ Z . ℓ = −∞ Consider M � M M � M � � � � � � c j z n − ℓ c j z n a ℓ z − ℓ 0 = a ℓ = j j j j =1 j =1 ℓ =0 ℓ =0 Hence, the z –transform a ( z ) of the annihilating filter a and the Prony polynomial p ( z ) have the same zeros z j , j = 1 , . . . , M , since z M a ( z ) = p ( z ) for all z ∈ C \ { 0 } . 12

Relation to Pad´ e approximation M M � � c j e i T j k = c j z k with z j = e i T j . Consider h ( k ) = j j =1 j =1 By ∞ � 1 z j z − k = z k 1 − z j /z = z − z j k =0 we find the z-transform of ( h ( k )) k ∈ N 0 , M ∞ � � z = a ( z ) h ( k ) z − k = h ( z ) = c j p ( z ) , z − z j j =1 k =0 where p ( z ) is the Prony polynomial and a ( z ) is a polynomial of degree M . Hence the Prony method can be regarded as Pad´ e approximation. 13

Numerical approach to Prony’s method � M c j e T j x . Let f ( x ) = j =1 Given: noisy samples f k = f ( k ) + e k , k = 0 , . . . , 2 N − 1 Given: L ≥ M (upper bound for M ) and N ≥ L Wanted: M , c j ∈ C , T j ∈ [ − α, 0] + i [ − π, π ), j = 1 , . . . , M . We consider the Hankel matrix H 2 N − L,L +1 = ( f ℓ + m ) 2 N − L − 1 ,L ℓ,m =0   f (0) f (1) . . . f ( L )  f (1) f (2) . . . f ( L + 1)    = . . .   . . . . . . h (2 N − L − 1) h (2 N − L ) . . . f (2 N − 1) = ( f 0 , f 1 , . . . , f L ) 14

For the submatrix H M,M = ( f 0 , . . . , f M − 1 ) and f M = ( f ( M + ℓ )) M − 1 ℓ =0 we had H M p = − f M , where p = ( p 0 , . . . , p M − 1 ) T contains the coefficients of the Prony po- lynomial. Consider the companion matrix   0 0 . . . 0 − p 0   1 0 . . . 0 − p 1   C M ( p ) = . . . .   . . . . . . . . 0 0 . . . 1 − p M − 1 Then H M C M ( p ) = ( f 1 , . . . , f M ) =: H M (1) and the eigenvalues of C M ( p ) = H − 1 M H M (1) are the wanted zeros z j = e T j of the Prony polynomial. 15

ESPRIT for equispaced sampling (Potts, Tasche ’13) Input : L , f ( ℓ ), ℓ = 0 , . . . , 2 N − 1, where L ≤ N • Compute the SVD H 2 N − L,L +1 = U 2 N − L D 2 N − L,L +1 W L +1 of the rectangular Hankel matrix H 2 N − L,L +1 . Determine the ap- proximate rank M of H 2 N − L,L +1 . • Put W M,L ( s ) := W L +1 (1 : M, 1 + s : L + s ) , s = 0 , 1 and � W M,L (0) T � † W M,L (1) T , F M := and compute the eigenvalues z j = e T j , j = 1 , . . . , M , of the matrix F M . • Compute c j solving the overdetermined linear system M � c j e T j ℓ , f ( ℓ ) = ℓ = 0 , . . . , 2 N − 1 . j =1 Output : Parameters T j and c j , j = 1 , . . . , M . 16

Prony-like methods and applications II Outline • Recovering of spline functions from a few Fourier samples • Reconstruction of sparse linear combinations of translates of a function • Recapitulation: Classical Prony method • Reconstruction of M-sparse polynomials • The generalized Prony method • Application to the translation and the dilation operator • Recovery of sparse sums of orthogonal polynomials • Recovery of sparse vectors 17
