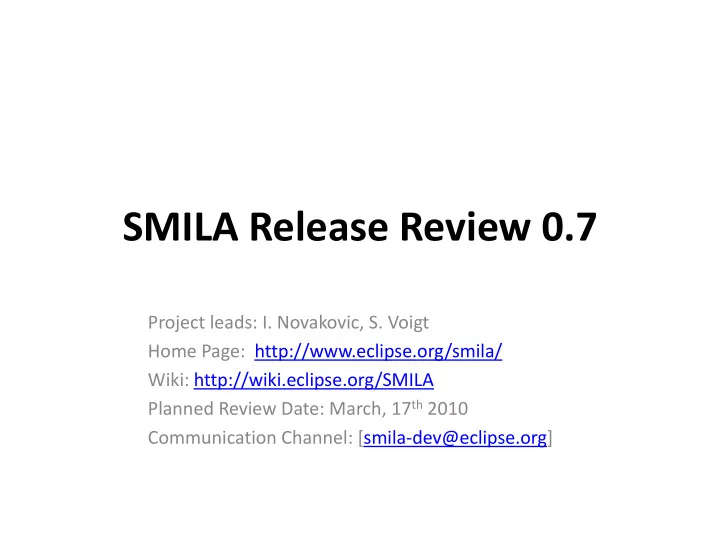

SMILA Release Review 0.7 Project leads: I. Novakovic, S. Voigt Home Page: http://www.eclipse.org/smila/ Wiki: http://wiki.eclipse.org/SMILA Planned Review Date: March, 17 th 2010 Communication Channel: [smila-dev@eclipse.org]
SMILA - SeMantic Information Logistics Architecture “Unleashing the potential of unstructured data sources” • The amount and diversity of information is growing exponentially, mainly in the area of unstructured data, like emails, text files, blogs, images etc. Poor data accessibility, user rights integration and the lack of semantic meta data are constraining factors for building next generation enterprise search and other document centric applications. Missing standards result in proprietary solutions with huge short and long term cost. • SMILA is an extensible framework for building search solutions to access unstructured information in the enterprise. Besides providing essential infrastructure components and services, SMILA also delivers ready-to-use add-on components, like connectors to most relevant data sources. Using the framework as their basis will enable developers to concentrate on the creation of higher value solutions, like semantic driven applications etc.
Features • Enterprise Search Framework • Crawling/Agent Framework • Processing Framework – BPEL • Search Framework – BPEL • General – Monitoring / Management (JMX) – Distributable (embedded JMS)
Non-Code Aspects • User Documentation • Every Feature/Bundle is well documented (http://wiki.eclipse.org/SMILA) • JavaDoc • Many JUnit-Test cases (557 on the last count) to validate that APIs are working • Examples: • http://wiki.eclipse.org/SMILA/Documentation_for_5_Minutes_to_Suc cess • How-tos • Several How-tos for Setup / Build / Creation of bundles / Integration of Components (for Developers/Integrators)
Non-Code Aspects: Talks / Demos Type Event Location Date URL 2008 Talk Entwicklertag 2008 Karlsruhe, TPK 07.05.2008 http://nontypo.andrena.de/Entwicklertag/2008/Vortraege/EILF.html Talk & Demo 2. Partnertreffen ORDO KL, empolis 26.06.2008 Talk & Demo TEXO Development Day Karlsruhe, SAP-Research 10.07.2008 Talk TEXO Plenum GT, empolis 09.10.2008 http://ftp.informatik.rwth-aachen.de/Publications/CEUR-WS/Vol- Poster ISWC 2008 Karlsruhe, Kongresszentrum 28.10.2008 401/iswc2008pd_submission_44.pdf Training Empolis Evolution GT, empolis 12.11.2008 Ludwigsburg, Forum am Talk ESE 2008 Schlosspark 20.11.2008 http://www.eclipsecon.org/summiteurope2008/sessions?id=41 Webinar - Web 17.12.2008 http://live.eclipse.org/node/617 2009 Talk & Demo EclipseCon 2009 Santa Clara, CA, USA 26.03.2009 http://www.eclipsecon.org/2009/sessions?id=398 Tutorial BIS 2009 Poznan, Polen 28.04.2009 http://bis.kie.ae.poznan.pl/12th_bis/tutorial.php?tut=smile2009 Talk OpEN.SC 2009 B, Charité Campus 08.05.2009 http://opensc.charite.de/index.php Talk IKS Workshop Salzburg, Österreich 28.05.2009 http://www.iks-project.eu/ International THESEUS Tutorial Symposium 2009 B, BMWi 30.06.2009 http://www.theseus.joint-research.org/index.php?id=43#si1 Tutorial LWA 2009 Darmstadt 23.09.2009 http://lwa09.informatik.tu-darmstadt.de/bin/view/LWA/Tutorial Workshop Workshop with InfoChem Bielefeld 26.10.2009 Ludwigsburg, Forum am Talk ESE 2009 Schlosspark 28.10.2008 http://www.eclipsecon.org/summiteurope2009/sessions?id=876 Talk TEXO Meeting Dresden 06.11.2009 Talk & Demo Eclipse DemoCamp Berlin 23.11.2009 http://wiki.eclipse.org/Eclipse_DemoCamps_November_2009/Berlin http://wiki.eclipse.org/Eclipse_DemoCamps_November_2009/Braun Talk & Demo Eclipse DemoCamp Braunschweig 25.11.2009 schweig/Hanover http://wiki.eclipse.org/Eclipse_DemoCamps_November_2009/Kaise Talk & Demo Eclipse DemoCamp Kaiserslautern 26.11.2009 rslautern http://wiki.eclipse.org/Eclipse_DemoCamps_November_2009/Karlsr Talk & Demo Eclipse DemoCamp Karlsruhe 03.12.2009 uhe 2010 Workshop Workshop Fraunhofer IAIS St. Augustin 21.01.2010
APIs • API is stable since 0.5M2 • Processing Service API (for Integrators) • Data Connecter API (for Integrators) • Monitoring and Performance Counter API (is based on JMX) All APIs are provisional and are expected to evolve based on community feedback Extensibility and easy integration of new components is the key aspect of SMILA
Architectural Issues • SMILA consists of several different parts – Data Connectors / Connectivity – Processing – Search – Persistence Each of these parts contains several bundles, but each can be started on different host and they communicate with an embedded JMS Queue (Apache ActiveMQ) • The use of declarative OSGi Services wherever possible – OSGI Services are used as API (interface definition) – SMILA contains several implementations for these services – Services can be replaced by integrators/customers
Tool Usability • Management of SMILA components – SMILA contains a small JMX client (remote) • JConsole can also be used for fully framework management and monitoring
End-of-Life • We plan to stay around for longer
Bugzilla
Standards • Attempt to base as much as possible using OSGi standards • OSGI declarative services for the internal communication • Internal distributed communication uses JMS • BPEL for the definition and execution of workflows • XML / XML schema for configuration files (including validation)
UI Usability • SMILA runs in an OSGi Runtime (Equinox) and provides the extension of the OSGi console with a dozen of commands for operating crawlers and agents.
Schedule • SMILA Version 0.5 M1 – This milestone was published (as announced!) on March 23rd 2009. – Basic architecture settled and implemented – Simple search application available – Diverse connectors (File System, Web, DB) – Incremental update – Conception and implementation of search APIs – Implementation of the security concept – Ontology Service (introduction of semantic layer) • SMILA Version 0.5 M2 – This milestone was published (as announced!) on May 29th 2009. – Simple compound management – More connectors (RSS & Atom) • SMILA Version 0.5 M3 – This milestone was published on (as announced!) July 31st 2009. – Bulk operations (increasing the data throughput) – More connectors (XML, Job file) – Alternative binary storage implementation (based on JPA)
Communities • Committers • Igor Novakovic (Empolis GmbH): co-lead • Sebastian Voigt (brox IT-Solutions GmbH): co-lead • Jürgen Schumacher (Empolis GmbH): committer • Daniel Stucky (Empolis GmbH): committer • Andreas Weber (Empolis GmbH): committer • Thomas Menzel (brox IT-Solutions GmbH): committer • Georg Schmidt (Schmidt Softwaretechnik GmbH): committer • Leo Sauermann (DFKI GmbH): committer • Contributors • Active users from several companies / individuals • A dozen of patches have been contributed • Users / Adopters • Currently there are several commercial products being developed that depend or are based on SMILA
Communities cont'd • Communication traffic • Newsgroup traffic is low, because we mostly use the mailing lists: smila-user@eclipse.org and mainly smila-dev@eclipse.org • Blogs • http://blogs.eccenca.com/news/smila/ • Blog Posts about SMILA • http://kthoms.wordpress.com/2010/02/26/prototyping-a- configuration-toolkit-for-eclipse-smila-with-xtext/ • Open and transparent planning (using the dedicated project page) • Development has been driven by the two companies (brox IT-Solutions and Empolis) • Developer mailing list became more active, but there is still room for improvement
IP-Issues • IP log: • http://www.eclipse.org/projects/ip_log.php?projectid=rt.smila • Wherever possible orbit bundles (17) were used • To provide a wide range of functionality and not to reinvent the wheel we utilized a lots of 3 rd party components and therefore have submitted 101 CQs. Main 3 rd party technologies are: – ActiveMQ 5.2 – Sesame 2.2.4 – Tomcat 6.0.18 – Lucene 2.3.2 • Issue with Oracle Berkeley DB XML: – The first intention was to use Oracle Berkeley DB XML for our metadata repository, but since this would result in a massive impact on the IP process we introduced an abstract persistence layer and used Derby 10.5.1.1. instead as a one of the possible implementation of the metadata repository.
Project Plan • SMILA Version 0.7 - Release 0.7 – This release is planed for March, 17th 2010. – Web Service API support – Solr integration (access to Apache Solr' REST API) – Completed IP process • SMILA Version 0.8 – This milestone is tentative planed for June 25th 2010. – Cluster readiness (remote communication between components / REST API) – General configuration management support • SMILA Version 0.9 – This milestone is tentative planed for September, 30th 2010. – Aperture integration – BPEL editor extensions – Concept for debugging of BPEL processes – Completed IP process
