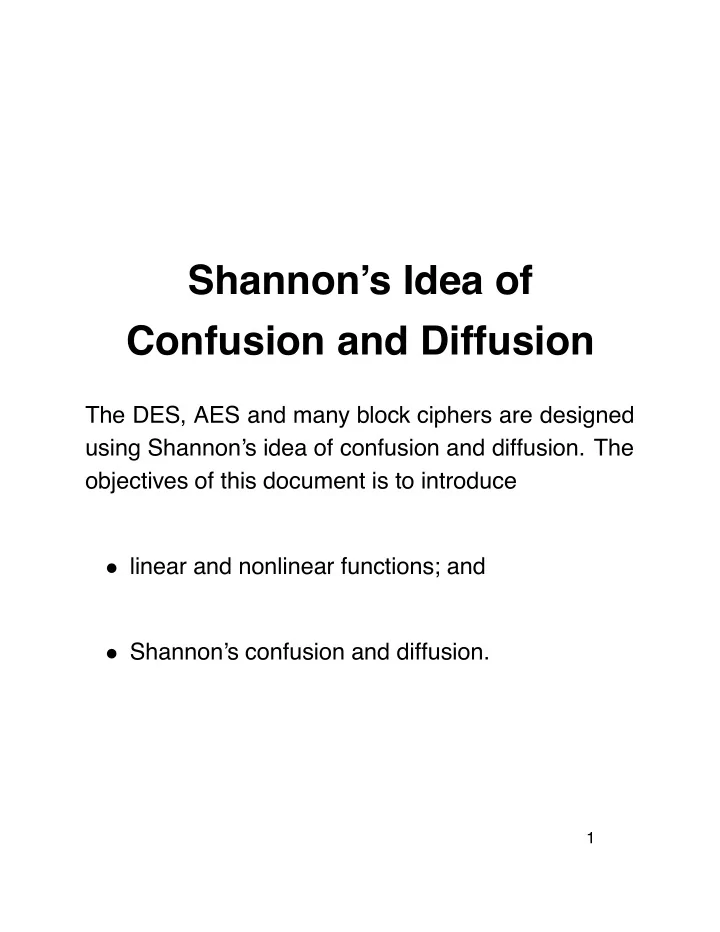

Shannon’s Idea of Confusion and Diffusion The DES, AES and many block ciphers are designed using Shannon’s idea of confusion and diffusion. The objectives of this document is to introduce • linear and nonlinear functions; and • Shannon’s confusion and diffusion. 1

Linear Functions Notation: Let F 2 denote the set { 0 , 1 } and let F n 2 = { ( x 1 , x 2 , · · · , x n ) | x i ∈ F 2 } . Here F n 2 is associated with the bitwise exclusive-or operation, denoted + . Linear functions: Let f be a function from F n 2 to F m 2 , where n and m are integers. f is called linear if f ( x + y ) = f ( x ) + f ( y ) for all x, y ∈ F n 2 . Example: Let f ( x ) = x 1 + x 2 + · · · + x n , where x = ( x 1 , · · · , x n ) ∈ F n 2 . Then f is a linear function from F n 2 to F 2 . Note that + denotes the modulo-2 addition. 2

Examples of Linear Functions Linear permutations: Let P be a permutation of the set { 1 , · · · , n } . De fi ne a function L P from F n 2 to itself by L P (( x 1 , x 2 , · · · , x n )) = ( x P (1) , x P (2) , · · · , x P ( n ) ) for any x = ( x 1 , x 2 , · · · , x n ) ∈ F n . Lemma: L P is linear with respect to the bitwise exclusive- or. Conclusion: Such a linear function is used in both DES and AES. 3

Examples of Linear Functions Linear function by circular shift: Let i be any posi- tive integer. De fi ne a function LS i from F n 2 to F n 2 by LS i (( x 0 , x 1 , · · · , x n − 1 )) = ( x (0 − i ) mod n , x (1 − i ) mod n , · · · , x ( n − 1 − i ) mod n ) for any x = ( x 0 , x 1 , · · · , x n − 1 ) ∈ F n . Conclusion: LS i is linear with respect to the bitwise exclusive-or. 4

Nonlinear Functions De fi nition Let f be a function from F n 2 to F m 2 , where n and m are positive integers. f is called nonlinear if f ( x + y ) � = f ( x ) + f ( y ) for at least one pair of x, y ∈ F n 2 . Example: Let f ( x ) = x 1 x 2 + x 2 + · · · + x n , where x = ( x 1 , · · · , x n ) ∈ F n 2 . Note that + denotes the modulo-2 addition. 5

Nonlinearity of S-Boxes The S-box in AES: A function from GF( 2 8 ) to GF( 2 8 ) de fi ned by S ( x ) = x 2 8 − 2 The nonlinearity is measured by |{ x ∈ GF (2 8 ) : S ( x + a ) − S ( x ) = b }| P S = max 0 � = a ∈ GF (28) , b ∈ GF (28) Comment: The smaller the P S , the higher the nonlin- earity of S . Remark: S is highly nonlinear. 6

Diffusion Requirement Diffusion: Each plaintext block bit or key bit affects many bits of the ciphertext block. x plaintext k E (x) k key y ciphertext Remark: Linear functions are responsible for confu- sion. 7

Diffusion Requirement Diffusion: Each plaintext block bit or key bit affects many bits of the ciphertext block. Example: Suppose that x , y and k all have 8 bits. If = x 1 + x 2 + x 3 + x 4 + k 1 + k 2 + k 3 + k 4 y 1 = x 2 + x 3 + x 4 + x 5 + k 2 + k 3 + k 4 + k 5 y 2 = x 3 + x 4 + x 5 + x 6 + k 3 + k 4 + k 5 + k 6 y 3 = x 4 + x 5 + x 6 + x 7 + k 4 + k 5 + k 6 + k 7 y 4 = x 5 + x 6 + x 7 + x 8 + k 5 + k 6 + k 7 + k 8 y 5 = x 6 + x 7 + x 8 + x 1 + k 6 + k 7 + k 8 + k 1 y 6 = x 7 + x 8 + x 1 + x 2 + k 7 + k 8 + k 1 + k 2 y 7 = x 8 + x 1 + x 2 + x 3 + k 8 + k 1 + k 2 + k 3 y 8 then it has very good diffusion, because each plain- text bit or key bit affects half of the bits in the output block y . 8

Confusion Requirement Confusion: Each bit of the ciphertext block has highly nonlinear relations with the plaintext block bits and the key bits. x plaintext k E (x) k key y ciphertext Remark: Nonlinear functions are responsible for con- fusion. 9

Confusion Requirement Confusion: Each bit of the ciphertext block has highly nonlinear relations with the plaintext block bits and the key bits. Example: Suppose that x , y and k all have 8 bits. If = x 1 + x 2 + x 3 + x 4 + k 1 + k 2 + k 3 + k 4 y 1 = x 2 + x 3 + x 4 + x 5 + k 2 + k 3 + k 4 + k 5 y 2 = x 3 + x 4 + x 5 + x 6 + k 3 + k 4 + k 5 + k 6 y 3 = x 4 + x 5 + x 6 + x 7 + k 4 + k 5 + k 6 + k 7 y 4 = x 5 + x 6 + x 7 + x 8 + k 5 + k 6 + k 7 + k 8 y 5 = x 6 + x 7 + x 8 + x 1 + k 6 + k 7 + k 8 + k 1 y 6 = x 7 + x 8 + x 1 + x 2 + k 7 + k 8 + k 1 + k 2 y 7 = x 8 + x 1 + x 2 + x 3 + k 8 + k 1 + k 2 + k 3 y 8 then it has bad confusion, as they are linear relations. 10

Shannon’s Suggestion The encryption and decryption functions of a cipher should have both good confusion and diffusion of the message block bits and secret key bits. 11
