Service Oriented Architectures for R&E networks Network Mashups - PowerPoint PPT Presentation

Service Oriented Architectures for R&E networks Network Mashups Bill St. Arnaud CANARIE Inc www.canarie.ca Bill.st.arnaud@canarie.ca Impact of e-Science

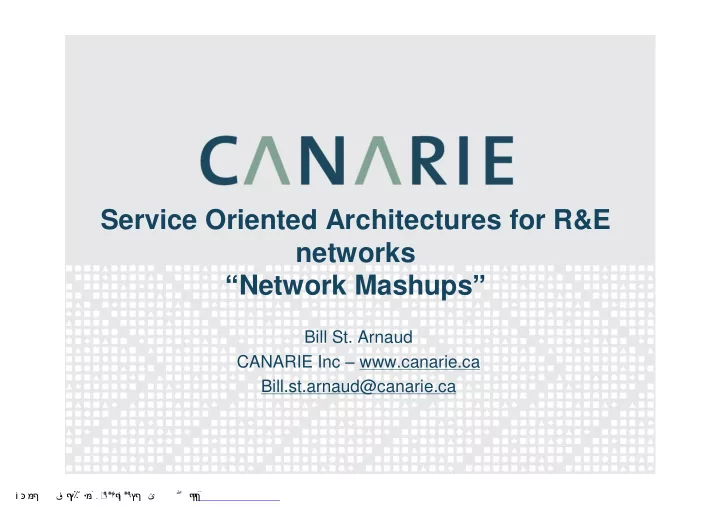

  1. Service Oriented Architectures for R&E networks “ Network Mashups ” Bill St. Arnaud CANARIE Inc – www.canarie.ca Bill.st.arnaud@canarie.ca וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףף �َ�َ�

  2. Impact of e-Science and Grids on Networks > E-science and grid application have bandwidth needs far exceed that of production IP networks > Most entail global collaboration and linkages > Canadian astronomy – 100 Terabytes per month > TRIUMF High energy physics – 5 Gbps continuous to CERN > Canada Light Source synchrotron – 1 to 2 Gbps per beam line > Ultra video conferencing McGill – 3.5 Gbps > Hyugens-Cassini eVLBI – 1Gbps > Merlin UK eVLBI – 320 GBps וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףף�َ�َ�

  3. CA*net 4 Network New 72 channel ROADM 5 x 10 Gbps וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףף�َ�َ�

  4. Today ’ s hierarchical IP network Other national networks National or Pan-Nationl IP Network NREN A NREN C NREN B NREN D Regional University וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףף�َ�َ�

  5. Tomorrow ’ s peer to peer IP network World World National DWDM Network World Child Lightpaths NREN B NREN A NREN C NREN D Child Lightpaths Regional University Server וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףף�َ�َ�

  6. Creation of application VPNs See next slide for more details Common DWDM substrate University Dept High Energy Physics Network CERN Commodity Internet Research University University Network Bio-informatics Network University University eVLBI Network Lab וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףף�َ�َ�

  7. Campus view Campus DWDM University Global Physics Network Internet Physics Department NREN Main campus Network Health Border Firewall Network Router Global University Hospital eVLBI Network Radio Telescope וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףף�َ�َ�

  8. Multi-domain Multi-Domain APN Partitioned Node Pass Through Node Multi-Domain APN Domain A Domain B Domain C וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףף�َ�َ�

  9. The big picture Integrative Science E-Science or E-Research Cyber-infrastructure SOA: (web services, workflow, security, etc) Networks Grids HPC Databases Instruments וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףף�َ�َ�

  10. More Diversity, New Devices, New Applications Picture of earthquake and bridge Sensors Personalized Medicine Picture of digital sky Wireless networks Knowledge Instruments from Data Source: Larry Smarr?? וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףף�َ�َ�

  11. Conclusions > SOA & Cyber-Infrastructure will fundamentally transform science and IT > Better get prepared and learn as much as possible and learn about CI and SOA – Web services – Resource discovery and consumption – Publishing services – Workflow and orchestration – SOA platforms – OGSA, .NET,. Websphere > Commercialization potentials of integrative science and CI are significantly greater than with traditional science וֹכּמּף ףץ٪ّ٠מּَِ ٩٭۶ףוֹ٭٩ץף ێ ۖףףף�َ�َ�
