ROVIS Rosetta visualisation and (much) more Bjrn Grieger - PowerPoint PPT Presentation

Sep 07, 2022 •241 likes •396 views

Skeleton Plan Software Toolkit Demonstration ROVIS Rosetta visualisation and (much) more Bjrn Grieger Trajectories and Operations Simulations (T OS) Rosetta SGS Development ESA/ESAC, Madrid, Spain Rosetta Visualisation and Modelling

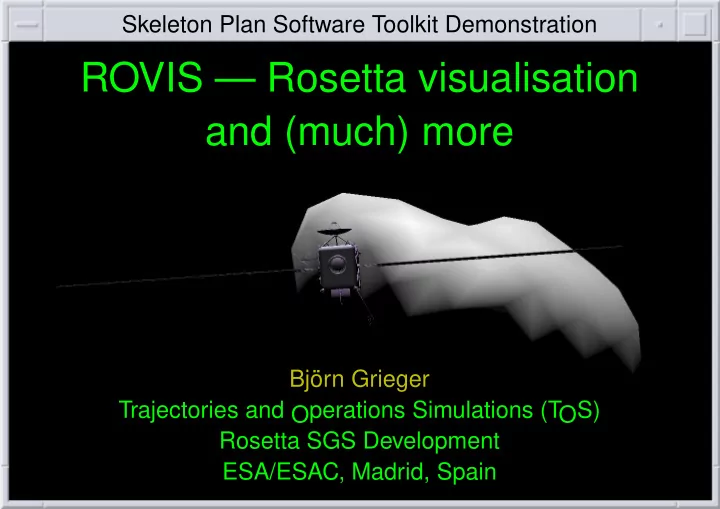

  1. Skeleton Plan Software Toolkit Demonstration ROVIS — Rosetta visualisation and (much) more Björn Grieger Trajectories and Operations Simulations (T OS) Rosetta SGS Development ESA/ESAC, Madrid, Spain

  2. Rosetta Visualisation and Modelling Ephemeris and Comet and Observation instrument kernels spacecraft models definitions Orbit kernel ATPR file ❄ ❄ ❄ ❄ ❄ ROVIS OpenDX ❄ ❄ ❄ OEM file Orbit kernel Attitude kernel ❄ ❄ ❄ ✲ ✛ Opportunity ✲ Visualisations ✛ 3dtool windows (Stefan)

  3. http:// omsim.esa .esa.int/rossim/ Opportunity window example bgrieger/timeline.html roviz_2012-04-03.mpg → →

  4. Skeleton Plan Workflow Liaison MAPPS scientists ROVIS Science 3dtool Working Team (Stefan)

  5. Skeleton Plan Workflow Liaison MAPPS scientists OEM file ✻ ROVIS ❄ Orbit kernel Science 3dtool Working Team (Stefan)

  6. Skeleton Plan Workflow Liaison ✲ MAPPS scientists OEM file ✻ ROVIS ❄ Orbit kernel Science 3dtool Working Team (Stefan)

  7. Skeleton Plan Workflow Liaison ✲ MAPPS scientists ✻ OEM file ✻ ROVIS ❄ Orbit kernel Science 3dtool Working Team (Stefan)

  8. Skeleton Plan Workflow ✲ ✛ Liaison ✲ MAPPS scientists ✻ OEM file ✻ ROVIS ❄ Orbit kernel Science 3dtool Working Team (Stefan)

  9. Skeleton Plan Workflow ✲ ✛ Liaison ✲ MAPPS scientists ✻ ❄ OEM file ATPR file ✻ ❄ ROVIS ❄ Orbit kernel Science 3dtool Working Team (Stefan)

  10. Skeleton Plan Workflow ✲ ✛ Liaison ✲ MAPPS scientists ✻ ❄ OEM file ATPR file ✻ ❄ ROVIS ❄ ❄ Orbit kernel Attitude kernel Science 3dtool Working Team (Stefan)

  11. Skeleton Plan Workflow ✲ ✛ Liaison ✲ MAPPS scientists ✻ ❄ OEM file ATPR file ✻ ❄ ROVIS ❄ ❄ Orbit kernel Attitude kernel ❄ ✲ ✛ Science 3dtool Working Team (Stefan)

  12. Skeleton Plan Workflow ✲ ✛ Liaison ✲ MAPPS scientists ✻ ❄ OEM file ATPR file ✻ ❄ ROVIS ❄ ❄ Orbit kernel Attitude kernel ❄ ✲ ✛ ✲ Science ✛ 3dtool Working Team (Stefan)

  13. Skeleton Plan Workflow ✲ ✛ Liaison ✲ MAPPS scientists ✻ ❄ OEM file ATPR file ✻ ❄ ROVIS ❄ ❄ Orbit kernel Attitude kernel ❄ ❄ ✲ ✛ ✲ Science ✛ 3dtool Working Team (Stefan) ✻

  14. roviz_2012-01-03.mpg Visualisation example →
