Persistence Semantics for Weak Memory Integrating Epoch Persistency - PowerPoint PPT Presentation

Feb 13, 2023 •328 likes •1.21k views

Persistence Semantics for Weak Memory Integrating Epoch Persistency with the TSO Memory Model Azalea Raad Viktor Vafeiadis Max Planck Institute for Software Systems (MPI-SWS) Thursday 8 November OOPSLA 2018 Boston, USA azalea@mpi-sws.org

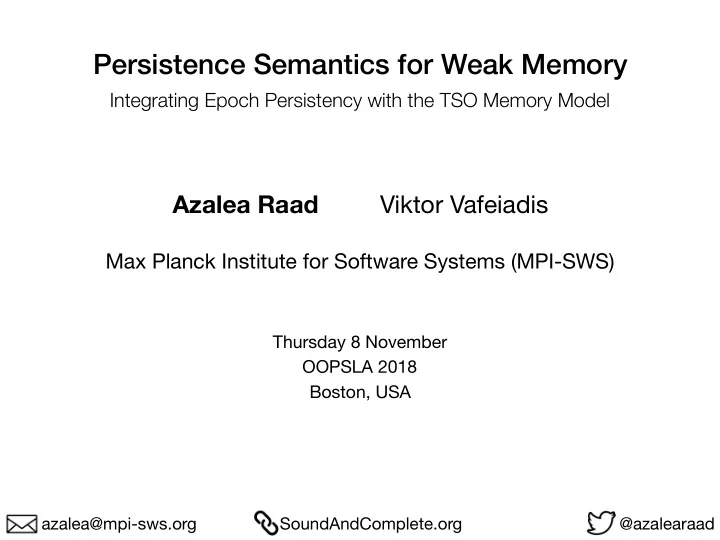

  1. Persistence Semantics for Weak Memory Integrating Epoch Persistency with the TSO Memory Model Azalea Raad Viktor Vafeiadis Max Planck Institute for Software Systems (MPI-SWS) Thursday 8 November OOPSLA 2018 Boston, USA azalea@mpi-sws.org SoundAndComplete.org @azalearaad

  2. History Difficulty 😋 time Sequential

  3. History Difficulty 😑 😋 time SC Sequential

  4. History Difficulty ☹ 😑 😋 time SC WMC Sequential

  5. History Difficulty 😤 ☹ 😑 😋 time SC WMC Persistent Sequential WMC

  6. What is Persistent Memory? Volatile memory // x = 0 x := 1 // x = 1 // x = v : reading x yields v � 3

  7. What is Persistent Memory? Volatile memory // x = 0 x := 1 // x = 1 // no recovery // x = 0 // x = v : reading x yields v � 3

  8. What is Persistent Memory? Volatile memory Persistent memory // x = 0 // x = 0 x := 1 x := 1 // x = 1 // x = 1 // recovery routine // no recovery // x = 0 OR x = 1 // x = 0 // x = v : reading x yields v � 3

  9. What is Persistent Memory? Volatile memory Persistent memory // x = 0 // x = 0 x := 1 x := 1 // x = 1 // x = 1 // recovery routine // no recovery // x = 0 OR x = 1 // x = 0 persists are asynchronous (buffered): may not persist immediately // x = v : reading x yields v � 3

  10. (Sequential) Hardware

  11. (Sequential) Hardware CPU (Volatile) Memory

  12. (Sequential) Hardware CPU x:=1 : adds x:=1 to memory (Volatile) Memory

  13. (Sequential) Hardware CPU x:=1 : adds x:=1 to memory a:=x : reads x from memory (Volatile) Memory

  14. (Sequential) Hardware CPU x:=1 : adds x:=1 to memory a:=x : reads x from memory memory lost (Volatile) Memory

  15. (Sequential) Hardware CPU x:=1 : adds x:=1 to memory a:=x : reads x from memory memory lost (Volatile) Memory CPU Persistence Buffer (Persistent) Memory

  16. (Sequential) Hardware CPU x:=1 : adds x:=1 to memory a:=x : reads x from memory memory lost (Volatile) Memory CPU x:=1 : adds x:=1 to p-bu ff er Persistence Buffer (Persistent) Memory

  17. (Sequential) Hardware CPU x:=1 : adds x:=1 to memory a:=x : reads x from memory memory lost (Volatile) Memory CPU x:=1 : adds x:=1 to p-bu ff er a:=x : if p-bu ff er contains x , reads latest entry else reads from memory Persistence Buffer (Persistent) Memory

  18. (Sequential) Hardware CPU x:=1 : adds x:=1 to memory a:=x : reads x from memory memory lost (Volatile) Memory CPU x:=1 : adds x:=1 to p-bu ff er a:=x : if p-bu ff er contains x , reads latest entry else reads from memory Persistence Buffer p-bu ff er lost; memory retained (Persistent) Memory

  19. (Sequential) Hardware CPU x:=1 : adds x:=1 to memory a:=x : reads x from memory memory lost (Volatile) Memory CPU x:=1 : adds x:=1 to p-bu ff er a:=x : if p-bu ff er contains x , reads latest entry else reads from memory Persistence Buffer p-bu ff er lost; memory retained unbu ff er* : p-bu ff er to memory (Persistent) Memory * at non-deterministic times

  20. What is Memory Persistency Model? • Memory consistency model describes:
 the order writes are made visible to other threads
 e.g. SC, TSO, …

  21. What is Memory Persistency Model? • Memory consistency model describes:
 the order writes are made visible to other threads
 e.g. SC, TSO, … • Memory persistency model describes:
 the order writes are persisted to memory
 e.g. Epoch Persistency

  22. What is Memory Persistency Model? • Memory consistency model describes:
 the order writes are made visible to other threads
 Problem e.g. SC, TSO, … Formal Epoch Persistency Model for Mainstream Hardware ( Weak Memory Models) • Memory persistency model describes:
 the order writes are persisted to memory
 e.g. Epoch Persistency

  23. What Can Go Wrong? // x=0;y=0 x := 1; y := 1; // recovery routine // x=0;y=0 OR x=1;y=1 OR x=1;y=0 OR x=0;y=1 � 6

  24. What Can Go Wrong? // x=0;y=0 x := 1; y := 1; // recovery routine // x=0;y=0 OR x=1;y=1 OR x=1;y=0 OR x=0;y=1 !! Writes may persist out of order � 6

  25. What Can Go Wrong? // x=0;y=0 x := 1; y := 1; // recovery routine // x=0;y=0 OR x=1;y=1 OR x=1;y=0 OR x=0;y=1 !! Writes may persist out of order ☛ persistent fence pfence � 6

  26. Persistent Fence // x=0;y=0 x := 1; ☛ pfence; y := 1; // recovery routine // x=0;y=0 OR x=1;y=1 OR x=1;y=0 OR x=0;y=1 � 7

  27. Persistent Fence x := 1; a y := 2; b x := 3; c pfence; z := 4; d � 8

  28. Persistent Fence • writes on same locations persist in execution order x := 1; a persists before a c y := 2; b x := 3; c pfence; z := 4; d � 8

  29. Persistent Fence • writes on same locations persist in execution order • writes on di ff erent locations are unordered x := 1; a persists before a c y := 2; b may persist in any order a b x := 3; c pfence; z := 4; d � 8

  30. Persistent Fence • writes on same locations persist in execution order • writes on di ff erent locations are unordered • pfence adds a new epoch x := 1; a persists before a c y := 2; b epoch 1 may persist in any order a b x := 3; c pfence; z := 4; d epoch 2 � 8

  31. Persistent Fence • writes on same locations persist in execution order • writes on di ff erent locations are unordered • pfence adds a new epoch • writes persist in epoch order x := 1; a persists before a c y := 2; b epoch 1 may persist in any order a b x := 3; c pfence; persist before a b c d z := 4; d epoch 2 � 8

  32. What Can Go Wrong (Continued)? // x=0;y=0 x := 1; asynchronous pfence; (buffered) y := 1; // recovery routine // x=0;y=0 OR x=1;y=1 OR x=1;y=0 !! Execution continues ahead of persistence � 9

  33. What Can Go Wrong (Continued)? // x=0;y=0 x := 1; asynchronous pfence; (buffered) y := 1; // recovery routine // x=0;y=0 OR x=1;y=1 OR x=1;y=0 !! Execution continues ahead of persistence ☛ persistent sync psync � 9

  34. What Can Go Wrong (Continued)? // x=0;y=0 x := 1; asynchronous pfence; (buffered) y := 1; // recovery routine // x=0;y=0 OR x=1;y=1 OR x=1;y=0 !! Execution continues ahead of persistence ☛ persistent sync psync C1; psync; C2 • same persist-ordering as pfence • C2 executed only when all C1 writes have persisted � 9

  35. Persistent Sync // x=0;y=0 x := 1; ☛ psync; y := 1; // recovery routine // x=0;y=0 OR x=1;y=1 OR x=1;y=0 !! Execution continues ahead of persistence ☛ persistent sync psync C1; psync; C2 • same persist-ordering as pfence • C2 executed only when all C1 writes have persisted � 10

  36. (Sequential) Hardware x:=1 : adds x:=1 to p-bu ff er CPU a:=x : if p-bu ff er contains x , reads latest entry epoch n else reads from memory pfence . . . p-bu ff er lost; memory retained pfence epoch 2 pfence epoch 1 (Persistent) Memory � 11

  37. (Sequential) Hardware x:=1 : adds x:=1 to p-bu ff er CPU a:=x : if p-bu ff er contains x , reads latest entry epoch n else reads from memory pfence . . . p-bu ff er lost; memory retained pfence epoch 2 pfence unbu ff er* : p-bu ff er to memory (in epoch order) epoch 1 (Persistent) Memory * at non-deterministic times � 11

  38. (Sequential) Hardware x:=1 : adds x:=1 to p-bu ff er CPU a:=x : if p-bu ff er contains x , reads latest entry epoch n else reads from memory pfence . . . p-bu ff er lost; memory retained pfence epoch 2 pfence unbu ff er* : p-bu ff er to memory (in epoch order) epoch 1 pfence : introduces a new epoch in p-bu ff er (Persistent) Memory * at non-deterministic times � 11

  39. (Sequential) Hardware x:=1 : adds x:=1 to p-bu ff er CPU a:=x : if p-bu ff er contains x , reads latest entry epoch n else reads from memory pfence . . . p-bu ff er lost; memory retained pfence epoch 2 pfence unbu ff er* : p-bu ff er to memory (in epoch order) epoch 1 pfence : introduces a new epoch in p-bu ff er (Persistent) Memory psync : flushes the entire p-bu ff er to memory * at non-deterministic times � 11

  40. What about Concurrency? … TSO POWER ARMv8 � 12

  41. What about Concurrency? … TSO POWER ARMv8 � 12

  42. Contributions � 13

  43. Contributions • PTSO: First formal epoch persistency semantics under
 mainstream hardware ‣ Operational model ‣ Declarative model ‣ Equivalence of the two models � 13

  44. Contributions • PTSO: First formal epoch persistency semantics under
 mainstream hardware ‣ Operational model ‣ Declarative model ‣ Equivalence of the two models � 13

  45. Contributions • PTSO: First formal epoch persistency semantics under
 mainstream hardware ‣ Operational model ‣ Declarative model ‣ Equivalence of the two models • Verifying programs under PTSO ‣ PTSO programming pattern ‣ Correctness condition: persistent linearisability ‣ Verified several examples under PTSO � 13

  46. Total Store Ordering (TSO) � 14

  47. Total Store Ordering (TSO) Thread1 Thread2 Buffer Buffer (Volatile) Memory � 14

  48. Total Store Ordering (TSO) Thread1 Thread2 x = 0; y = 0; Thread1 Thread2 ☛ ☛ x := 1; y := 1; a := y; c := x; Store Bu ff ering (SB) � 14

  49. Total Store Ordering (TSO) Thread1 Thread2 x = 1 x = 0; y = 0; Thread1 Thread2 ☛ x := 1; y := 1; ☛ a := y; c := x; Store Bu ff ering (SB) � 14
