Octopus V3 Michel Hevinga Oscar Kuiken Peter Schakel Remco Terol - PowerPoint PPT Presentation

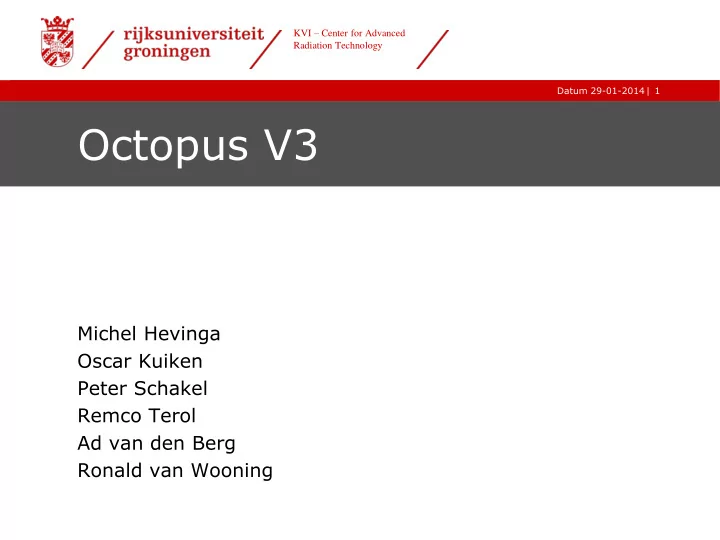

kernfysisch versneller instituut KVI Center for Advanced bestuur Radiation Technology Datum 15-01-2014 | 1 Datum 29-01-2014 Octopus V3 Michel Hevinga Oscar Kuiken Peter Schakel Remco Terol Ad van den Berg Ronald van Wooning


  1. kernfysisch versneller instituut KVI – Center for Advanced bestuur Radiation Technology Datum 15-01-2014 | 1 Datum 29-01-2014 Octopus V3 Michel Hevinga Oscar Kuiken Peter Schakel Remco Terol Ad van den Berg Ronald van Wooning

  2. kernfysisch versneller instituut KVI – Center for Advanced bestuur Radiation Technology Datum 16-12-2013 | 2 Datum 15-01-2014 Datum 29-01-2014 Status › 7 boards produced and tested, OK › agreement with sub contractor Neways for production 50 + 635 at about 75 € pp › issues:  pins for the connectors to the PMTs have two different hole sizes; need to adapt the PCB

  3. kernfysisch versneller instituut bestuur Datum 16-12-2013 | 3 Datum 29-01-2014 Stress analysis › Excel sheet as draft submitted to Stefane › At this moment according to the current BOM › Need more info:  voltage range from the power board  PMT specs

  4. kernfysisch versneller instituut bestuur Datum 16-12-2013 | 4 Datum 29-01-2014 Planning 50 pre-serie
