Neutron Imaging in research and Industry Yves Brchet HC Atomic - PowerPoint PPT Presentation

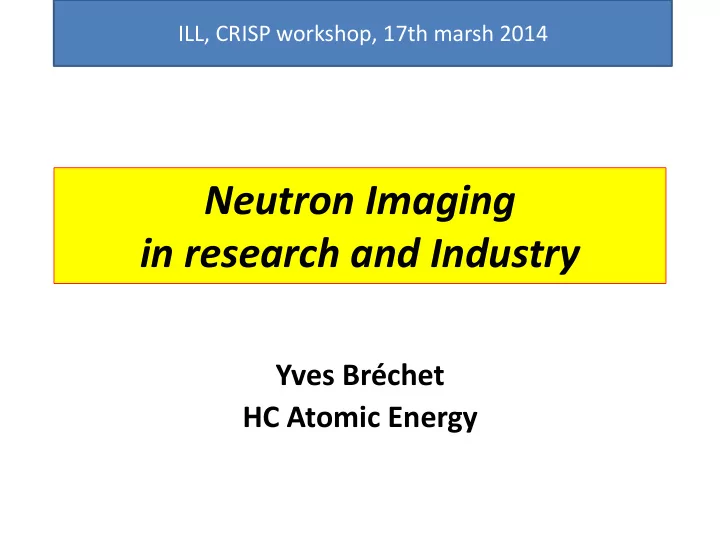

ILL, CRISP workshop, 17th marsh 2014 Neutron Imaging in research and Industry Yves Brchet HC Atomic Energy Assets (1) Grenoble speciality ( both neutrons and X rays large instruments) Direct space direct interpretation direct


  1. ILL, CRISP workshop, 17th marsh 2014 Neutron Imaging in research and Industry Yves Bréchet HC Atomic Energy

  2. Assets (1) • Grenoble speciality ( both neutrons and X rays large instruments) • Direct space  direct interpretation  direct artefacts • Mesoscale: 10 m m and above  Natural scales  Man made structures  Scale of damage events

  3. Asset (2) • Deep penetration  Non destructive analysis  Long range interation phenomena ( elastic stresses) • Sensitive to light elements

  4. Who may be interested? • Anybody interested in the elements with the largest cross section such as Li, H2, Cl…  Fuel cells , batteries… • Any body with events at the mesoscale =>cracks, voids, methanisation … • Anybody interested in fuid motion in situ => microfluidics, heat exchangers

  5. Fuel Cell

  6. Li Batteries

  7. Fuel injection in an explosion engine: dynamic neutron imaging

  8. Visualizing Soot and Ash in Diesel Particulate Filters C. Gruenzweig et al. (PSI)

  9. Soot sediments in vent pipe of air plane engine (accident investigation) I. Manke et al. (HZB)

  10. Hybrid and architectured materials X-Rays Neutrons

  11. If you could go to a better resolution … around 1 m m • Cavity nucleation in creep • Hydrides formation under stress in Zr • Fluid flow and boiling crisis • Cavitation process in diesel • Foamings of polymers and metals • Non destructive testing of glued assemblies • Distribution or organic and inorganic matter in structural biomaterials • …

  12. Food for thought …
